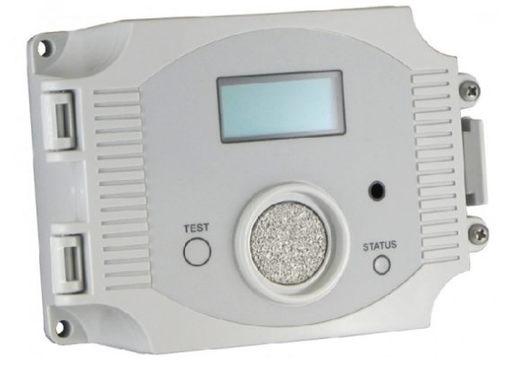

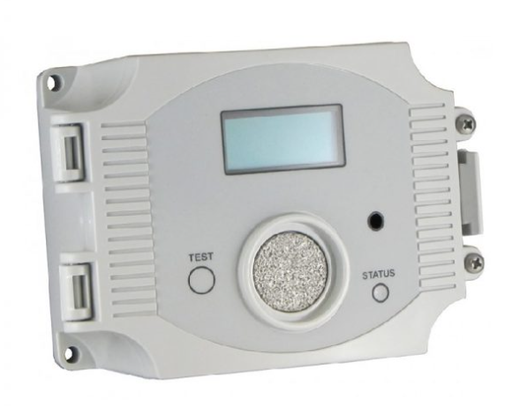

The advanced electrochemical sensor used in the CMD Series carbon monoxide detector ensures dependability and accuracy in even the most demanding situations. The typical product has an output that is powered by a two-wire loop. The device can optionally be configured with a Modbus communication system and/or an alarm relay that uses a three-wire sourcing mode.

    Features:

• BACnet or Modbus connection.

• Space or duct mount variants.

• Long-life electrochemical sensor.

• A range of analog outputs.

• LCD display.

• Optional relay outputs and audio alerts.

• Various analog outputs.

• Long-life electrochemical sensor.

    Specifications:

• Manufacturer Part Number - CMD5B1000-MOD

• Item Number - CMD5B1000-MOD

• Manufacturer - Greystone Energy Systems

• Product Series - CMD

• Family Series - Greystone Energy Systems HVAC Sensors, CMD Series

• Gas Type - Carbon Dioxide

• Application - Indoor

• Input - 24 VDC;24 VAC

• Output - 4~20 mA;Modbus

• Humidity Sensor - No

• Humidity Range    - 15 to 95% RH

• Temperature Sensor - No

• Temperature Range - -4~122 deg F

• Display    - None

• Override - No

• Set Point - No

• Approvals - CE

• RoHS Compliant - Yes

• Net Weight - 0.36 lbs

• Gross Weight - 0.495 lbs
