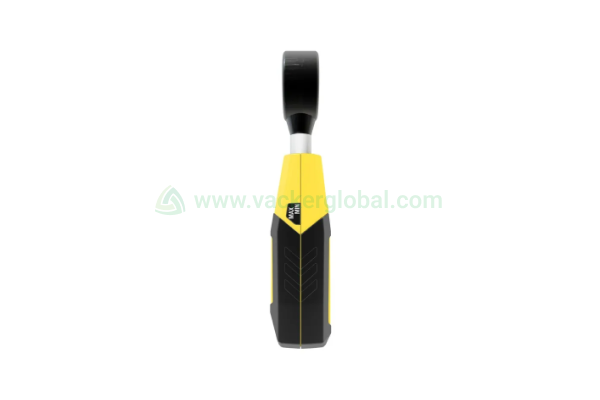

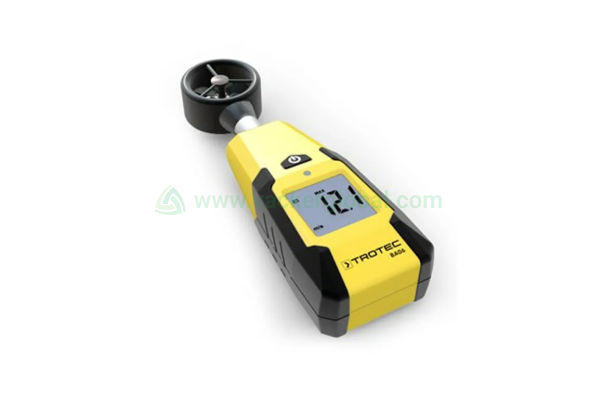

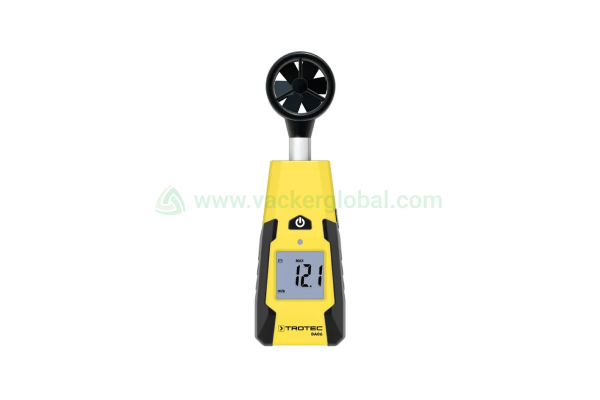

Vane anemometer, Model no. VAC- BA06
Measurement Range: -50 to +1850 °C
Accuracy: ± 3.0°C for -50 to 20°C
Resolution: 0.1°C
Battery: 9V
Weight: 350g
VSKU:
Vane anemometer to measure the flow rate of air or gases
The vane anemometer BA06 with magnetic vane is used to measure the flow rate measurement of wind, air or gases. The magnetic vane saves energy and increases battery life. It has an internal airflow rate and air volume flow sensor to measure the respective values. It is powered by a 9V battery. It is provided with a sensor-controlled LCD display with automatic illumination adjustment in poor light conditions. It has an auto power-off function. It has an easy one-hand mode operation. The anemometer has a weight of about 350 g.
Applications
The vane anemometer is used to measure volumetric flow measurement at ventilation outlets.
It measures flow velocity and volumetric flow.
It is used in the testing of incoming/outgoing air in controlled ventilation of living spaces.
It is used for flow measurement in ventilation grilles.
It is used for the regulation of ventilation systems.
It is used for the analysis of inlet and exhaust air for the design of ventilation systems.
It is used to measure the airflow inside buildings.
It is used to locate windows which are not airtight.
It is used to detect leakage in the ventilation system.
Volume flows of multiple ducts can be analysed, cross-checked and compared.
It is used to measure the cross-section of the duct.
It is used to examine the volume flow through multiple ducts to adjust the ventilation system.
It is ideal for yachtsmen, surfers or hang-gliders
Features
It is used for rapid flow rate measurement.
It can measure the flow rate of wind, air or gases.
It has an internal sensor to measure air velocity and volume.
It is easy to use and handle.
It has an optimum price-performance-ratio.
It has a maximum and average value display function.
It facilitates one-hand operation.
The magnetic vane saves energy and increases battery life.
The display lighting is sensor controlled.
The vane anemometer has an automatic power-off function.
A tripod socket is provided with the nanometer.
The infrared thermometer design abides to the practice-optimized German industrial design.
The wind speed measurements can be displayed in the nautical mile unit.
The display illumination is controlled by a sensor.
The display illumination is automatically adjusted in bad lighting conditions.
The measured air velocities can be determined in various units such as m/s, km/hr, ft/min, mph, knot.
The housing material of the vane anemometer is plastic.

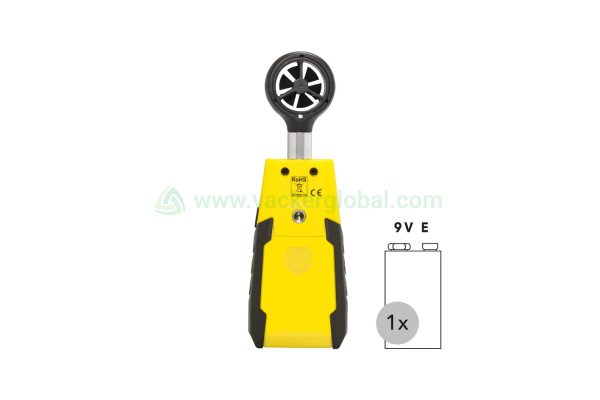

The anemometer is powered by a 9V battery.
Specifications
The minimum measuring range of airflow rate of the anemometer is 1.1 m/s.
The maximum measuring range of ai flow is 30 m/s.
The accuracy of the airflow rate is ± 3%.
The thermometer has an airflow rate resolution of 0.01m/s.
The measuring rate of anemometer is approximately 1measurement / second.
The maximum operating altitude is 2000m.
The minimum operating temperature of the vane anemometer is 0 °C
The maximum operating temperature of the vane anemometer is 50°C.
The minimum storage temperature is -10 °C.
The maximum storage temperature is 60°C.
It has a weight of 139g.
It has a dimension of 167 X 34 X 56 mm.
The housing material of the anemometer is plastic.
It has an illuminated LCD display.
It is powered by a 9V battery.
Internal sensors for airflow rate and air volume flow are available with the anemometer.
It can automatically power-off after approximately 15min of inactivity.
We supply these Vane anemometers to measure the wind speed by yachtsmen and surfers in the USA, UK, Germany, France, Netherlands, Spain, Switzerland, Sweden, and other European countries. Also, we supply these Vane anemometers to measure the cross-section of duct in the Middle East and other Asian countries including India, Pakistan, Afghanistan, Bangladesh, Singapore, etc.
Our African offices supply these vane anemometers for the regulation of ventilation systems across all African countries covering South Africa, Kenya, Nigeria, Tanzania, Rwanda, Djibouti, Morocco, Ghana, Ethiopia, Uganda, Morocco, Tunisia, Cameroon, Mauritius, Gabon, Seychelles, etc.
Our Middle East offices supply these Vane anemometers to measure the cross-section of ducts in the United Arab Emirates, Kingdom of Saudi Arabia, Qatar, Oman, Kuwait, Egypt, Lebanon, Bahrain, Libya, Iraq, Erbil, Jordan, etc.
