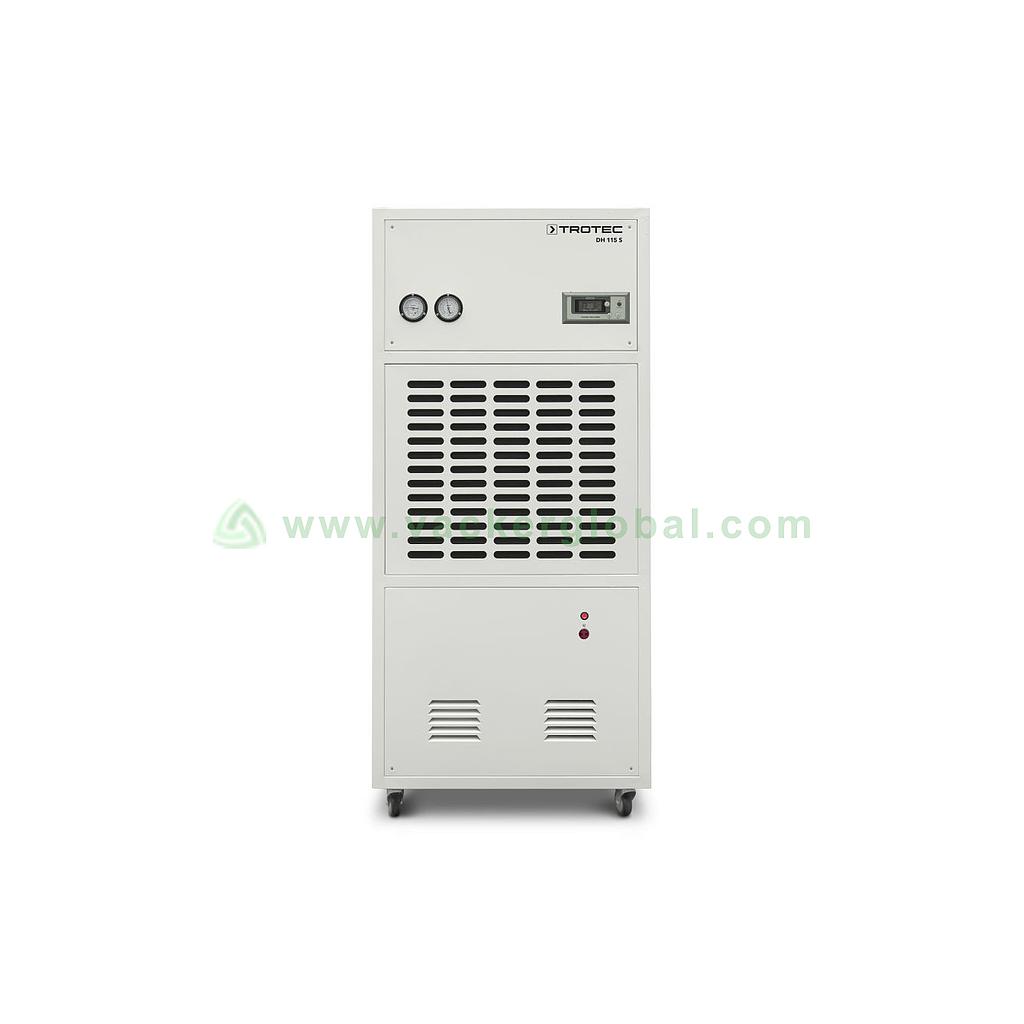

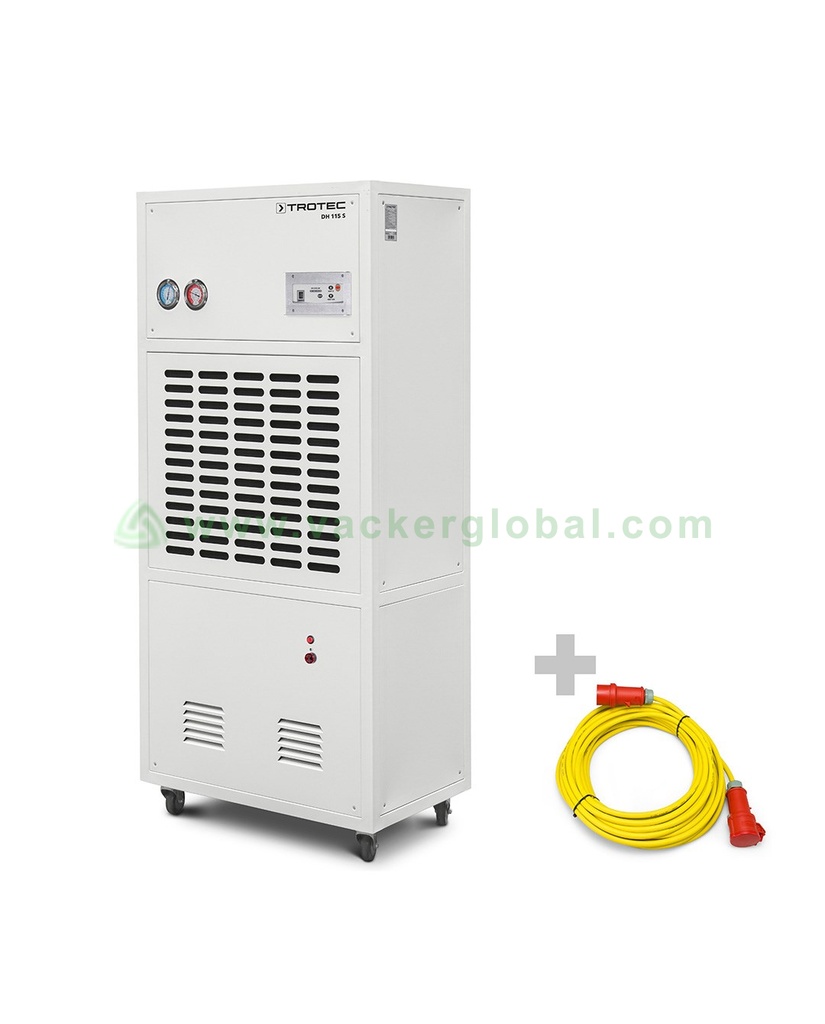

Industrial Condenser Dryer DH 115 S

4,807.12 USD 4,807.12 USD 4807.12 USD

16,815.80 AED

Add to Cart Buy Now

Industrial Condenser Dryer DH 115 S

Industrial Condenser Dryer DH 115 S
Dehumidification performance
At 20 °C / 60 % RH [l/24h] 140
At 30 °C / 80 % RH [l/24h] 245
Amount of air
Stage Max. [m³/h] 2,150
Operating range
Min. temperature [°C] 5
Max. temperature [°C] 35
Min. humidity [% r.F.] 30
Max. humidity [% r.F.] 90
Electrical values
Mains connection 400 V/50 Hz
Nominal current consumption [A] 9.1
Power input [kW max.] 4.9
Required current starting phase [A] 9.5
Recommended fusing [A] 25

VSKU: 1001000110

4,807.12 USD 4,807.12 USD 4807.12 USD

16,815.80 AED

This combination does not exist.

Add to Cart Buy Now

Category:

Industrial Dehumidifier

Description
Ratings and Reviews

Industrial Condenser Dryer DH 115 S

This typical industrial dryer dehumidifies up to 312 liters per day and is an especially cost-effective way to keep stored items dry and avoid corrosion and mold damage while carrying out industrial activities. The dryer has an inbuilt hot gas automated defrost that ensures effective dry keeping without stopping at predetermined intervals for defrosting when dehumidification ceases.

Due to the four-meter discharge head of the conventional condensate pump, condensate may be drained through the DH 115 S's exterior outlet across many storeys. The DH 115 S is equipped with electrical components that are modularly designed and water pipes that adhere to European standards.

Features

Dependable drier with a large dehumidification capacity
For common dry storage applications in production halls or warehouses, a particularly cost-effective solution is available.
Pump for condensation provided as standard.
For simple early problem identification during maintenance, pressure gauge indications
Modular refinement of water-containing equipment and electrical components to European standards

Applications

Using the DH-S standard series, you can affordably guard against moisture damage to stored products.
Production facilities may be affordably protected from moisture damage with the DH-S standard series.
The DH-S standard series protects building structures from moisture damage at a low cost.
Using the DH-S standard series, you can affordably guard against moisture damage to inventory.

Specifications

Dehumidification performance At 20 °C / 60 % RH [l/24h] 97
At 30 °C / 80 % RH [l/24h] 24
Air flow rate Level Max. [m³/h] 2,150
Sound values Distance 1 m [dB(A)] 70
Distance 3 m [dB(A)] 56
Dimensions Length (packaging excluded) [mm] 470
Width (packaging excluded) [mm] 775
Height (packaging excluded) [mm] 1,635
Weight (Packaging excluded) [kg] 150

Industrial Condenser Dryer DH 115 S

Features

Dependable drier with a large dehumidification capacity
For common dry storage applications in production halls or warehouses, a particularly cost-effective solution is available.
Pump for condensation provided as standard.
For simple early problem identification during maintenance, pressure gauge indications
Modular refinement of water-containing equipment and electrical components to European standards

Applications

Using the DH-S standard series, you can affordably guard against moisture damage to stored products.
Production facilities may be affordably protected from moisture damage with the DH-S standard series.
The DH-S standard series protects building structures from moisture damage at a low cost.
Using the DH-S standard series, you can affordably guard against moisture damage to inventory.

Specifications

Dehumidification performance At 20 °C / 60 % RH [l/24h] 97
At 30 °C / 80 % RH [l/24h] 24
Air flow rate Level Max. [m³/h] 2,150
Sound values Distance 1 m [dB(A)] 70
Distance 3 m [dB(A)] 56
Dimensions Length (packaging excluded) [mm] 470
Width (packaging excluded) [mm] 775
Height (packaging excluded) [mm] 1,635
Weight (Packaging excluded) [kg] 150
