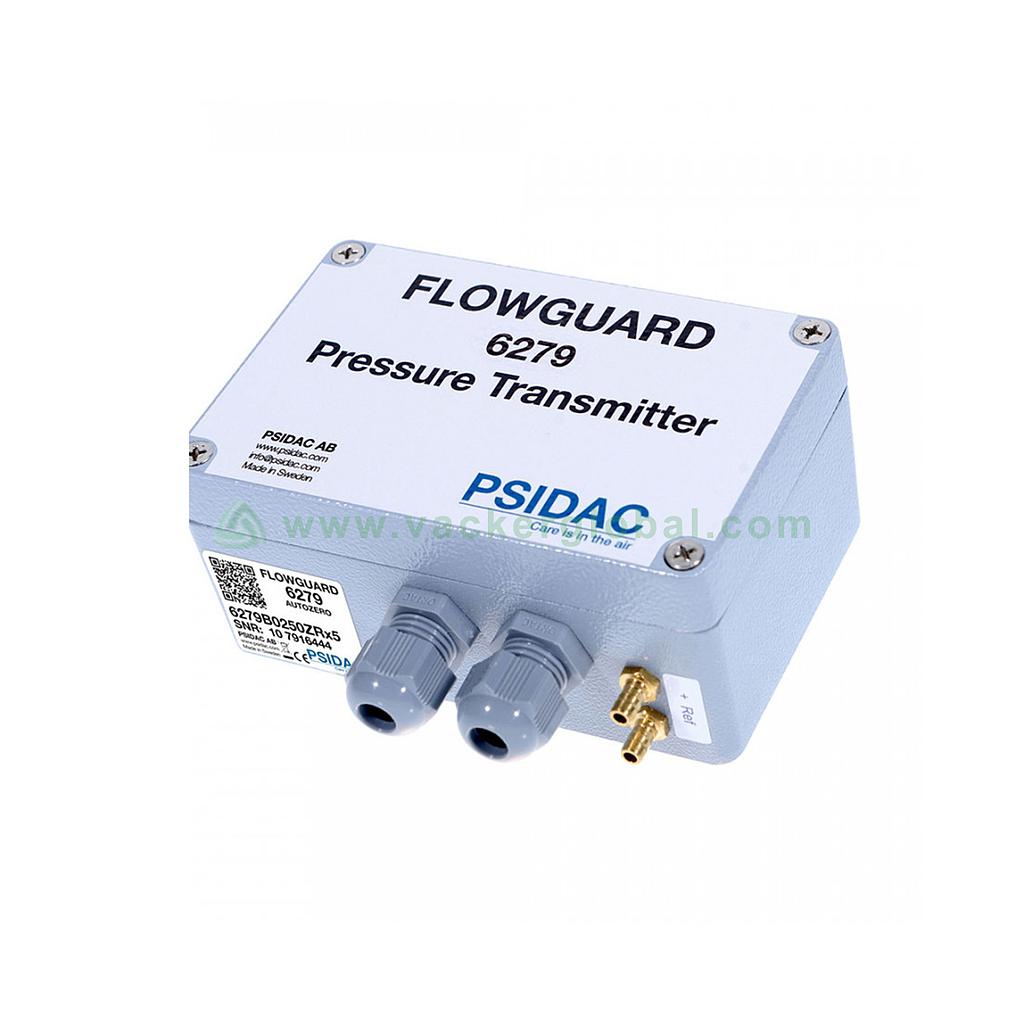

6279 AutoZero Pressure Transmitter

414.51 USD 414.51 USD 414.51 USD

1,450.00 AED

6279 AutoZero Pressure Transmitter

6279 AutoZero Pressure transmitter model no [VAC- 6279-autozero-pressure-transmitter]
6279_U_500: 0-500
6279_B_250: ± 250
6279_B_500: ± 500 Pa
6279_B_1250: ± 1250 Pa
6279_U_2500: 0-2500 Pa
Non linearity: ± 0,3Pa + 0,1% of reading, typical.
Stability: ± 0,2 % typ.(1 year) Typical
Time constant: 0.1 – 20 seconds
Output: 0-5, 1-5, 0-10, 1-10, 2-10 V 4-20mA, 0-20 mA
Output Range: Unit depending, select in steps
Resolution: 10 bit digital output
Supply: 18-24 V AC/DC, 50 mA
Temp range operation*: -10…50 °C (-14…122 °F)*
Humidity range: 0…95 % RH (non condensing)
Dimension: 125x90x60 mm
Weight: 530 g

Days
Hours
Mins
Secs
1

VSKU: 1008000023

414.51 USD 414.51 USD 414.51 USD

1,450.00 AED

    This combination does not exist.


    Add to Cart Buy Now

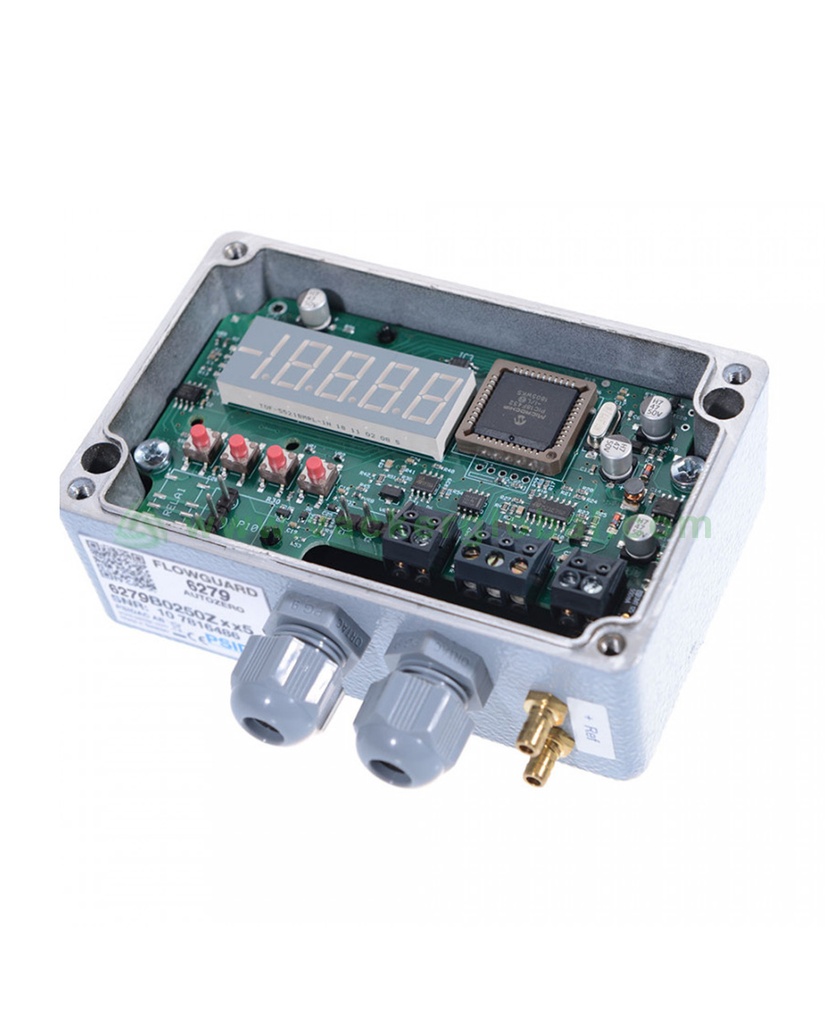

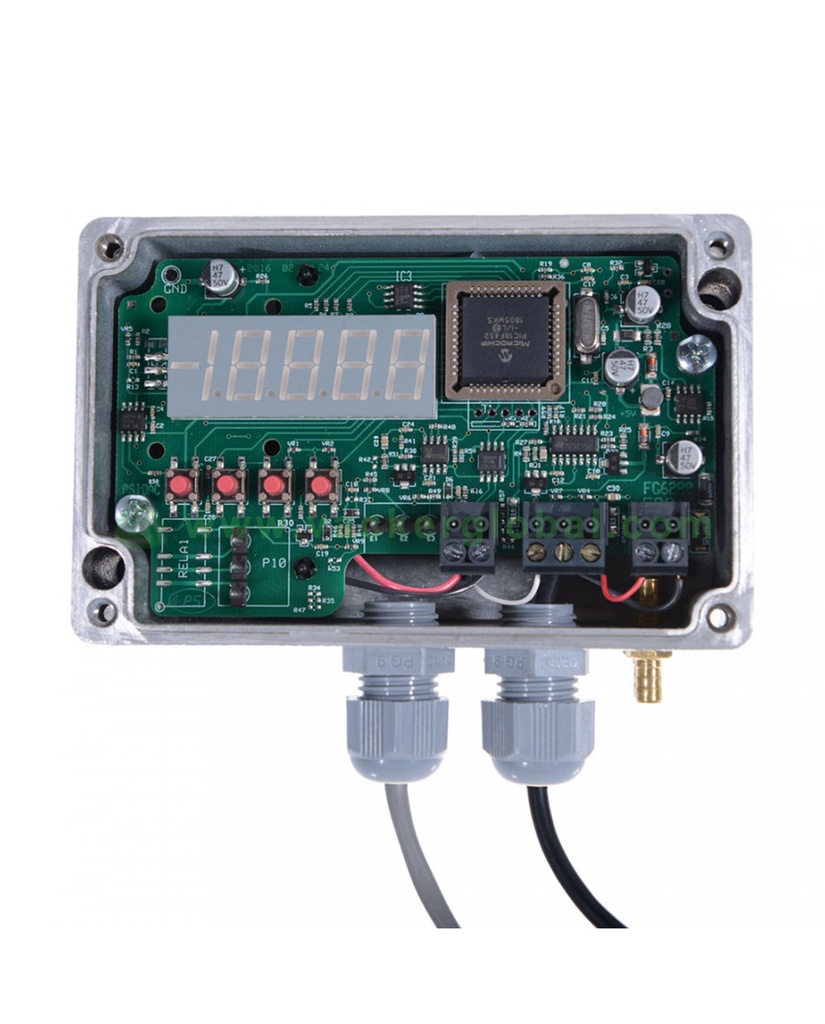

    6279 AutoZero Pressure transmitter is a top quality digital Processor

    The 6279 AutoZero Pressure transmitter is advanced processor or the device that is a transmitter which consists of optional AutoZero[Z] added. This aimed for the standard pressure measurement tasks. The device is designed with the user and the installer in mind.

    The device reduces many of the problems that traditional and old sensors suffer from and provide as much flexibility as possible.

    The processor has a field selectable feature like signal output (mA or Vold) and a Signal volt output (0-10, 0-5, 2-10).

    There are different predefined measuring limits i.e. 5, 10 … depending on the selected models are also available. To make easy installation, the 6279 also uses display and push buttons which also make the settings easy.

    With these given options you can cover static duct pressure measuring (undirected [U] sensor) in one sensor. Or it also can be on most of the situation for room pressure measurements It is possible to measure both on the positive and  negative pressures if it is ordered with Bidirectional sensor[B].

    When the pressure is at zero for the bi-direct model the analogue output will be at the middle of the point of the selected output range.

    The sensor consists of a silicone membrane and it works with a capacitive technique.  The sensor is very accurate and it is durable.  Auto calibration is an option that is added on this sensor for applications for the further improvisation where any small drift over the time is not applicable and is not accepted. For example as in the hard to reach locations, or when the sensor is configured for very low pressure like ± 5 Pa. The pressure reading can be reached by BMS via Modbus if wanted.

    The Modbus features add value to the product as we know that all the settings and the parameters also can be reached from a BMS/Scade

    Usages and Applications

    1. It can be used in Room pressure.

    2. It can be used in Laboratories.

    3. It can be used in Static pressure.

    4. It can be used in VAV Boxes.

    5. It can be used in Clean rooms.

    6. It can be used in Hospitals.

    7. It can be used in Isolation room.

    8. It can be used in Industry.

    9. It can be used in IVF clinics.

    10. It can be used in Airlock.

    11. It can be used in Ante rooms.

    12. It can be used in Server rooms.

    Specifications

    1. It consists of 0-5, 1-5, 0-10, 1-10, 2-10 V 4-20mA, 0-20 mA output.

    2. The device resolution is 10 bit digital output.

    3. It can supply 18-24 V AC/DC, 50 mA.

    4. The dimension of the device is 125x90x60 mm.

    5. The weight of the sensor is 530g.

    6. It has statbility of ± 0,2 % typ.(1 year) Typical.

    7. It consists of ± 0,3Pa + 0,1% of reading, typical.

    8. It takes a time constant of 0.1-20 seconds.

    We supply this 6279 AutoZero Pressure transmitter is a top quality digital Processor in the USA, UK, Germany, France, Netherlands, Spain, Switzerland, Sweden and other European countries. Also, we supply these 6279 AutoZero Pressure transmitter is a top quality digital Processor   in the Middle East and other Asian countries including India, Pakistan, Afghanistan, Bangladesh, Singapore, etc. Our African offices supply these 6279 AutoZero Pressure transmitter is a top quality digital Processor across all African countries covering South Africa, Kenya, Nigeria, Tanzania, Rwanda, Djibouti, Morocco, Ghana, Ethiopia, Uganda, Morocco, Tunisia, Cameroon, Mauritius, Gabon, Seychelles, etc.

    Our Middle East offices supply these 6279 AutoZero Pressure transmitter model no VAC-6279-autozero-pressure-transmitter is a top quality digital Processor in the United Arab Emirates, Kingdom of Saudi Arabia, Qatar, Oman, Kuwait, Egypt, Lebanon, Bahrain, Libya, Iraq,Erbil, Jordan, etc.
