Differential, Positive & Negative Room Pressure Sensor Monitoring System with a sound alert for upto 2 isolation rooms (a combination of 1 Display & 2 sensors)
1,715.22 USD 1,715.22 USD
6,000.00 AED
Differential, Positive & Negative Room Pressure Sensor Monitoring System with a sound alert for upto 2 isolation rooms (a combination of 1 Display & 2 sensors)
Differential, Positive & Negative Room Pressure Sensor Monitoring System with a sound alert for up to 2 nearby isolation rooms (a combination of One Display and 2 sensors)
This combination consists of one common display and 2 transmitters with sensors for 2 rooms.
This system is extremely simple to install by connecting the pressure pipes to the sensor and thereafter connecting them to the display unit.
VSKU: 1008000049
These room pressure sensors are for differential pressure monitoring, positive pressure monitoring, and negative pressure monitoring for a maximum of two nearby rooms. The display unit is suitable for taking up to 4 sensors for 4 separate rooms. This set consists of two sensors and hence is suitable for a maximum of two rooms The typical applications of negative pressure monitoring are for Airborne infection isolation rooms (AIIR). Examples of positive pressure rooms include operations theatres, clean rooms, CSSD rooms, etc.
The system consists of one display unit and two sensors.
If you are looking for a monitoring system for a maximum of 4 rooms, please check our Room pressure monitoring system for 4 rooms.
Each room sensor has two small pressure vent connections. You have to connect a connector to the room and the other vent is open to the atmosphere. Thus the sensor is continuously monitoring the pressure inside the room and that of the atmosphere. You can program the desired pressure of the room. If the pressure difference is as per the programming, the screen will show green. If the pressure difference is not adequate, it will show a red indication. Upon reaching the trigger value, it will start generating a sound alert.
Technical Specification of Room pressure monitoring system with an alert for a maximum of 2 rooms (Suitable for AIIR, Isolation rooms, operation theatres, CSSD, Cleanrooms, negative pressure rooms & positive pressure rooms)

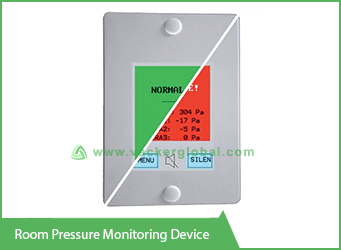

One unit of Pressure Monitoring Display.
The display is suitable for Flush in-wall mounting as well as mounting in a bracket or box.
Dimension of the display is150x100x5 (45 Mounting box) mm.
The display is LCD type Color Touchscreen having a dimension of 65x49 mm.
The standard panel color is white. We can provide custom colors at an additional price.
Internal communication is through RS485 Modbus.
External communication is through RS485 Modbus RTU.
Power supply is 24 V DC @ 54 mA/ CPS 6020/40.
This set suitable for a maximum of two rooms come with 2 nos. of pressure Transmitter.
Non linearity is ± 0,3 pascal +0,1% of reading, typical.
Stability is ± 0,2 % typ.(1 year) Typical.
The time constant is 0.1 - 20 seconds.
Output is 0-5, 1-5, 0-10, 1-10, 2-10 V or 4-20mA, 0-20 mA.
Resolution is 10-bit digital output.
The power supply of the transmitter is 18-24 V AC/DC, 50 mA.
The dimension of the transmitter unit with the sensor is 125x90x60 mm.
Application of differential pressure sensor monitoring system
Airborne infection isolation room pressure sensor
AIIR pressure sensor with the alert
Operation theater pressure monitoring
CSSD room pressure monitoring
Cleanroom pressure monitoring
