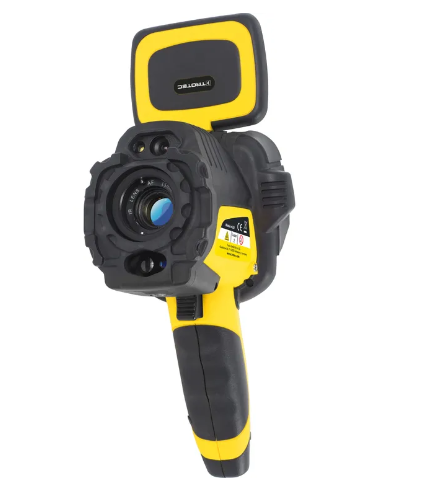

Thermal Imaging Camera XC300
Measuring range (° C) min/max: -20-600
Accuracy max .: +/- 2 ° C or +/- 2% of the current reading
Detector resolution: 384x288
Spectral range: 8-14 μm
Thermal sensitivity (30 ° C): <= 0.05 ° C
Refresh rate: 50 / 60Hz
Geometric resolution: 1.1 mrad
Standard lens | Image performance radiometric: 24 ° x18 °
Minimum focus distance: 0.15 m
Field of view (FOV): 24 ° x18 °
Operating time: up to 8h
Storage medium: internal 16GB (32GB optional)
Operation - min./max. Temperature (° C): -20 -50
Warehouse - min./max. Temperature (° C): -40 -70
Humidity min./max. (non-condensing) (%): 10 -95
Degree of protection: IP54 IEC 529
Wavelength (μm): 635
