Product Image

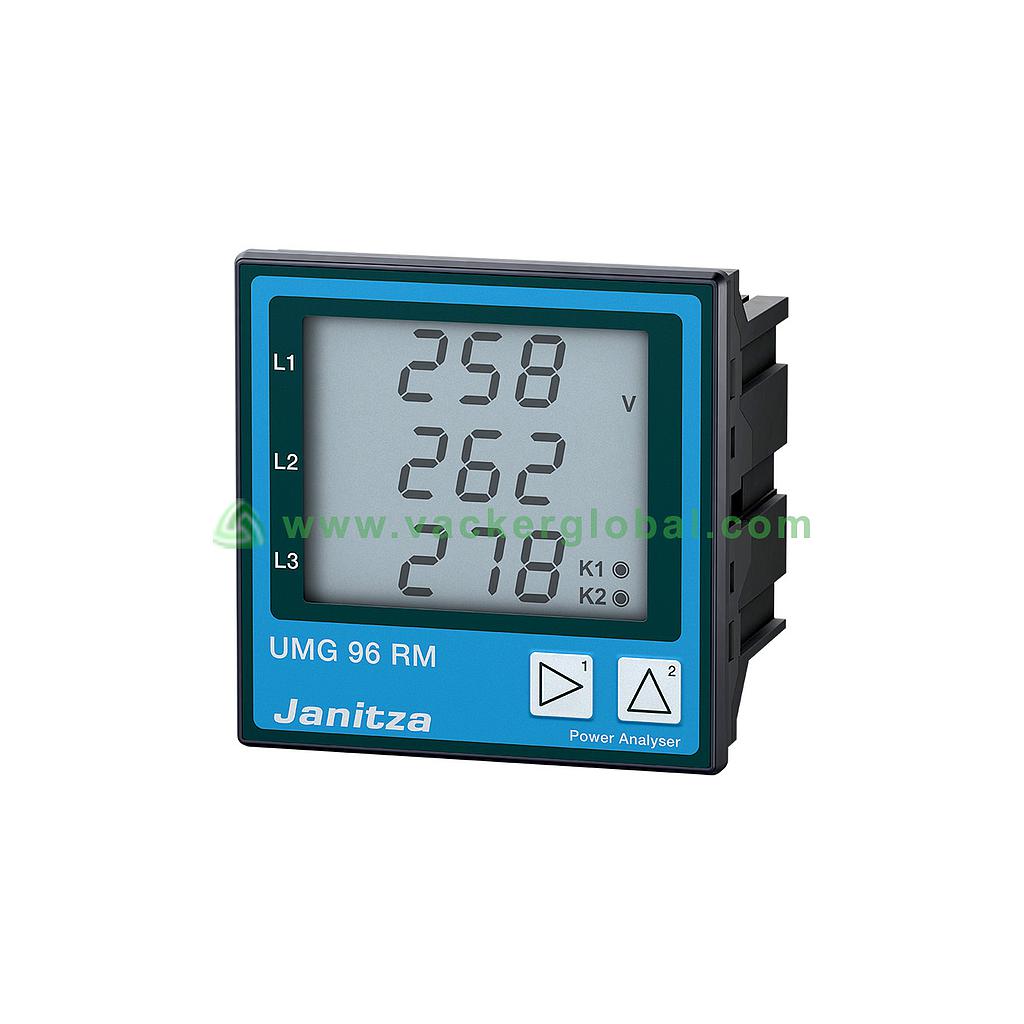

Power Analyzer UMG-96RME

1,217.80 USD 1,217.80 USD 1217.8 USD

4,260.00 AED

Power Analyzer UMG-96RME

Power analyzer UMG-96RME
Calss: 0.5
Inbuilt Memory: 256 MB, 6 months data aprox, but memory is scalable

Operating temperature range: K55 (-10°C .. +55°C)
Relative humidity: 0 to 75 % RH
Operating altitude: 0 .. 2000m above sea level

Power supply voltage
Option 230V: Nominal range 90V - 277V (50/60Hz) or DC 90V - 250V; 300V CATIII
Option 24V: Nominal range 24V - 90V AC / DC; 150V CATIII
Power consumption max. 7.5VA / 5W
Operating range: +-10% of nominal range

Measuring voltage
Three-phase 4-conductor systems with nominal voltages up to: 277V/480V (+-10%)
Three-phase 3-conductor systems, unearthed, with nominal voltages up to IT 480V (+-10%)
Overvoltage category: 300V CAT III
Measurement surge voltage: 4kV
Measurement range L-N 0 1) .. 300Vrms (max. surge voltage 520Vrms )
Measurement range L-L 0 1) .. 520Vrms (max. surge voltage 900Vrms )
Resolution: 0.01V
Crest factor 2,45 (related to the measurement range)
Impedance 3MΩ/phase
Power consumption: apporx. 0,1VA
Sampling frequency 21.33kHz (50Hz); 25.6 kHz (60Hz) per measurement channel
Frequency range of the basic oscillation - Resolution: 45Hz .. 65Hz 0.01Hz


VSKU: 1010000081

1,217.80 USD 1,217.80 USD 1217.8 USD

4,260.00 AED

    This combination does not exist.

    Add to Cart Buy Now
