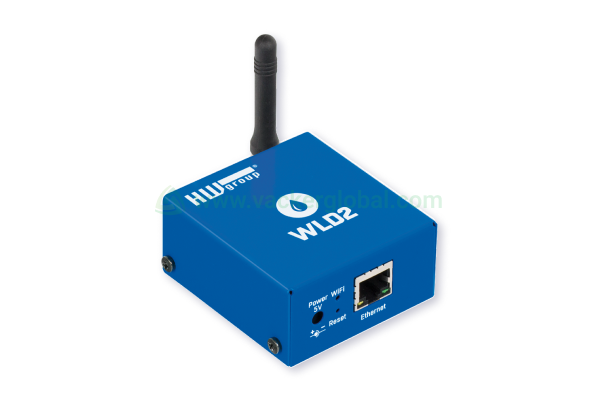

WLD2 WiFi / Ethernet Water Leak Detector

WLD2 is a water leak detector designed for WiFi and Ethernet connectivity, featuring support for WWW, SNMP, emails, ana PoE. It is capable of triggering alarms upon contact with even minimal amounts of liquid along its entire sensing cable, including instances like condensation from A/C pipes or general water leaks.

This early warning system helps prevent expensive damages done by alerting you to potential issues in advance. Furthermore, the device enhances reliability by detecting disconnected or damaged sensing cables, providing comprehensive monitoring beyond just water alerts.

Features

1. Streamlined web interface for quick and user-friendly setup

2. Enables automatic network configuration through DHCP

3. Capable of simultaneous communication via WiFi (with an external antenna for extended range, supporting 2.4 GHz, 2.11 b/g/n) and ethernet

4. Supports up to four detection zones, each covering a maximum 0f 185 meters, facilitating easier leak source identification

5. The WLD2 provides status signals for OK, Flooded, and Sensing Cable fault conditions

Applications

1. Protection against floods from skylights-sensing cable routed along the walls

2. Detection of water leaks in drip trays

3. Water detection under raised floors

4. Leaky pipe detection (cable wrapped along the pipe)

5. Detection of water leaks under air-conditioned outlets

Specifications

1. Power Voltage  5v/250 mA

2. Connector JackØ  3.5x1.35/10 mm

3. PoE (Power over Ethernet) RJ45-IEEE  802.3af Class 0

4. Operating temperature  -10 to 60 °C (range of device operating temperatures may not correspond to sensor range)

5. Dimensions/weight  65 x 80 x 30 mm /500g

6. Elmag. radiation CE/FCC   Part 15, Class B

7. Elmag. compatibility  EN 55022, EN 55024, EN 61000
