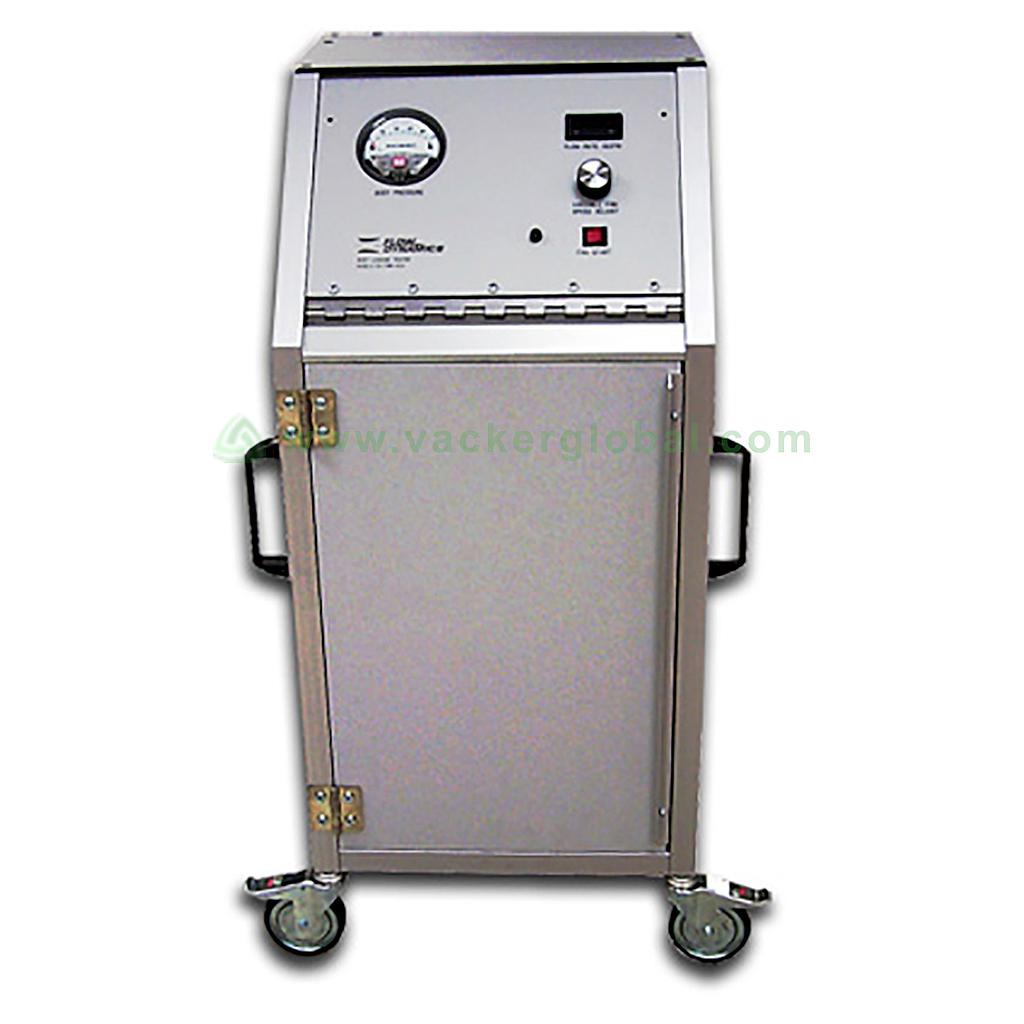

Automotive Body Leak Tester
Automotive Body Leak Tester model no [VAC – Automotive Body Leak Tester]
Flow Range 5 to 400 (5 to 5000 Optional) scfm
It is used to test the vehicle design by the manufacturing companies. Under both pressure and vacuum conditions, it can determine the rate of air leakage into and out of a vehicle cabin. it can be used to test body components such as doors and windows with the use of custom adapters. The air flow from the Body Leakage Tester is produced by a rotating Air Blower in the bottom of the Tester. An Inlet Filter on the Air Blower removes particles from the air before it is directed through the flow element and into the vehicle. The flow measuring element in the Tester is a thermal Mass Air Flow Sensor. The flow element operates on the principle of heat transfer. The Digital Flow Rate Display converts the linear frequency output of the Flow Computer into flow rate in Standard Cubic Feet per Minute (SCFM). The Differential Pressure Gauge indicates the difference between the vehicle body and the ambient atmosphere.
Applications of Automotive Body Leak Tester model no [VAC – Automotive Body Leak Tester]
It can be used in automobile manufacturing
It can be used in test equipment and services
Features of Automotive Body Leak Tester model no [VAC – Automotive Body Leak Tester]
It is used to measure rate of flow using a mass air flow sensor and displayed in standard cubic feet per minute(SCFM)
It has differential pressure gauge which measures the difference in pressure between the vehicle cabin and the ambient environment
Specifications of Automotive Body Leak Tester model no [VAC – Automotive Body Leak Tester]
Its flow range is 5 to 400 (5 to 5000 Optional) scfm
We supply Automotive Body Leak Tester that can be used in various industries and applications in the United Arab Emirates. Contact us for this Automotive Body Leak Tester in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
