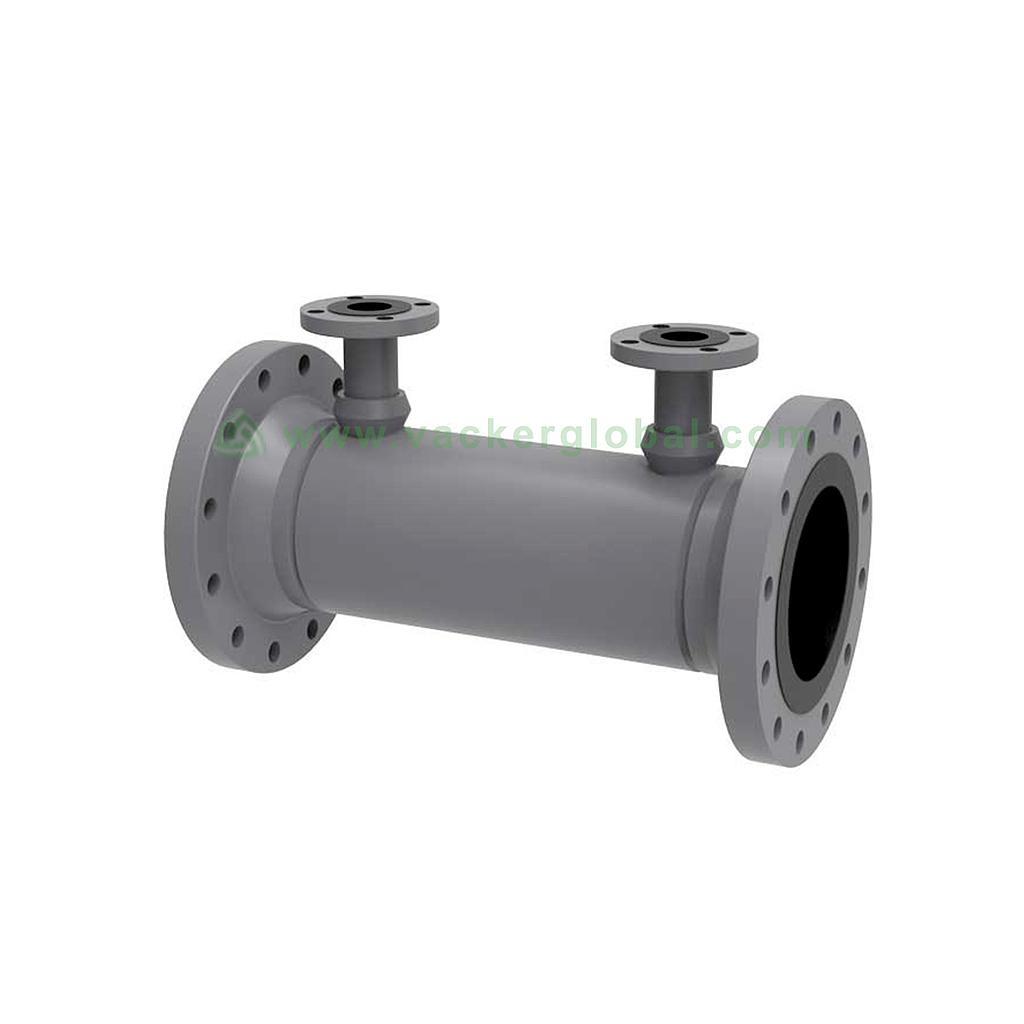

COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter

COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter

COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter model no [VAC- COIN® Wedge,- Flange Process- by Flange Instrumentation- (Model FF) Flow Meter]

Size 1/2 to 48 in.
Temperature Range Up to 1500 °F
Pressure Range Dependent on flange rating PSI
Accuracy (uncalibrated) ±3 %
(calibrated) ±0.5 %

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us


    Introduction

    It can be used in a wide variety of applications. It is a good measuring technology for media in upstream, midstream, and downstream applications. Accuracy and reliability are achieved with rugged construction, practical design, and a simple principle of operation. The Coin wedge flow meter stands alone in its ability to maintain the necessary square root relationship between flow rate and differential pressure for almost any type of flow. The inlet section is the same diameter as the incoming pipe section and followed by a precise, segmented, angled section equal on both sides for bidirectional flow measurement. The H/ID ratio is determined by the manufacturer according to recognized standards and formulas. The discharge coefficient (Cd) is linear and stable in the operating flow range.

    Applications of COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter model no [VAC- COIN® Wedge,- Flange Process- by Flange Instrumentation- (Model FF) Flow Meter]

    1. It can be used in a process or industrial

    2. It can be used in petrochemical

    3. It can be used in chemical metering

    Features of COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter model no [VAC- COIN® Wedge,- Flange Process- by Flange Instrumentation- (Model FF) Flow Meter]

    1. It has reduced pumping costs

    2. It has low-pressure losses

    3. It can resist wear and is maintenance-free (no moving parts)

    4. It can be easily installed in any position with minimal straight pipe requirements

    5. Its turndown ratio is 10:1

    6. Its mass flow output with multivariable transmitter (accuracy ±0.5 calibrated)

    7. Its repeatability ±0.2 of readings

    8. Its Reynolds number measurement is down to 300

    9. Its high viscosity measurement is 3000 and higher

    10. It resists wears having no moving parts

    11. It has bi-directional flow measurement

    12. It can be easily installed in any position with minimal straight pipe requirements

    13. It is manufactured to ASME, ANSI B31.1, NACE MR-0175, CSA-Z299.3

    14. It has ISO-9001 certified design and fabrication

    15. It has optional RTD

    Specifications of COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter model no [VAC- COIN® Wedge,- Flange Process- by Flange Instrumentation- (Model FF) Flow Meter]

    • Its size is   1/2 to 48 in.

    • Its working temperature range is Up to 1500 °F

    • Its pressure range is Dependent on flange rating PSI

    • Its accuracy is (uncalibrated) ±3 %, (calibrated) Up to ±0.5 %

    We supply this COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter that can be used in various industries and applications in the United Arab Emirates. Contact us for this COIN® Wedge, Flange Process by Flange Instrumentation (Model FF) Flow Meter in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
