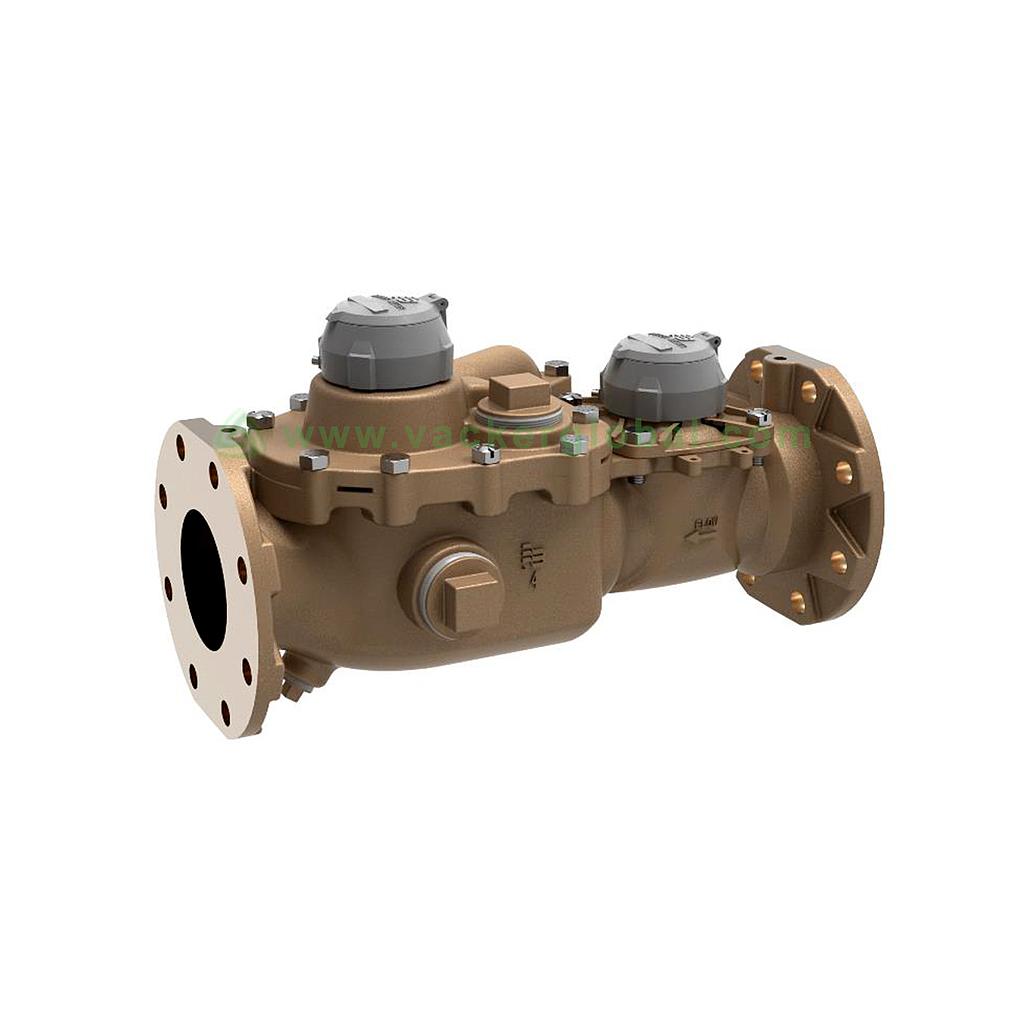

Compound Series Meters

Compound Series Meters

Compound Series Meters model no [VAC- Compound- Series- Meters]


Size 2 to 8 in.
Temperature Range Up to 105 °F
Flow Range 2 inch: 0.25 to 200 gpm
3 inch: 0.25 to 450 gpm
4 inch: 0.375 to 1000 gpm
6 inch: 0.375 to 2000 gpm
8 inch: 1.25 to 4500 gpm
Pressure Range Up to 150 PSI

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

    The Compound Series meters combine two metering technologies in one package. It has a positive displacement chamber that measures low flow and a turbine chamber that records high flow. The compound meters are available in 2 inch, 3 inch, 4 inch, and 6-inch sizes. A spring-loaded valve assembly controls the flow through each of the two measuring elements to provide maximum accuracy and performance. The basic components of the compound meter are the housing, and the Turbo Series head assembly and cover assembly with disc chamber assembly. The head assembly includes a Recordall register or encoder for high flow totalization and also complete turbo head components (cage and rotor). The cover assembly includes a Recordall register or encoder for low flow totalization and a complete chamber assembly. The output of both measuring elements, the disc, and turbo, is transmitted to each Recordall register or encoder by means of ceramic magnets. The register or encoder is permanently sealed in a controlled environment relative to humidity and cleanliness which enhances the performance.

    Applications of Compound Series Meters model no [VAC- Compound- Series- Meters]

    1. It can be used in property management

    2. It can be used in facility management

    3. It can be used in water distribution

    Features of Compound Series Meters model no [VAC- Compound- Series- Meters]

    • It exceeds AWWA C702  standards and complies with the lead-free provisions of the safe drinking water act

    • It complies with NSF/ANSI standards 61 and 372 certified

    • It is compatible with all Badger Meter ORION family of endpoints and other manufacturer approved technologies

    • It has high crossover accuracy

    • It has a floating rotor design which reduces friction and wear

    • It has a “screw-in” valve assembly for easy field maintenance

    • It has U.S. Pat. No. 6,581,457

    Specifications of Compound Series Meters model no [VAC- Compound- Series- Meters]

    • Its size is 2 to 8 in.

    • Its working temperature range is Up to 105 °F

    • Its flow range is 2 inch: 0.25 to 200 gpm, 3 inch: 0.25 to 450 gpm, 4 inch: 0.375 to 1000 gpm, 6 inch: 0.375 to 2000 gpm, 8 inch: 1.25 to 4500 gpm

    • Its pressure range is Up to 150 PSI

    We supply this Compound Series Meters that can be used in various industries and applications in the United Arab Emirates. Contact us for this Compound Series Meters in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
