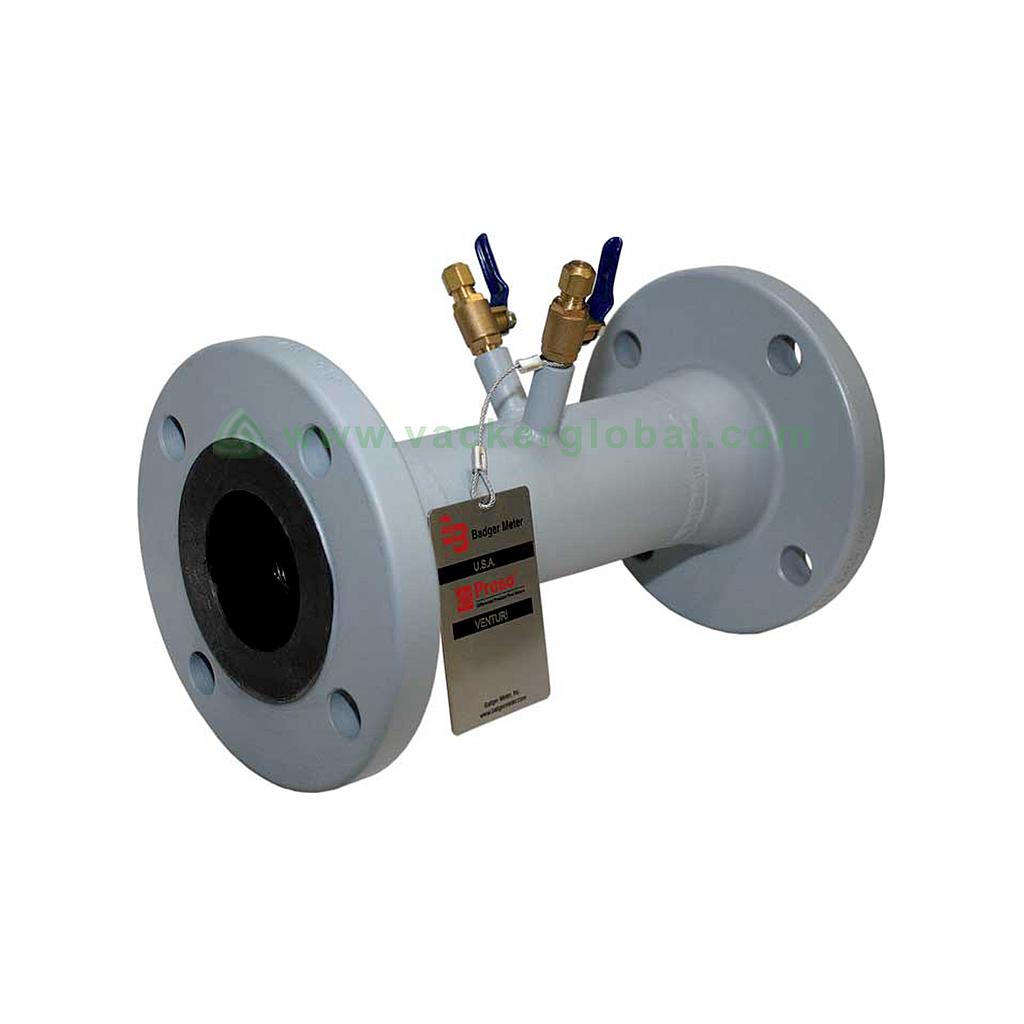

CV Series Venturi Flow Meter

CV Series Venturi Flow Meter

CV Series Venturi Flow Meter model no [VAC- CV- Series- Venturi- Flow Meter]

Size 2 to 16 in.
Temperature Range Up to 250 °F
Flow Range 3 to 20,000 gpm
Pressure Range Up to 300 PSI
Accuracy (uncalibrated) ± 2 %

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us


    Introduction

    It is used to measure the flow of liquids, gases, or streams. Flow is passed through the smaller diameter of the pipe and pressure difference is measured between the unrestricted flow and the restricted flow. It can be kept in any position with minimal straight pipe requirements 5 pipe diameters upstream and 2 pipe diameters downstream. It can be used in a wide variety of applications. Its short laying length reduces cost.

    Applications of CV Series Venturi Flow Meter model no [VAC- CV- Series- Venturi- Flow Meter]

    1. It can be used in HVAC

    2. It can be used in a process or industrial

    3. It can be used in building automation

    Features of CV Series Venturi Flow Meter model no [VAC- CV- Series- Venturi- Flow Meter]

    1. It has a carbon steel construction

    2. It has low loss design

    3. It has 1/8” MNPT x1/4” SAE brass ball process connections

    4. It has NPT butt weld or flanged end connections

    5. It has a polycarbonate ID tag

    6. It has quick disconnect fittings options

    7. It has pressure and temperature plugs options

    8. It has pressure port extensions options

    9. It has stainless steel ID tags options

    Specifications of CV Series Venturi Flow Meter model no [VAC- CV- Series- Venturi- Flow Meter]

    • Its size is   2 to 16 in.

    • Its working temperature range is Up to 250 °F

    • Its flow range is   3 to 20,000 GPM

    • Its pressure range is Up to 300 PSI

    • Its accuracy is (uncalibrated) ± 2 %

    We supply CV Series Venturi Flow Meter that can be used in various industries and applications in the United Arab Emirates. Contact us for this CV Series Venturi Flow Meter in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
