Ellipse® AF Annular Flanged Flow Meter
Ellipse® AF Annular Flanged Flow Meter model no [VAC- Ellipse®- AF Annular- Flanged -Flow Meter]
Size 2 to 120 in.
Temperature Range Up to 800 °F
Flow Range 5.3 to 34,340 gpm
Pressure Range Up to 800 PSI
Accuracy ±0.75 %
VSKU:
Introduction

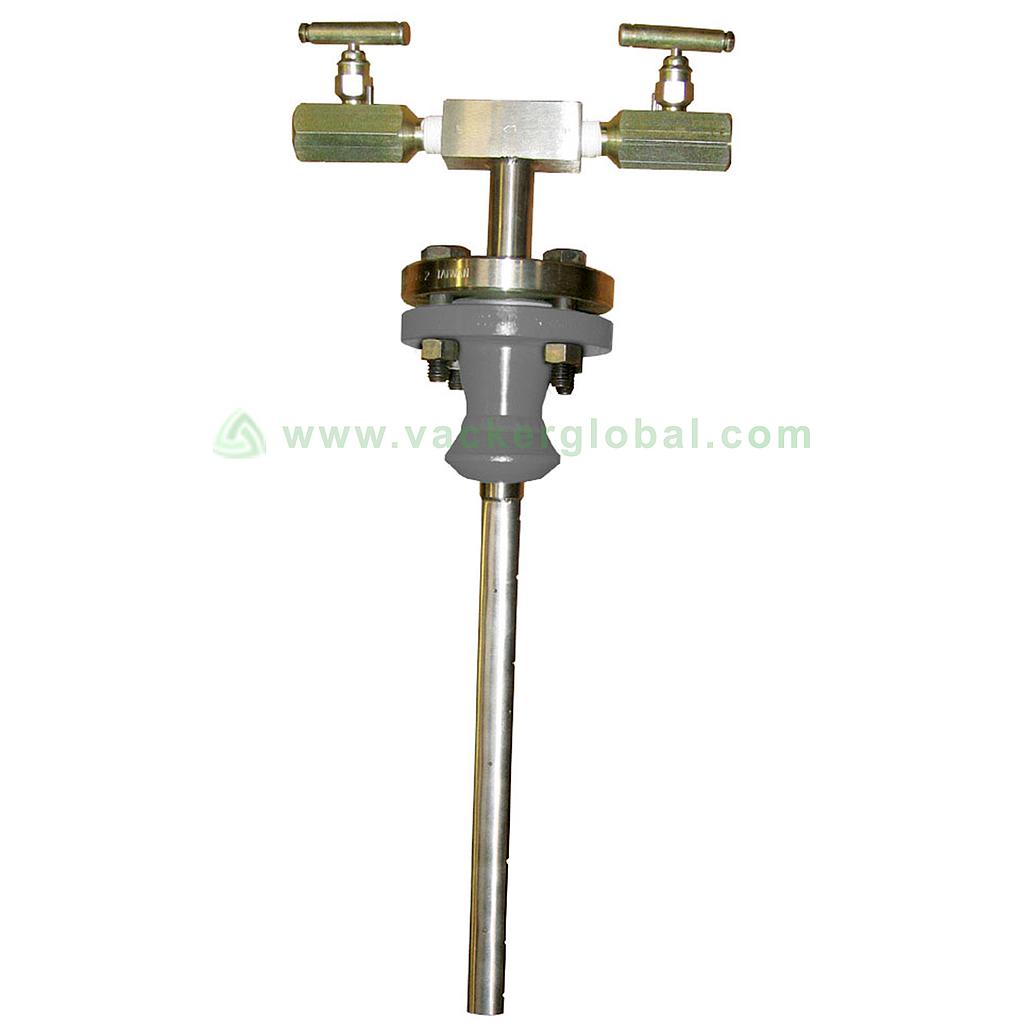

This flow meter is designed with a series of ports facing the upstream velocity pressures as well as flow sensing ports that are located ahead of the trailing edge flow separation. The multi-ported, self-averaging flow element consists of an elliptical shape with two independent flow sensing chambers. The impact velocity sensing holes (high pressure) are located along the leading edge and the true static sensing holes (low pressure) are on the exterior probe side. Model AF comes with instrument shutoff valves with provisions to accept a transmitter or direct indicating meter.
Applications of Ellipse® AF Annular Flanged Flow Meter model no [VAC- Ellipse®- AF Annular- Flanged -Flow Meter]
It can be used in petrochemical industries
It can be used in refining industries
It can be used in building automation
Features of Ellipse® AF Annular Flanged Flow Meter model no [VAC- Ellipse®- AF Annular- Flanged -Flow Meter]
It has a T-Type head, 316 SS 1/4 inch or 1/2 inch FNPT connection
It has CS compression fittings with SS ferrule
It has a 316 SS ellipse sensor
It has optional double support CS or 316 SS
It has an optional temperature port with RTD output
It has a static pressure port with an SS plug
It has instrument valves (2 per sensor) 1/4 inch or 1/2 inch, CS
It has a 316 SS ID tag with wire
It has CS 3000 lb weld fitting-ASTM A105
Specifications of Ellipse® AF Annular Flanged Flow Meter model no [VAC- Ellipse®- AF Annular- Flanged -Flow Meter]
Its size is 2 to 120 in.
Its working temperature range is Up to 800 °F
Its flow range is 5.3 to 34,340 GPM
Its pressure range is Up to 800 PSI
Its accuracy is ±0.75 %
We supply Ellipse® AF Annular Flanged Flow Meter that can be used in various industries and applications in the United Arab Emirates. Contact us for this Ellipse® AF Annular Flanged Flow Meter in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
