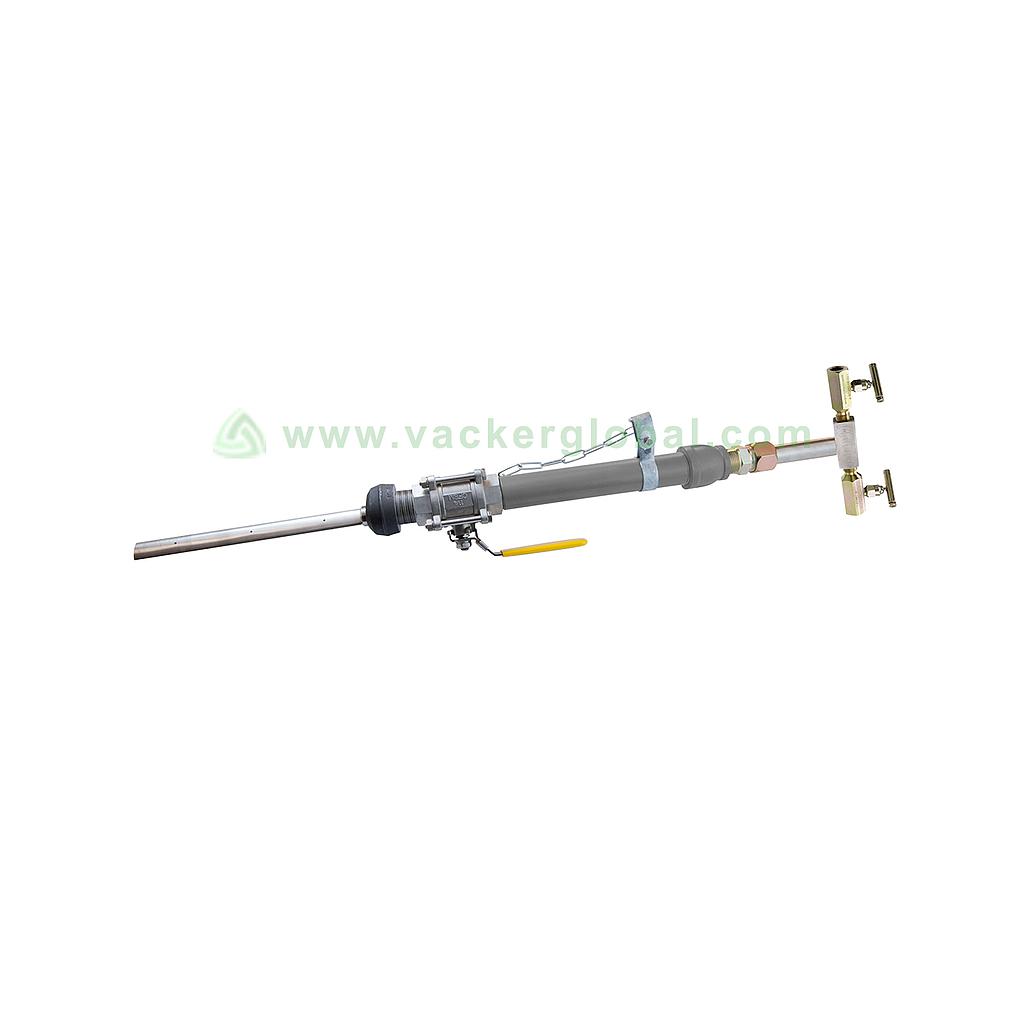

Ellipse® AHR Annular Wet Tap, Low Pressure Flow Meter
Ellipse® AHR Annular Wet Tap, Low Pressure Flow Meter model no [VAC- Ellipse®- AHR Annular- Wet Tap, Low Pressure- Flow Meter]
Size 2 to 48 in.
Temperature Range Up to 150 °F
Flow Range 5.3 to 34,340 gpm
Pressure Range Up to 150 PSI
Accuracy ±0.75 %
VSKU:
Introduction
It performs very well and provides greater accuracy than traditional differential pressure flow measurement devices. This differential pressure flow meter is designed with a series of ports facing the upstream velocity pressures as well as flow sensing ports that are located ahead of the trailing edge flow separation. The multi-ported self averaging flow element consists of an elliptical shape with two independent flow sensing chambers. The impact velocity sensing holes (high pressure) are located along the leading edge and the true static sensing holes (low pressure) are on the exterior probe side. Model AHR comes with instrument shutoff valves that can accept a transmitter or direct indicating meter.
Applications of Ellipse® AHR Annular Wet Tap, Low-Pressure Flow Meter model no [VAC- Ellipse®- AHR Annular- Wet Tap, Low Pressure- Flow Meter]
It can be used in petrochemical industries
It can be used in refining industries
It can be used in building automation
Features of Ellipse® AHR Annular Wet Tap, Low-Pressure Flow Meter model no [VAC- Ellipse®- AHR Annular- Wet Tap, Low Pressure- Flow Meter]
It has a T-Type head, 316 SS ¼ or 1/2 inch FNPT connection
It has a 316 SS isolation ball valve, NPT
It has CS compression fittings with SS ferrule
It has a 316 SS ellipse sensor
It has optional double support CS or 316 SS
It has optional compression fitting- all 316 SS
It has optional weld fitting- 316 SS 150 lb or 3000 lb
It has an optional 316 SS cage nipple
It has a 316 SS ID tag with wire
It has CS 3000 lb weld fitting-ASTM A105
It has nipples, schedule 40
It has CS reducer coupling
Specifications of Ellipse® AHR Annular Wet Tap, Low-Pressure Flow Meter model no [VAC- Ellipse®- AHR Annular- Wet Tap, Low Pressure- Flow Meter]
Its size is 2 to 48 in.
Its working temperature range is Up to 150 °F
Its flow range is 5.3 to 34,340 GPM
Its pressure range is Up to 150 PSI
Its accuracy is ±0.75 %
We supply Ellipse® AHR Annular Wet Tap, Low-Pressure Flow Meter that can be used in various industries and applications in the United Arab Emirates. Contact us for this Ellipse® AHR Annular Wet Tap, Low-Pressure Flow Meter in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
