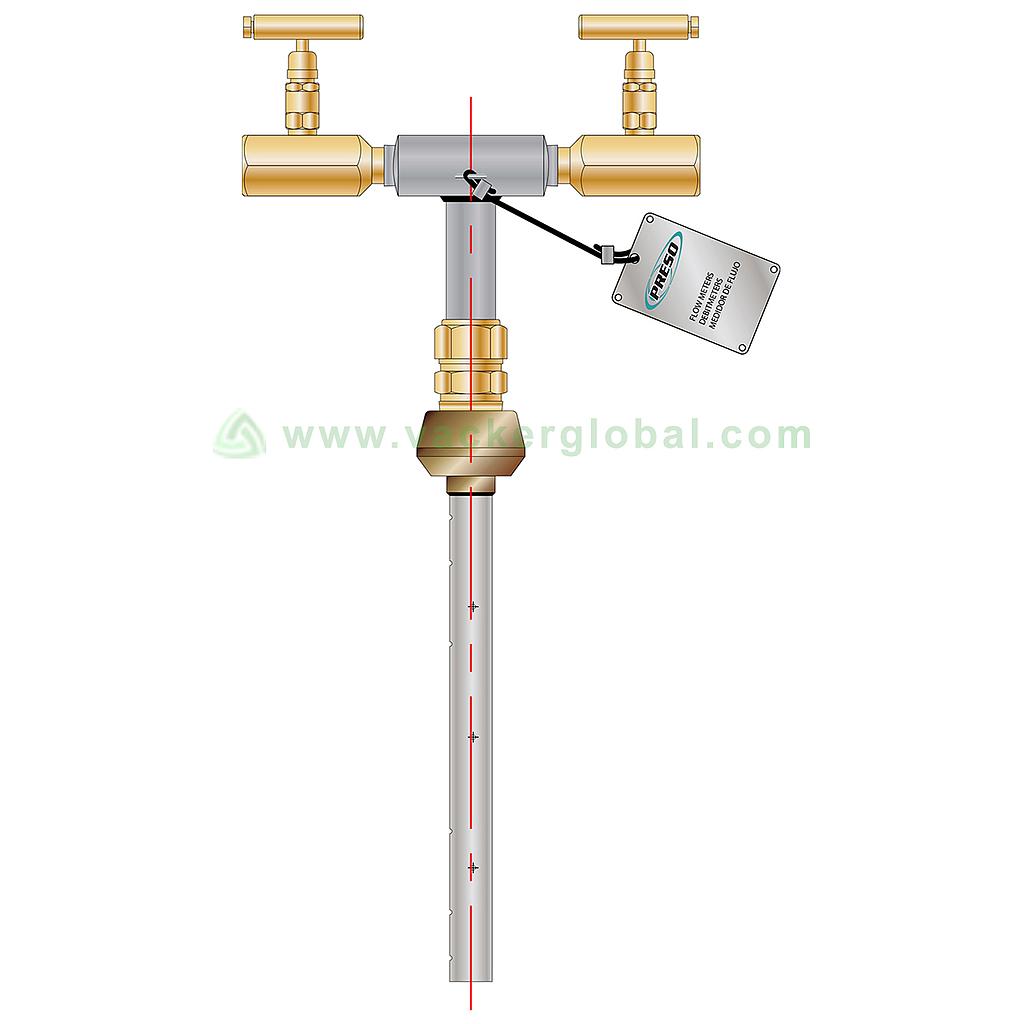

Ellipse® AR Annular Flow Meter

Ellipse® AR Annular Flow Meter

Ellipse® AR Annular Flow Meter model no [VAC- Ellipse® -AR Annular -Flow Meter]

Size 2 to 72 in.
Temperature Range Up to 800 °F
Flow Range 5.3 to 34,340 gpm
Pressure Range Up to 800 PSI
Accuracy ±0.75 %

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us



    Introduction

    Its performance is very good and also provides greater accuracy than traditional differential pressure flow measurement devices. This differential pressure flow meter is designed with a series of ports facing the upstream velocity pressures, as well as flow sensing ports strategically located ahead of the trailing edge flow separation. The multi-ported, self-averaging flow element consists of an elliptical shape with two independent flow sensing chambers. The impact velocity sensing holes (high pressure) are located along the leading edge and the true static sensing holes (low pressure) are on the exterior probe side. Model AHZ comes with instrument shutoff valves with provisions to accept a transmitter or direct indicating meter.

    Applications of Ellipse® AHZ Annular Flanged, Hot Tap Steam Flow Meter model no [VAC- Ellipse®- AHZ Annular- Flanged, Hot Tap –Steam- Flow Meter]

    1. It can be used in petrochemical industries

    2. It can be used in refining industries

    3. It can be used in building automation

    Features of Ellipse® AHZ Annular Flanged, Hot Tap Steam Flow Meter model no [VAC- Ellipse®- AHZ Annular- Flanged, Hot Tap –Steam- Flow Meter]

    1. It has a T-Type head, 316 SS ¼ or  1/2 inch FNPT connection

    2. It has a 316 SS isolation ball valve, NPT

    3. It has instrument valves (2 per sensor) ¼ inch or ½ inch, CS

    4. It has a 316/316L SS ellipse sensor

    5. It has optional 316 SS rods, bolts, and nuts

    6. It has an optional 316 SS packing chamber and flange

    7. It has an optional temperature port with RTD output

    8. It has an optional static pressure port with an SS plug

    9. It has an optional spiral wound gasket 316 SS

    10. It has optional 300 lb, 600 lb, and higher flange rating CS or 316 SS ANSI B16.5

    11. It has a 150 lb 316/316L SS sensor flange

    12. It has CS packing chamber with molythane or graphite packing gland

    13. It has CS packing chamber flange, 150 lb with SS cap

    14. It has a 316 SS ID tag with wire

    15. It has CS 3000 lb weld fitting-ASTM A105

    16. It has nipples, schedule 40

    17. They are available in 7/8, 1 ¼ and 2 ¼  inch diameter

    Specifications of Ellipse® AHZ Annular Flanged, Hot Tap Steam Flow Meter model no [VAC- Ellipse®- AHZ Annular- Flanged, Hot Tap –Steam- Flow Meter]

    • Its size is   2 to 72 in.

    • Its working temperature range is Up to 800 °F

    • Its flow range is   2.6 to 34,340 GPM

    • Its pressure range is Up to 800 PSI

    • Its accuracy is ±0.75 %

    We supply Ellipse® AHZ Annular Flanged, Hot Tap Steam Flow Meter that can be used in various industries and applications in the United Arab Emirates. Contact us for this Ellipse® AHZ Annular Flanged, Hot Tap Steam Flow Meter in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
