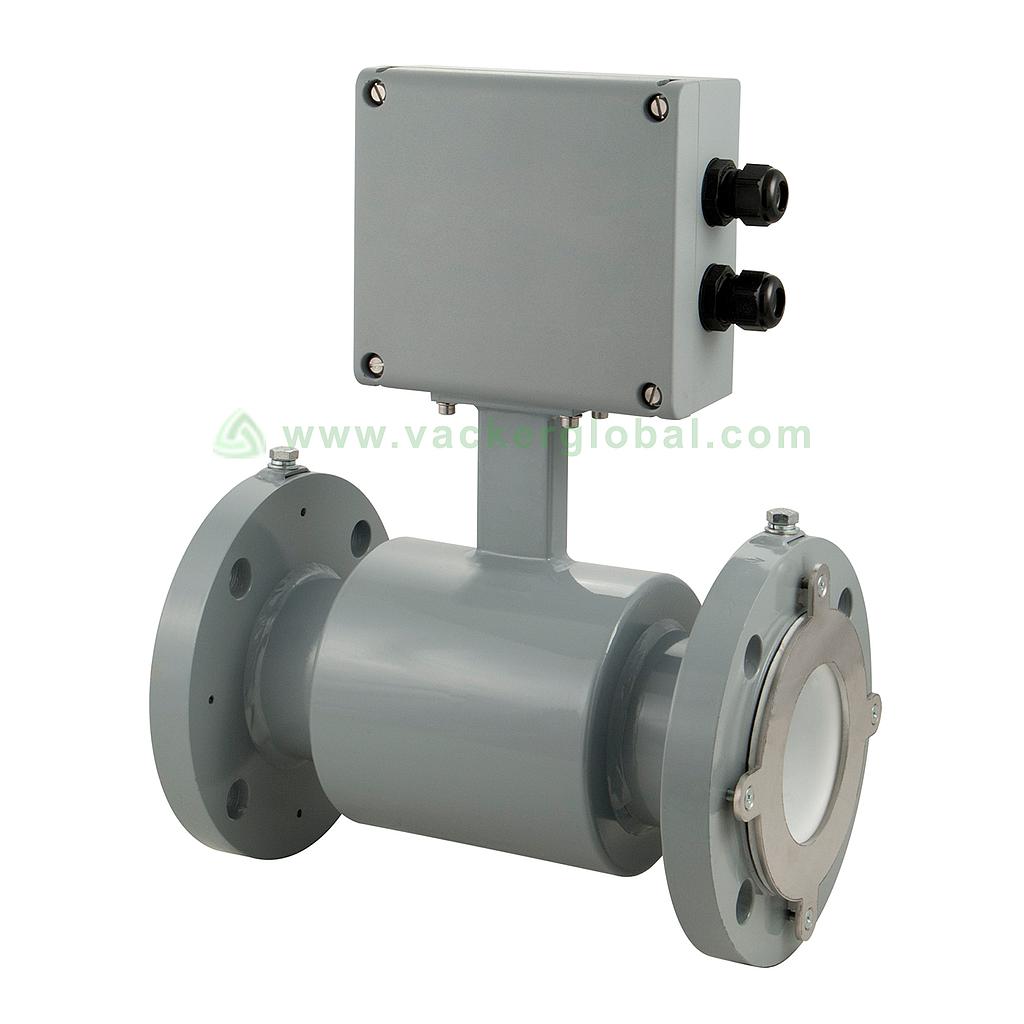

M7600 Electromagnetic Flow Meter
M7600 Electromagnetic Flow Meter model no [VAC- M7600 Electromagnetic Flow Meter]
Size 1/2 to 4 in.
Temperature Range Up to 212 °F
Flow Range 0.14 to 1320 gpm
Pressure Range Up to 232 PSI
Accuracy ±0.5 %
VSKU:
Introduction
The Badger Meter M7600 electromagnetic flow meter combines the most advanced electromagnetic flow metering technology with the simplicity and ruggedness of the Badger Meter is proven Batching Systems for Industrial Applications. The M7600 meter is intended for fluid metering in most industries including water, wastewater, food and beverage, pharmaceutical, chemical, and concrete. The basic components of an electromagnetic flowmeter are the detector, which includes the flow tube, isolating liner, and measuring electrodes. The amplifier, which is the electronic device responsible for the signal processing, flow calculation, display, and output signals.
Applications of M7600 Electromagnetic Flow Meter model no [VAC- M7600 Electromagnetic Flow Meter]
It can be used in concrete production
It can be used in water and wastewater treatment
It can be used in a process or industrial
Features of the M7600 Electromagnetic Flow Meter model no [VAC- M7600 Electromagnetic Flow Meter]
It has an open cross-section design with no pressure loss, no moving parts, no maintenance required
It is unaffected by the presence of most suspended solids in the liquid
It has two standard pulse outputs: solid-state relay and open collector output that is compatible with most batch controllers and totalizer displays
It has a programmable scale factor
It has a long life, corrosion-resistant liner(PTFE)
Ii has a pulsed DC magnetic field for maximum zero point stability
Specifications of M7600 Electromagnetic Flow Meter model no [VAC- M7600 Electromagnetic Flow Meter]
Its size is 1/2 to 4 in.
Its working temperature range is Up to 212 °F
Its flow range is 0.14 to 1320 GPM
Its pressure range is Up to 232 PSI
Its accuracy is ±0.5 %
We supply this M7600 Electromagnetic Flow Meter that can be used in various industries and applications in the United Arab Emirates. Contact us for this M7600 Electromagnetic Flow Meter in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
