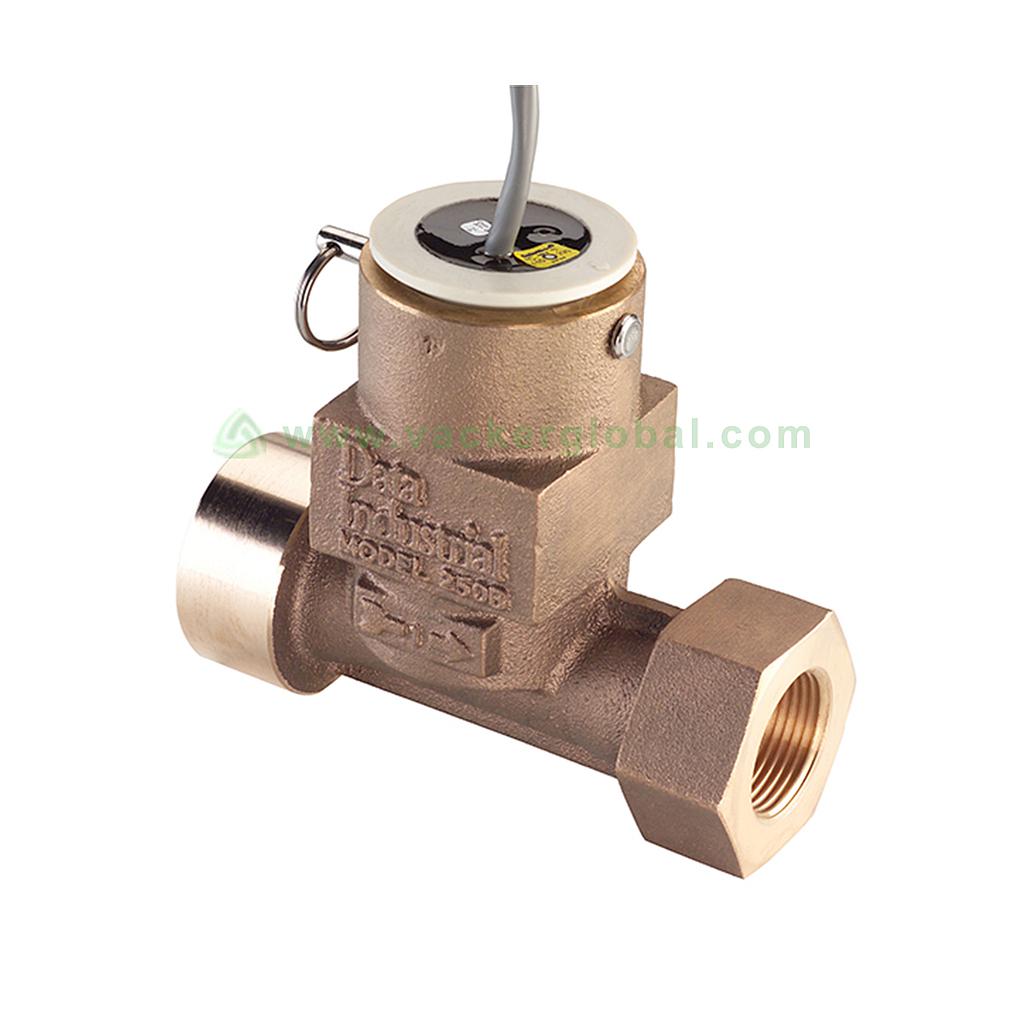

Metallic Tee Type Flow Sensors - Series 250
Metallic Tee Type Flow Sensors - Series 250 model no [VAC- Metallic -Tee Type- Flow Sensors - Series 250]
Size 1/2 to 2 1/2 in.
Temperature Range Up to 221 °F
Flow Range 0.3 to 30 ft/sec
Pressure Range Up to 400 PSI
Accuracy ± 1.0 %
VSKU:
Introduction
Badger Meter non-magnetic flow sensors provide an accurate reading of the rate of liquid flow as well as total accumulated flow. A number of sensor models are provided which cover applications for a wide range of pipe sizes and pressure/temperature specifications. Badger Meter provides several basic sensor configurations using the same impeller element. This allows for a wide range of applications and pipe sizes. Sensors are normally supplied with 20 feet (6 meters) of 2-conductor 20 AWG shielded UL type PTLC 221° F (105° C) cable. Optional sensors designated with the prefix IR feature two single-conductor 18 AWG solid copper wire leads 48 inches (122 cm) in length with UL Style 116666 direct burial insulation. These IR models are used in below-grade applications such as irrigation, municipal, and groundwater monitoring.
Applications of Metallic Tee Type Flow Sensors - Series 250 model no [VAC- Metallic -Tee Type- Flow Sensors - Series 250]
It can be used in irrigation
It can be used in a process or industrial
It can be used in water and wastewater treatment
Features of Metallic Tee Type Flow Sensors - Series 250 model no [VAC- Metallic -Tee Type- Flow Sensors - Series 250]
Its sensor electronics can be easily removed from the tee
Its impeller bearing and shaft are easily replaced in the field without changing the calibration
It has a two-wire sensor. Power and signal transmit on a single pair of wires up to a distance of 2000 feet(610 meters)
It has a digital signal that is easily interfaced with transmitters, monitors, or PLC’s
Specifications of Metallic Tee Type Flow Sensors - Series 250 model no [VAC- Metallic -Tee Type- Flow Sensors - Series 250]
Its size can range from 1/2 to 2 1/2 in.
Its working temperature range is Up to 221 °F
Its flow range is 0.3 to 30 ft/sec
Its pressure range is Up to 400 PSI
Its accuracy is ± 1.0 %
We supply this Metallic Tee Type Flow Sensors - Series 250 that can be used in various industries and applications in the United Arab Emirates. Contact us for this Metallic Tee Type Flow Sensors - Series 250 in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
