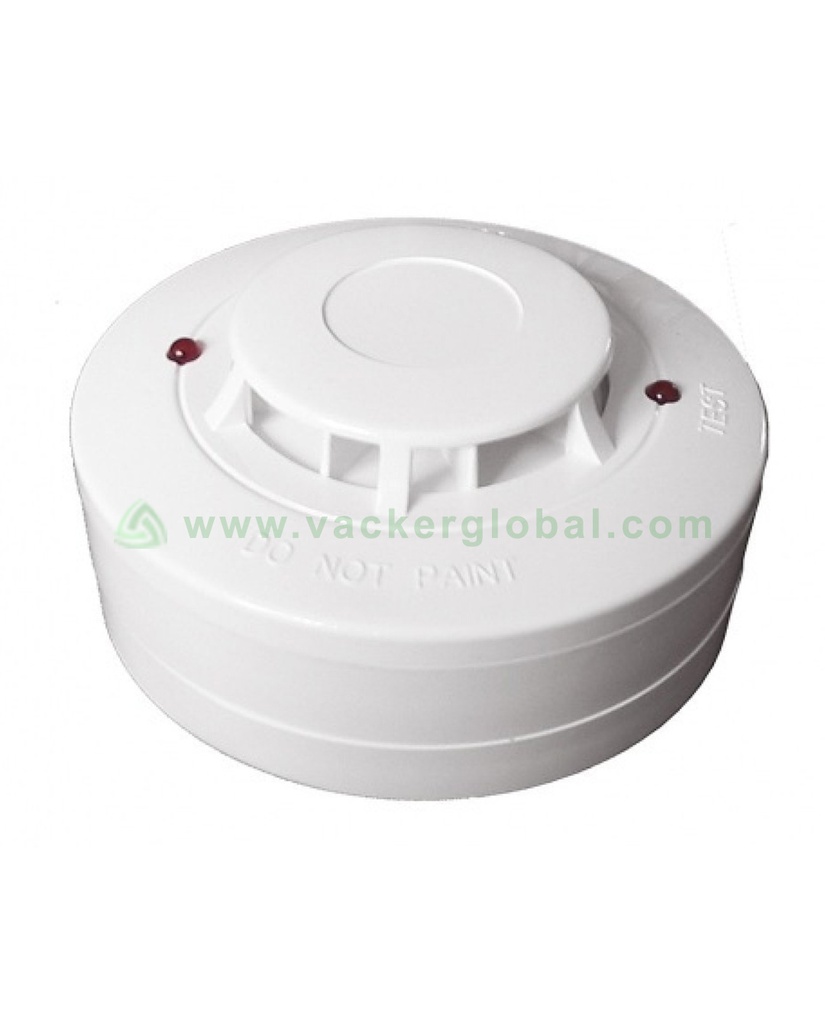

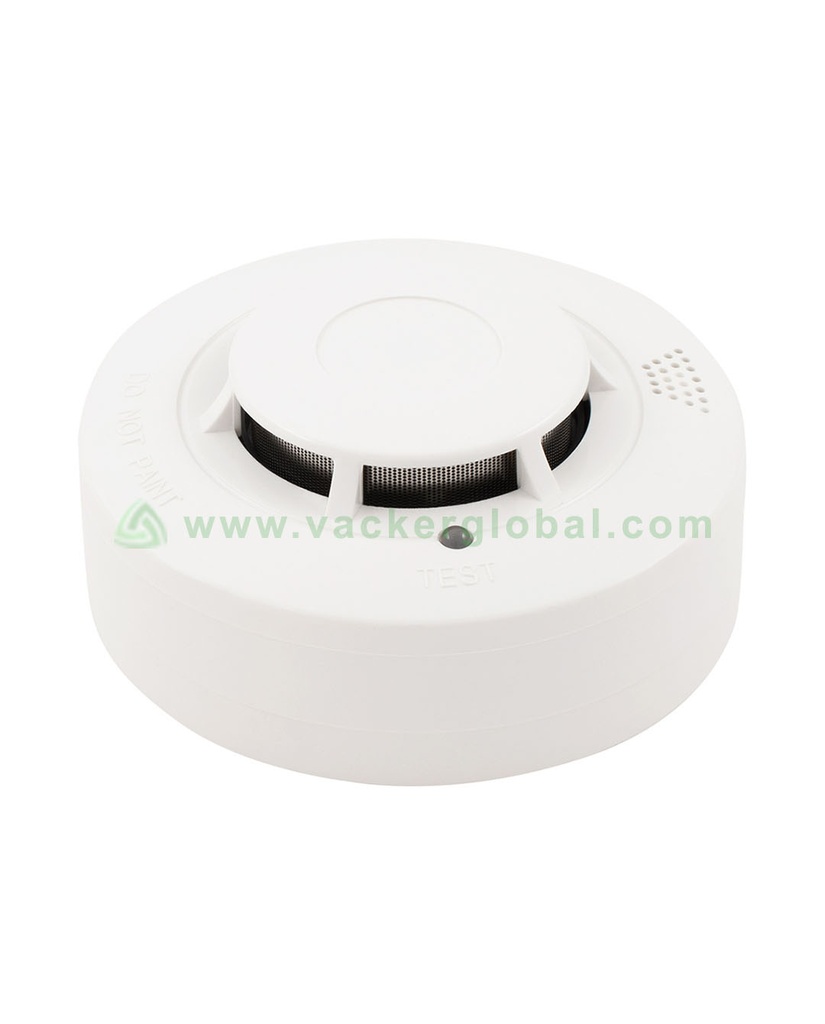

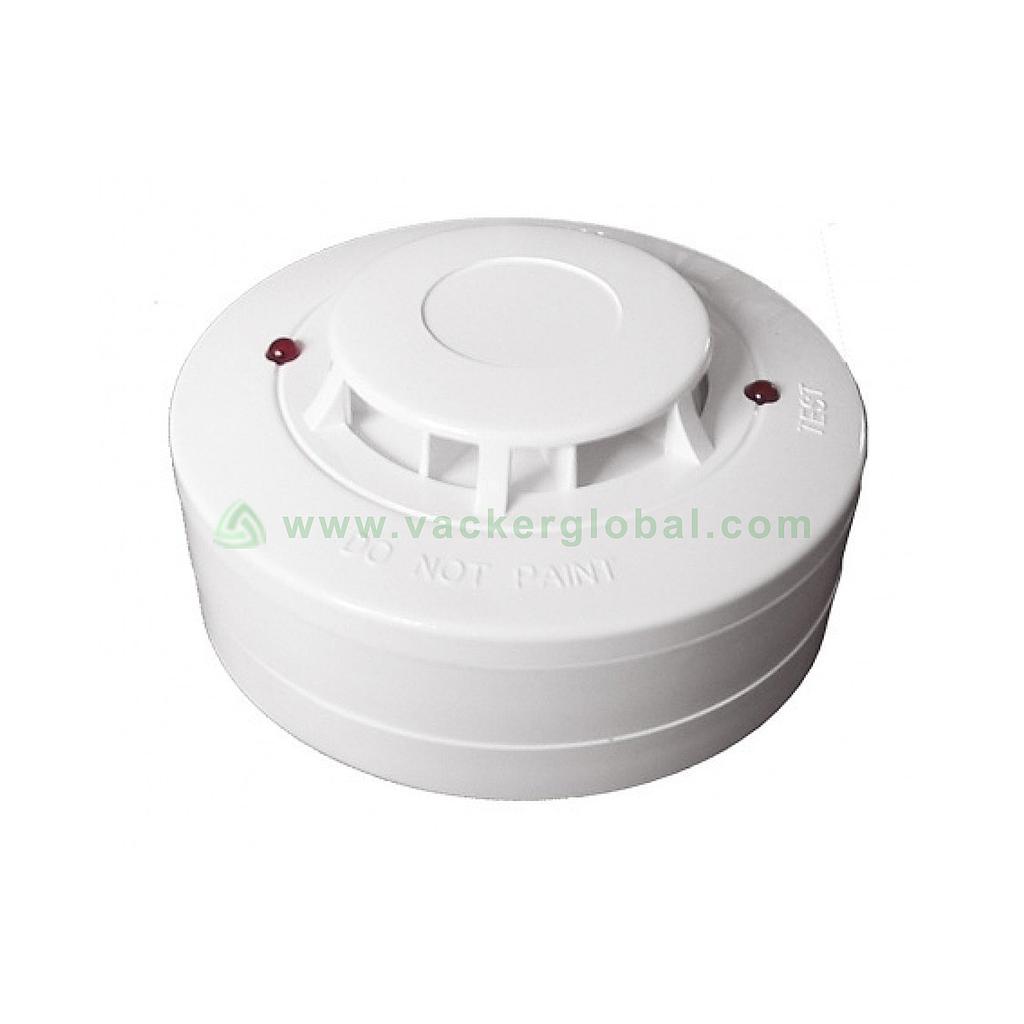

Optical Smoke Detector

Optical Smoke Detector

OPTICAL SMOKE DETECTOR model no [VAC- optical-smoke-detector]
Power: 10.5...14V DC
Start-up time: 60 s
Alarm indication: Red LED, switching a relay
Relay contact: up to 1A / 30V DC (0.5A / 125V AC)
Detection: Contains an optical detection chamber
Protected area: Max. 40 m2 (430 sq. ft), max. height 7 m (22 ft)
Distances: Max. Distance between detectors 8 m (25 ft), max distance from a wall 4 m (13 ft)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Max air velocity: 600 m/min
Test: Alarm can be activated by holding a magnet near the TEST point
Standard: Conforms to EN54-7
Operating environment: Indoor
Cover: IP 42 (EN 60 529)
Detector Input: Voltage detection (110/230V)
Detector interface: Connect to any dry contact DI (digital input)

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us


    Optical Smoke Detector is designed for detecting the smoke and signals a fire alarm

    Optical Smoke Detector is device used for smoke detection and fire alarm signalization the smoke detector uses the optical detector chamber for sensing of the combustion products in air. The device does not respond to the temperature changes. The detector is suitable for every room which has the fluctuating temperature. For example IT server rooms, telco systems, food processing, boiler stations etc.

    If the device detects the smoke the relays are activated. As FDR26 do not react to the temperature changes, it is suitable for the installation in the data centers and the telco rooms.

    The optical smoke detection gives reactions to the smoke that enter into the detection chamber. The presence of the smoke is indicated or shown by the detection chamber while it is free from the smoke particles.

    Applications

    1. It is used in IT/ Telco system and server rooms.

    2. It is used in kitchen food processing

    3. It is used in boiler rooms.

    Features

    1. It detects the smoke.

    2. It consists of red LED light alarm indicator.
