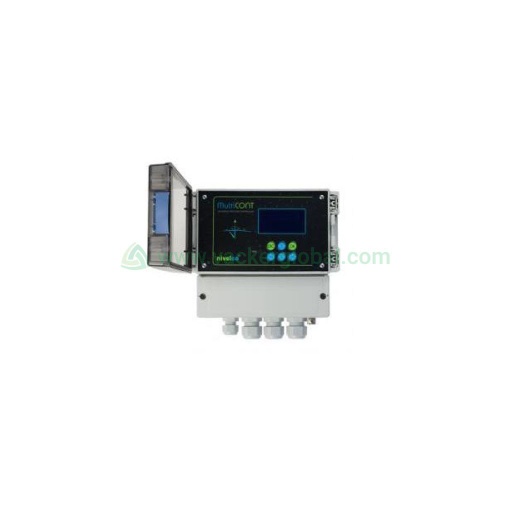

A common interface between the HART®-enabled intelligent level transmitters from NIVELCO and the other components of the process control system, such as the PCs, PLCs, displays, and actuators, is provided by the MultiCONT (MULTICHANNEL PROCESS CONTROLLER) unit. In addition to serving as an interface, the MultiCONT controls intricate activities while ensuring that the 2-wire transmitters are powered. A maximum of 15 regular or 4 Ex ia certified NIVELCO HART®-capable 2- and/or 4-wire transmitters can communicate with the MultiCONT device.

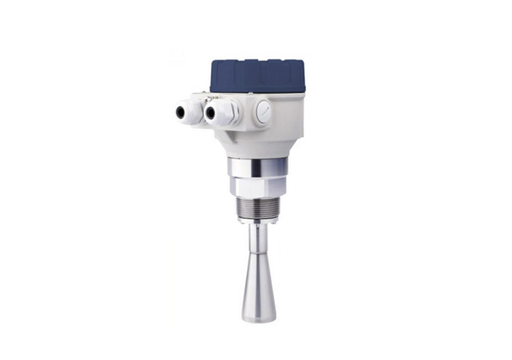

The maximum number of transmitters in a loop when using MultiCONT with NIVELCO's MicroTREK or PiloTREK microwave level transmitters should not be more than 6 pieces for regular transmitters and 2 pieces for Ex version transmitters. More MultiCONT units can be connected in series through an RS485 line if a system has more transmitters than a single MultiCONT unit is capable of handling. The MultiCONT allows for the remote programming of the transmitters as well as the downloading of the settings and measured data.

    Features:

• The commissioning of a process control system made up of any HART®-based intelligent (level, temperature, or pressure) transmitters is adaptable thanks to the Universal Process Controller.

• Easy 6-button programming

• Trend logging into internal memory or an SD card

• USB connector for downloading data from internal  FLASH memory

• Easy 6-button programming

• Galvanically isolated transmitter outputs between 4 and 20 mA

• Depending on the transmitters' kind 1 to 15 channels (standard) or 1 to 4 channels (Ex ia)

• Large LCD or OLED panel with 128 × 64 pixels that is extremely informative

•   A version that is naturally safe

    Specifications:

• Transmitter power supply voltage - 30 V DC / 60 mA

• Display - 128 x 64 dot-matrix

• Relay - Max. 5 pcs. SPDT 250 V AC, AC1, 5 A

• Analog output - Max. 2 pcs., galvanically isolated 4 – 20 mA, max. load of 500 Ohm, with overvoltage protection

• A number of powered transmitters - Max. 15 pcs. standard, or max. 4 pcs. Ex ia

• RS485 interface -

• ”user” - Galvanically isolated, HART® / Modbus® protocol

• ”module” - Galvanically isolated, HART® protocol

• Logger unit - Capacity: FLASH = 65 000 entries; SD card = depends on the card! (max. 64 GB)

• Housing material - Polycarbonate (PC)

• Mounting Wall - mounted

• Ambient temperature - -20 °C … +50 °C (-4 °F … +122 °F)

• Ingress protection - IP65

• Electrical protection - Class I / III

• Mass - 0.9 kg (1.98 lb)
