Select Cycle
Select Cycle model no [VAC- Select- Cycle]
VSKU:
This product is no longer available.
Introduction

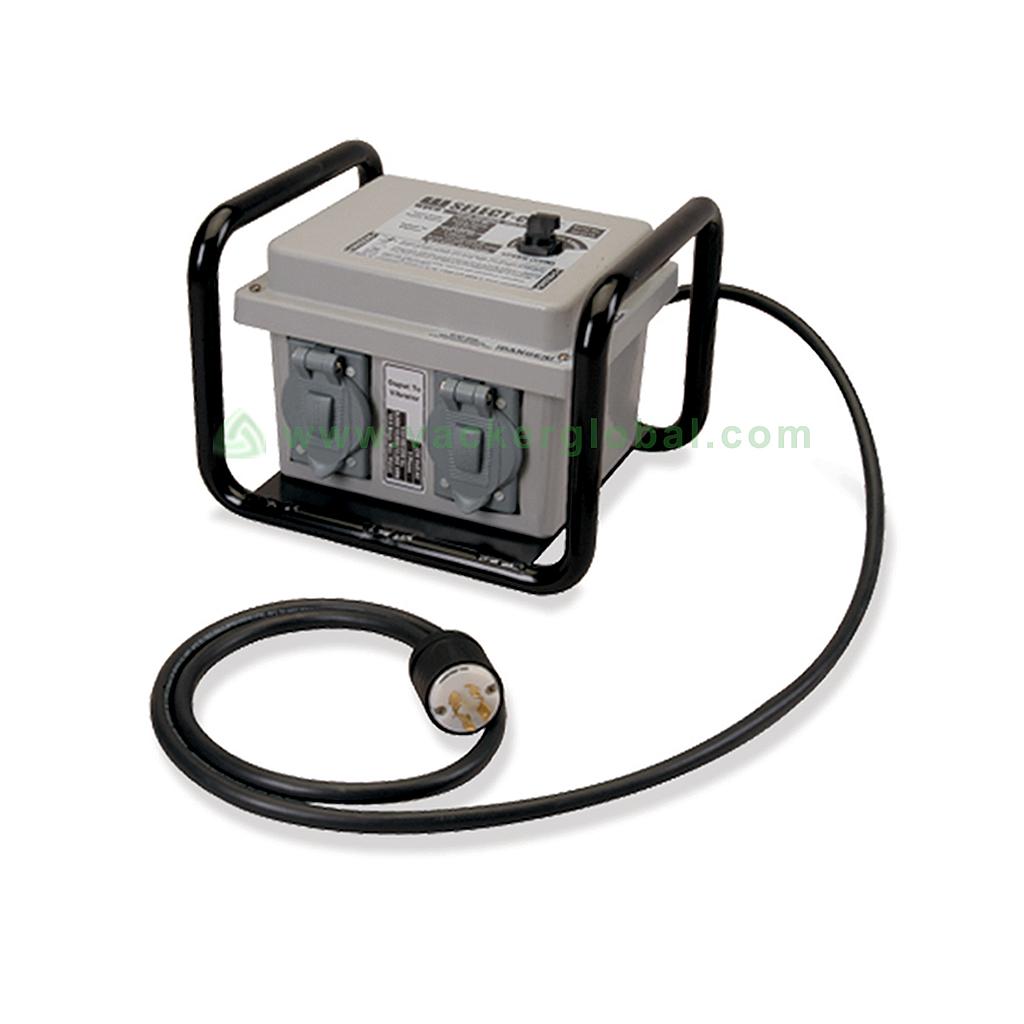

The SELECT-Cycle converter is intended to power three-phase, high-cycle vibrators using a standard, single-phase, 50/60 Hz, 230V power source. Internally, the converter uses a Variable Frequency Drive (VFD). The VFD converts this single-phase power to the required three-phase 133/200 Hz power required by high-cycle vibrators. The VFD does this by using the single-phase power to charge a DC bus. It then switches the power on and off very rapidly to simulate the sinusoidal voltage required by high-cycle vibrators. The frequency of the supplied voltage determines the speed of high-cycle vibrators. This converter outputs three frequencies: 133, 180 and 200 Hz. These frequencies correspond to vibration speeds of 8000, 10,800 and 12,000 vpm. Select this speed with the SELECT-Cycle rotary switch which can also be switched to the OFF position. The vibrators plug into two Hubbell (#HBL7410BG) or Leviton (#7420CR), 20 A, 4-pole receptacle outlets. Two plugs that fit these receptacles are Pass & Seymour Model #7411SS and Hubbell #7411GBC.
Applications of Select Cycle model no [VAC- Select- Cycle]
It can be used in concrete finishing
Features of Select Cycle model no [VAC- Select- Cycle]
It allows contractor to select the speed (8,000, 10,800, & 12,000 vpm) needed for the job
It adapts 230V generator or other single phase source to 230V, 3-phase
It runs two Wyco High-Cycle vibrators and maintains speed
It has rugged construction & protective frame
It keeps vibrators from surging
We supply Select Cycle that can be used in various industries and applications in the United Arab Emirates. Contact us for this Select Cycle in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
