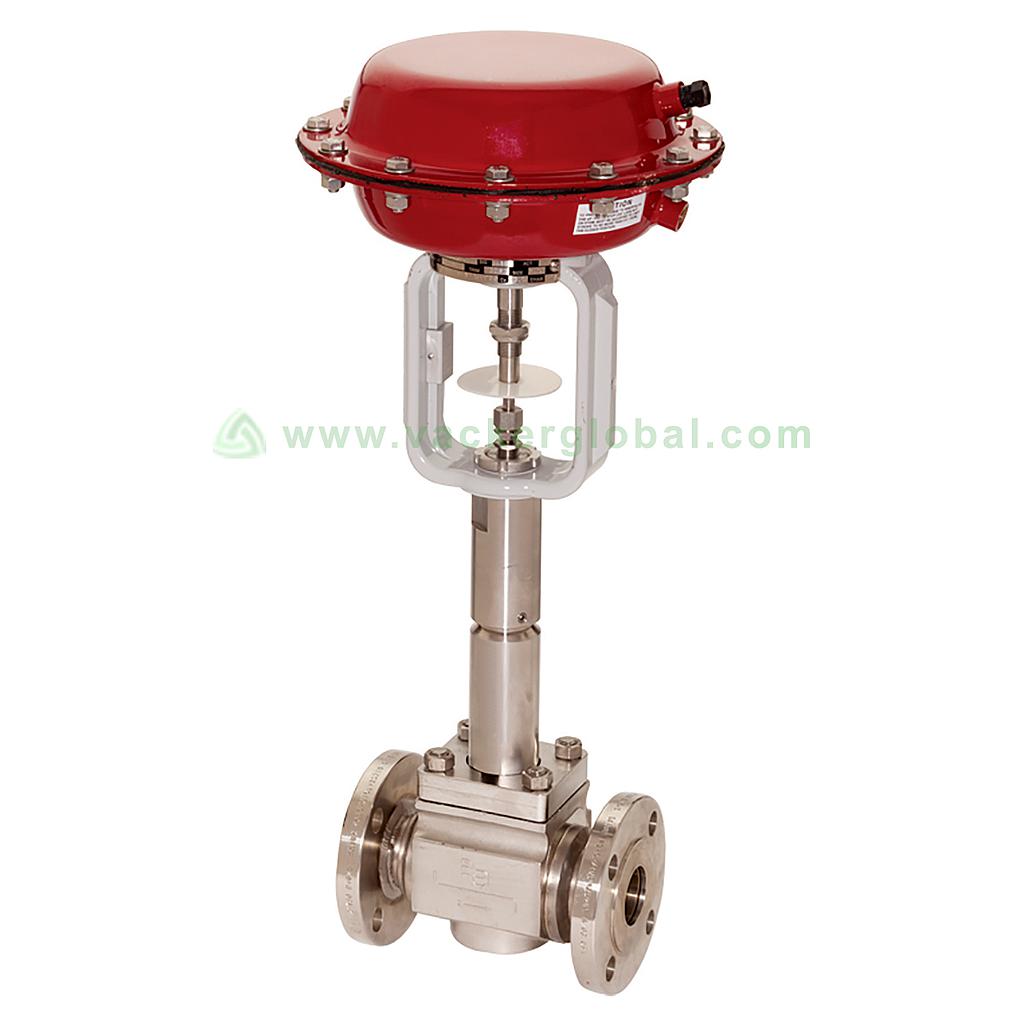

Series 9000 Extended Bonnet Control Valve

Series 9000 Extended Bonnet Control Valve

Series 9000 Extended Bonnet Control Valve model no [VAC- Series- 9000 Extended- Bonnet- Control- Valve]



Size 1 to 2 in.
Temperature Range 100 to 1000 °F
Pressure Range Up to 720 PSI

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

    Series 9000 GCF control valve is available with ANSI raisedface flanges. The flanges are socket welded to the body and flange. The flange and nipple material is the same material as the body material. Flange faces have concentric serrations to provide superior gasket sealing. The unit is rated for either ANSI Class 150 or 300, depending on the flange. When the valve is supplied with CL150 flanges, the pressure vs. temperature rating of the valve assumes the rating of the flange or the packing, whichever is lower. Consult the factory for limits of standard and optional innervalve materials.

     Applications of Series 9000 Extended Bonnet Control Valve model no [VAC- Series- 9000 Extended- Bonnet- Control- Valve]

    1. It can be used in petrochemical

    2. It can be used in refining

    3. It can be used in chemical metering

    Features of Series 9000 Extended Bonnet Control Valve model no [VAC- Series- 9000 Extended- Bonnet- Control- Valve]

    • It is designed to ANSI and ISA standards

    • It has dual body mounting (NPT/Flangeless)

    • It has wide range of innervalves

    • It has linear, Equal Percent or On-Off

    • It has ANSI Class IV seat leak standard

    • It has encapsulated body gasket

    • It has MoS2 filled nylon stem bushings

    • It has no brass or asbestos

    • It has epoxy coated steel parts

    • It has adjustable spring loading

    • It has replaceable seats (reduced Cv innervalves only)

    Specifications of Series 9000 Extended Bonnet Control Valve model no [VAC- Series- 9000 Extended- Bonnet- Control- Valve]

    • Its size is 1 to 2 in.

    • Its working temperature range is 100 to 1000 °F

    • Its pressure range is Up to 720 PSI

     We supply Series 9000 Extended Bonnet Control Valve that can be used in various industries and applications in the United Arab Emirates. Contact us for this Series 9000 Extended Bonnet Control Valve in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
