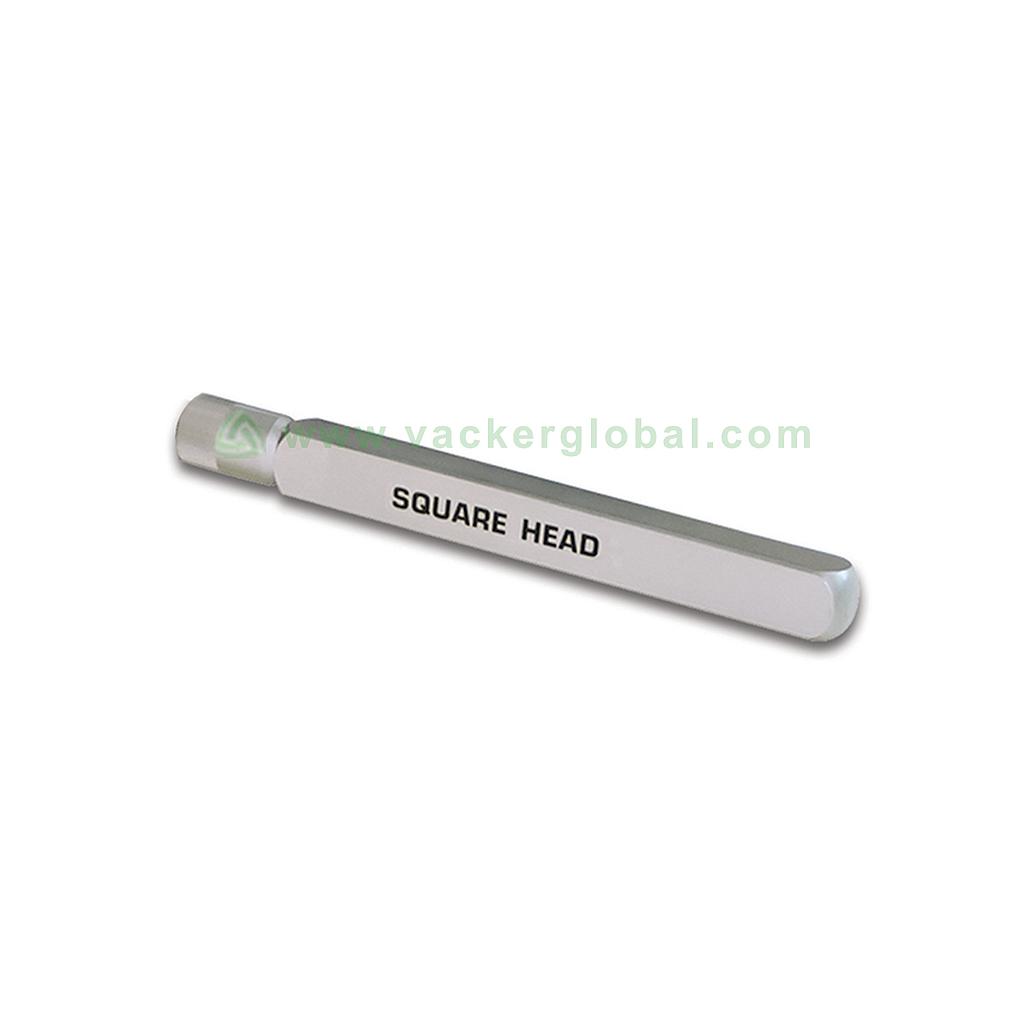

Square Head for Concrete Vibrators

Square Head for Concrete Vibrators

Square Head for Concrete Vibrators model no [VAC- Square- Head -for Concrete- Vibrators]



Square Head Size
Equivalent Round
Head Size
Width of Vibration
Force in lbs
@ 10,500 vpm
13/16 in
1 in
5 to 8 in
138
1 in
1 5/16 in
7 to 10 in
310
1 3/8 in
1 3/4 in
9 to 13 in
720
1 3/4 in
2 1/4 in
11 to 17 in
1150
2 in
2 1/2 in
13 to 22 in
1511
2 1/4 in
2 7/8 in
15 to 28 in
1983

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

    Square Head for Concrete Vibrators finishes the job faster because the Square Head has up to 27 percent more surface area than a round head. It consolidates concrete up to 50 percent faster due to its unique orbit pattern. It offers longer head life than other designs because every Square Head is machined from solid bar stock and hardened for extra durability, eliminating flimsy threaded head caps, and has more material in the corners so that heads run cooler.


    Applications of Square Head for Concrete Vibrators model no [VAC- Square- Head -for Concrete- Vibrators]

    1. It can be used in concrete finishing

    Features of Square Head for Concrete Vibrators model no [VAC- Square- Head -for Concrete- Vibrators]

    • It features a constantly changing vibration pattern

    • It provides 22% more displacement

    • It offers 20% to 50% faster consolidation

    • It is more effective in low-slump concrete than round heads

    • It is designed with hardened steel; the Wyco Square Head provides higher force levels, greater amplitude, longer wear, and unmatched reliability.

    • It has optional Polyurethane coated heads available to prevent rebar damage

    Specifications of Square Head for Concrete Vibrators model no [VAC- Square- Head -for Concrete- Vibrators]


    Square Head Size

    Equivalent Round

    Head Size

    Width of Vibration

    Force in lbs

    @ 10,500 vpm

    13/16 in

    1 in

    5 to 8 in

    138

    1 in

    1 5/16 in

    7 to 10 in

    310

    1 3/8 in

    1 3/4 in

    9 to 13 in

    720

    1 3/4 in

    2 1/4 in

    11 to 17 in

    1150

    2 in

    2 1/2 in

    13 to 22 in

    1511

    2 1/4 in

    2 7/8 in

    15 to 28 in

    1983

    We supply Square Head for Concrete Vibrators that can be used in various industries and applications in the United Arab Emirates. Contact us for this Square Head for Concrete Vibrators in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
