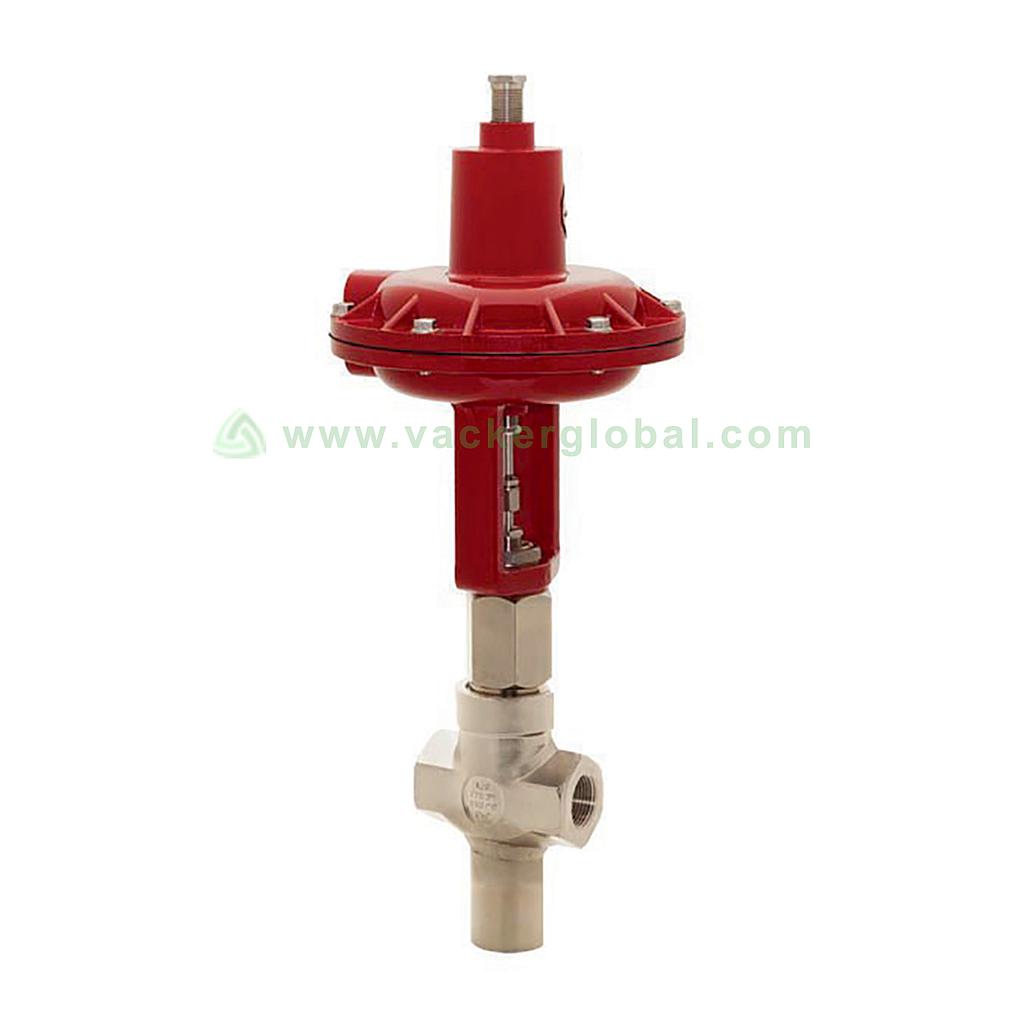

Type 1118 Three-Way and Diverting Valve
Type 1118 Three-Way and Diverting Valve model no [VAC- Type 1118- Three-Way- and Diverting- Valve]
Size 3/4 to 1 in.
Temperature Range 70 to 800 °F
Flow Range 0.05 to 5.0 cv
Pressure Range Up to 1500 PSI
VSKU:
This product is no longer available.
Introduction
Type 1118 three-way valve is available in either 3/4 in. (19.1 mm) or 1 in. (25.4 mm) sizes for modulating control of liquids, gases, or steam in either mixing or diverting applications. The unit features one common port and two non-common ports. When used in a diverting application, the common port is piped as the valve inlet with flow proportionally controlled through the two outlet ports. When used in a mixing application, the common port is piped as the outlet with incoming fluid entering the two non-common ports. In this application, the inlet pressure to the two inlets should be the same. Each inner valve within the unit is connected by a common stem and is stroked simultaneously by the actuator. This action cause’s one orifice to open as the other is closing. The Cv of each inner valve can be the same or of different value, depending on the requirements of the application
Applications of Type 1118 Three-Way and Diverting Valve model no [VAC- Type 1118- Three-Way- and Diverting- Valve]
It can be used in petrochemical
It can be used in refining
It can be used in chemical metering
Features of Type 1118 Three-Way and Diverting Valve model no [VAC- Type 1118- Three-Way- and Diverting- Valve]
It has wide range of interchangeable trim sets
It has threaded bonnet for quick disassembly
It has choice of linear or quick opening characteristics
It has choice of Cv and characteristic (linear or QO) on each port
It has TFE chevron packing
It has ANSI Class III shutoff
Specifications of Type 1118 Three-Way and Diverting Valve model no [VAC- Type 1118- Three-Way- and Diverting- Valve]
Its size is 3/4 to 1 in.
Its working temperature range is 70 to 800 °F
Its flow range is 0.05 to 5.0 cv
Its pressure range is Up to 1500 PSI
We supply Type 1118 Three-Way and Diverting Valve that can be used in various industries and applications in the United Arab Emirates. Contact us for this Type 1118 Three-Way and Diverting Valve in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
