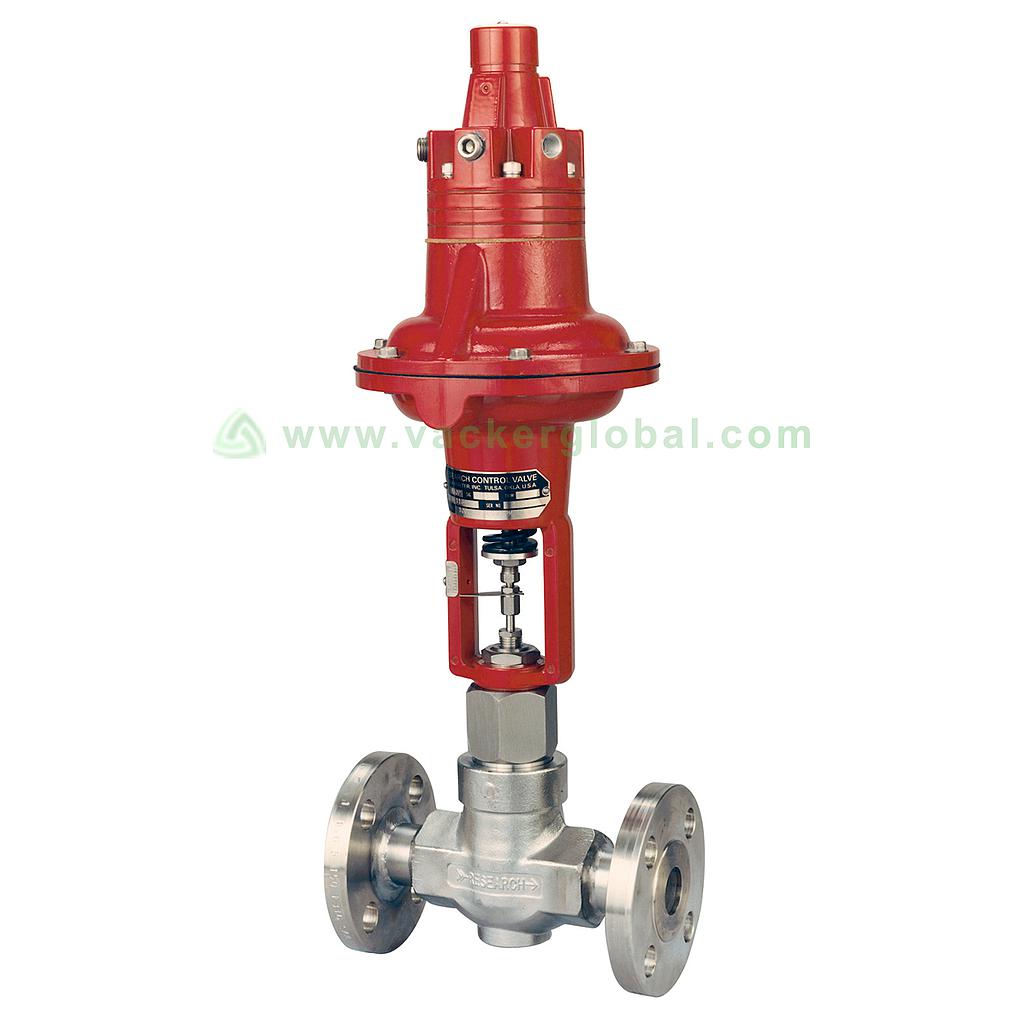

Type 1499 Standard Flange Globe Control Valve

Type 1499 Standard Flange Globe Control Valve

Type 1499 Standard Flange Globe Control Valve model no [VAC- Type 1499- Standard -Flange Globe-Control Valve]



Size 3/4 to 1 in.
Temperature Range 70 to 1000 °F
Flow Range 0 to 2.5 cv
Pressure Range Up to 5,000 PSI

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

     Type 1499 globe control valve is designed to fit directly into pipelines of the same flange size and rating. Its compact size and light weight make it especially suited to modulating control of medium to low flow rates within the pressure range of the flanges. Its welded construction makes it readily available in a variety of materials and in other types of flanges. Special face-to-face dimensions, as well as mixing of flange size and body size, are also available on request. Type 1499 valves are widely used in industrial applications where flanged-type ends are desired to facilitate removal of the unit from the line or to comply with specific piping standards. In low flow applications, the unit occupies much less space than its larger counterparts.



    Applications of Type 1499 Standard Flange Globe Control Valve model no [VAC- Type 1499- Standard -Flange Globe-Control Valve]

    1. It can be used in petrochemical

    2. It can be used in refining

    3. It can be used in chemical metering

    Features of Type 1499 Standard Flange Globe Control Valve model no [VAC- Type 1499- Standard -Flange Globe-Control Valve]

    • It has interchangeable trim sets

    • It has class 150 or Class 300 raised face flanges

    • It has trim characteristics: Linear, equal percent, quick open or double taper

    • It has TFE chevron packing

    • It is ANSI Class IV shutoff (size J trim and larger)

    • It has threaded bonnet for quick disassembly

    Specifications of Type 1499 Standard Flange Globe Control Valve model no [VAC- Type 1499- Standard -Flange Globe-Control Valve]

    • Its size is 3/4 to 1 in.

    • Its working temperature range is 70 to 1000 °F

    • Its flow range is 0 to 2.5 cv

    • Its pressure range is Up to 5,000 PSI

     We supply Type 1499 Standard Flange Globe Control Valve that can be used in various industries and applications in the United Arab Emirates. Contact us for this Type 1499 Standard Flange Globe Control Valve in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
