Type 1711 Severe Service Valve

Type 1711 Severe Service Valve

Type 1711 Severe Service Valve model no [VAC- Type 1711 –Severe- Service Valve]



Size 1/2 to 1 in.
Temperature Range 75 to 850 °F
Flow Range 0.05 to 6.0 cv
Pressure Range Up to 5000 PSI

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

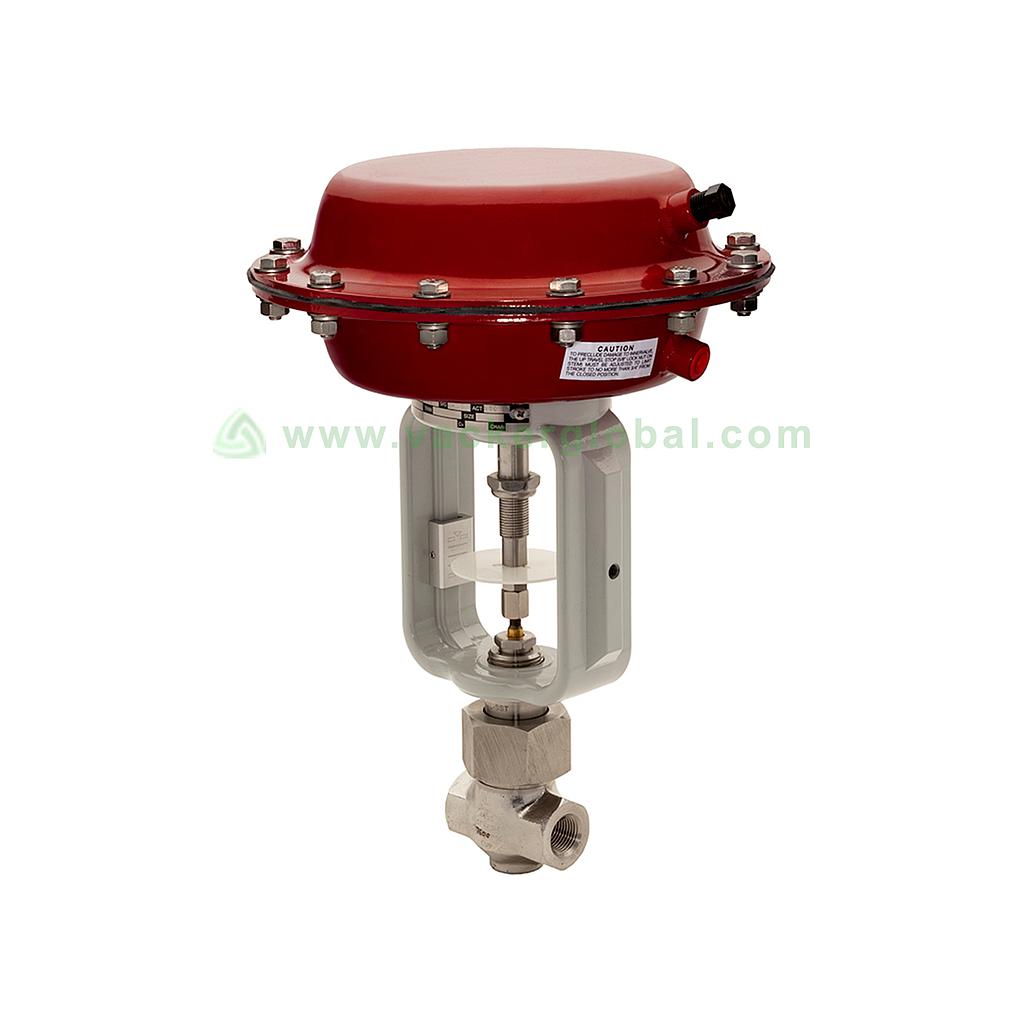

    The Type 1711 valve is supplied with a 35 sq. in. actuator that can be either Air-to-Open (ATO) or Air-to-Close (ATC). Due to the weight of the actuator, external support is required for the valve. The actuator must be supported with external brackets and must be mounted to a suitable surface for total valve weight support

    Applications of Type 1711 Severe Service Valve model no [VAC- Type 1711 –Severe- Service Valve]

    1. It can be used in petrochemical

    2. It can be used in refining

    3. It can be used in chemical metering

    Features of Type 1711 Severe Service Valve model no [VAC- Type 1711 –Severe- Service Valve]

    • It has interchangeable trim sets

    • It has heavy duty union bonnet

    • Its trim characteristics: Linear, equal percent, quick open or double taper

    • It has TFE chevron packing

    • It has Stellite inlaid innervalves

    • It has ANSI Class IV shutoff

    • It has high pressure and temperature rating

    • It has encapsulated graphite body bonnet gasket

    • It has dual IEC 534 (NAMUR) accessory mounts

    • It has adjustable spring preload and up-travel stop

    Specifications of Type 1711 Severe Service Valve model no [VAC- Type 1711 –Severe- Service Valve]

    • Its size is 1/2 to 1 in.

    • Its working temperature range is 75 to 850 °F

    • Its flow range is 0.05 to 6.0 cv

    • Its pressure range is Up to 5000 PSI

    We supply Type 1711 Severe Service Valve that can be used in various industries and applications in the United Arab Emirates. Contact us for this Type 1711 Severe Service Valve in the Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman and Fujairah too.
