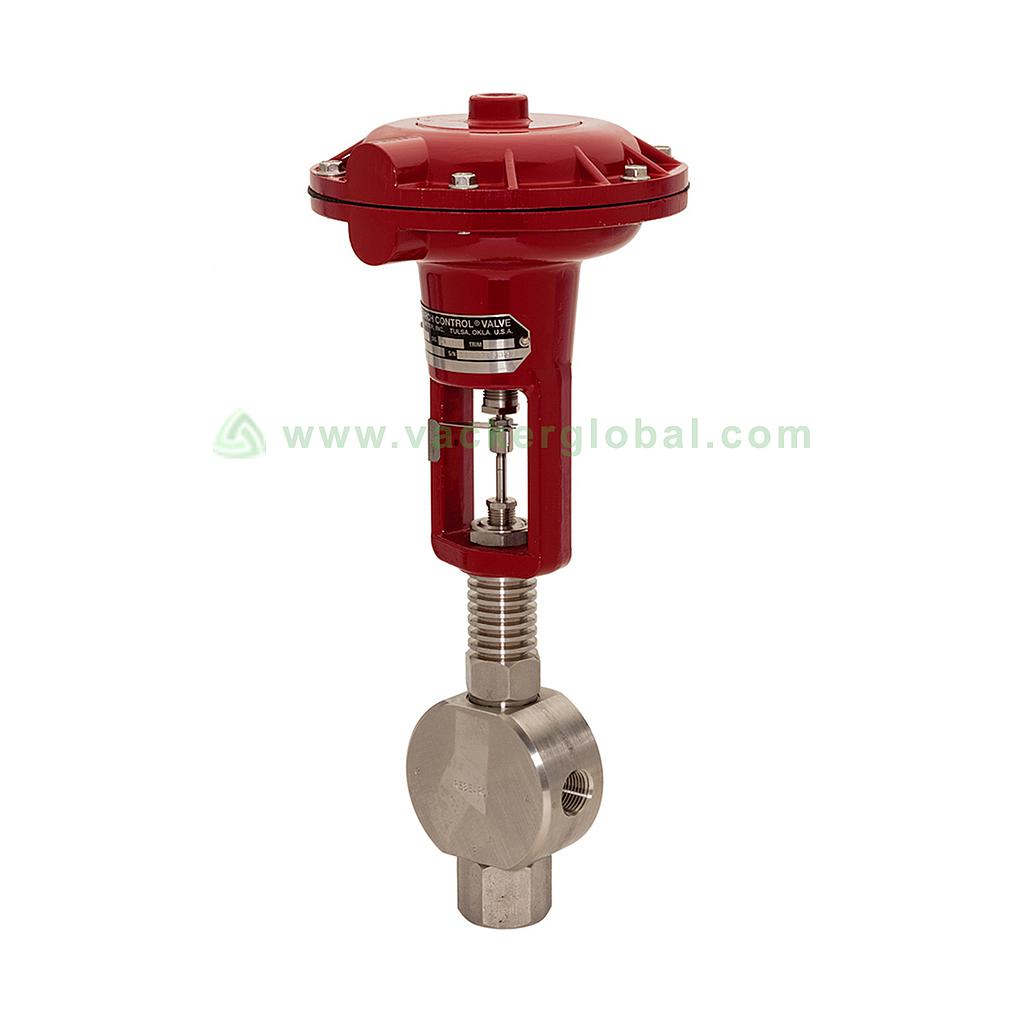

Type 564 Three-Way and Diverting Valve

Type 564 Three-Way and Diverting Valve

Type 564 Three-Way and Diverting Valve model no [VAC- Type 564- Three-Way- and Diverting -Valve]



Size 1/4 to 1/2 in.
Temperature Range 70 to 800 °F
Flow Range 0.05 to 2.5 cv
Pressure Range Up to 1500 PSI

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

    The Type 564 three-way valve is available in either 1/4 in. (6.4 mm) or 1/2 in. (12.7 mm) sizes for modulating control of liquids, gases or steam in either mixing or diverting applications. The unit features one common port and two non-common ports. The common port is piped as the valve inlet with flow proportionally controlled through the two outlet ports when used in a diverting application. The common port is piped as the outlet with incoming fluid entering the two non-common ports when used in a mixing application. In this application, the inlet pressure to the two inlets should be the same. Each inner valve within the unit is connected by a common stem and is stroked simultaneously by the actuator. This action cause’s one orifice to open as the other is closing. The Cv, as well as the characteristic, of each inner valve can be the same or of different values, depending on the requirements of the application.

    Applications of Type 564 Three-Way and Diverting Valve model no [VAC- Type 564- Three-Way- and Diverting -Valve]

    1. It can be used in petrochemical

    2. It can be used in refining

    3. It can be used in chemical metering

    Features of Type 564 Three-Way and Diverting Valve model no [VAC- Type 564- Three-Way- and Diverting -Valve]

    • It has wide range of interchangeable trim sets

    • It has choice of Cv and characteristic on each port

    • It has TFE chevron packing

    • It has ANSI Class III shutoff

    Specifications of Type 564 Three-Way and Diverting Valve model no [VAC- Type 564- Three-Way- and Diverting -Valve]

    Its size is 1/4 to 1/2 in.

    Its working temperature range is 7o to 800 °F

    Its flow range is 0.05 to 2.5 cv

    Its pressure range is Up to 1500 PSI

     We supply Type 564 Three-Way and Diverting Valvethat can be used in various industries and applications in the United Arab Emirates. Contact us for this Type 564 Three-Way and Diverting Valve in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
