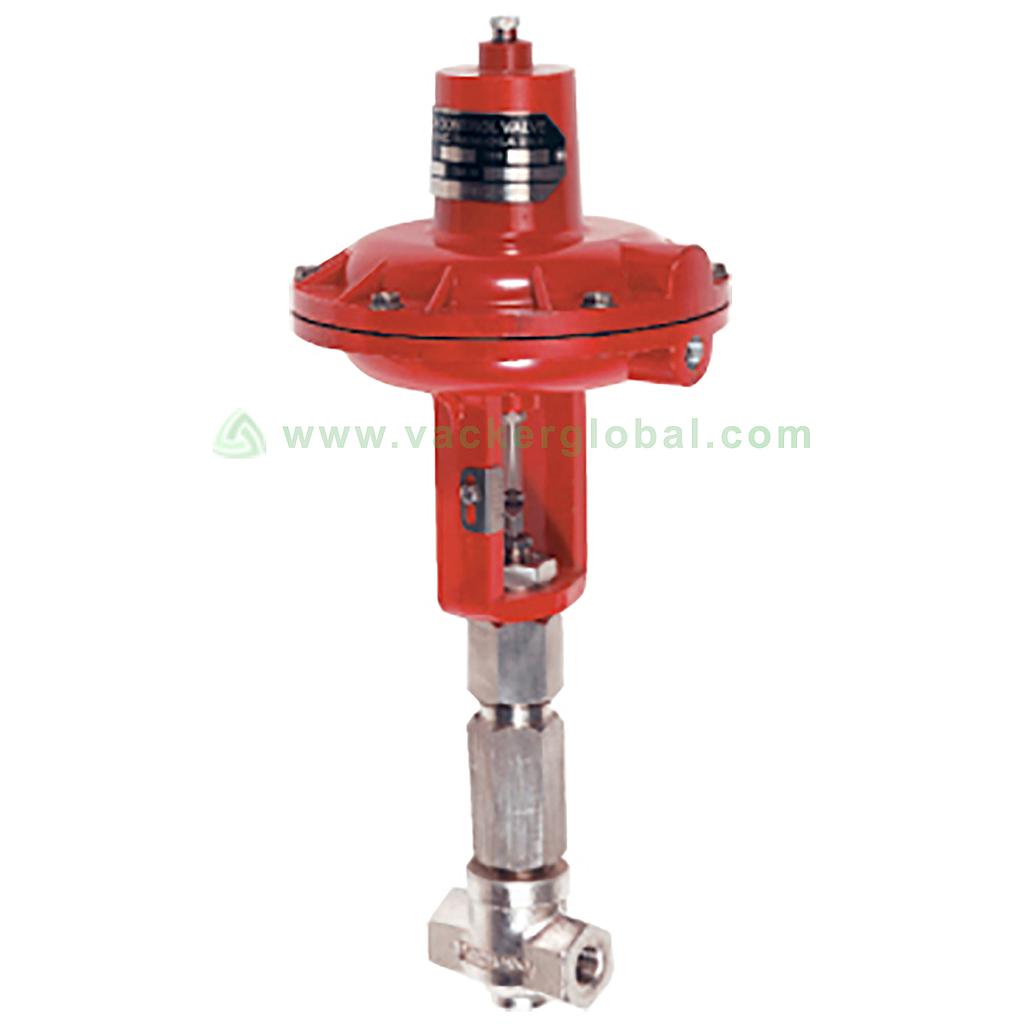

Type 808 Bellows Sealed Globe Control Valve

Type 808 Bellows Sealed Globe Control Valve

Type 808 Bellows Sealed Globe Control Valve model no [VAC- Type 808- Bellows- Sealed Globe -Control Valve]



Size 1/4 to 1 in.
Temperature Range 70 to 800 °F
Flow Range 0 to 6.0 cv
Pressure Range Up to 1,500 PSI

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

    Type 808 bellows sealed globe control valve is especially suited to applications where the possibility of packing leakage cannot be tolerated. The bellows forms a flexible static seal that is virtually leak-free as long as the integrity of the bellows remains intact. The unit contains a set of backup packing that, in many cases, will allow the valve to continue in service until repairs can be made, should the bellows fail. The bellows is available in two pressure ranges.The low pressure bellows fits 1/4 in. (6.4 mm), 1/2 in. (12.7 mm), 3/4 in. (19.1 mm) or 1 in. (25.4 mm) valves and is available in four materials. The high pressure bellows fits 1/2 in. (12.7 mm) through 1 in. (25.4 mm) valves and is rated at 1500 psi for throttling applications.

    Applications of Type 808 Bellows Sealed Globe Control Valve model no [VAC- Type 808- Bellows- Sealed Globe -Control Valve]

    1. It can be used in petrochemical

    2. It can be used in refining

    3. It can be used in chemical metering

    Features of Type 808 Bellows Sealed Globe Control Valve model no [VAC- Type 808- Bellows- Sealed Globe -Control Valve]

    • It has interchangeable trim sets

    • It has bellows packing

    • It has trim characteristics: Linear, equal percent, quick open or double taper

    • It has TFE CV ring backup packing

    • It has TFE bellows gasket

    Specifications of Type 808 Bellows Sealed Globe Control Valve model no [VAC- Type 808- Bellows- Sealed Globe -Control Valve]

    • Its size is 1/4 to 1 in.

    • Its working temperature range is 70 to 800 °F

    • Its flow range is 0 to 6.0 cv

    • Its pressure range is Up to 1,500 PSI

     We supply Type 808 Bellows Sealed Globe Control Valvethat can be used in various industries and applications in the United Arab Emirates. Contact us for this Type 808 Bellows Sealed Globe Control Valve in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman &  Fujairah too.
