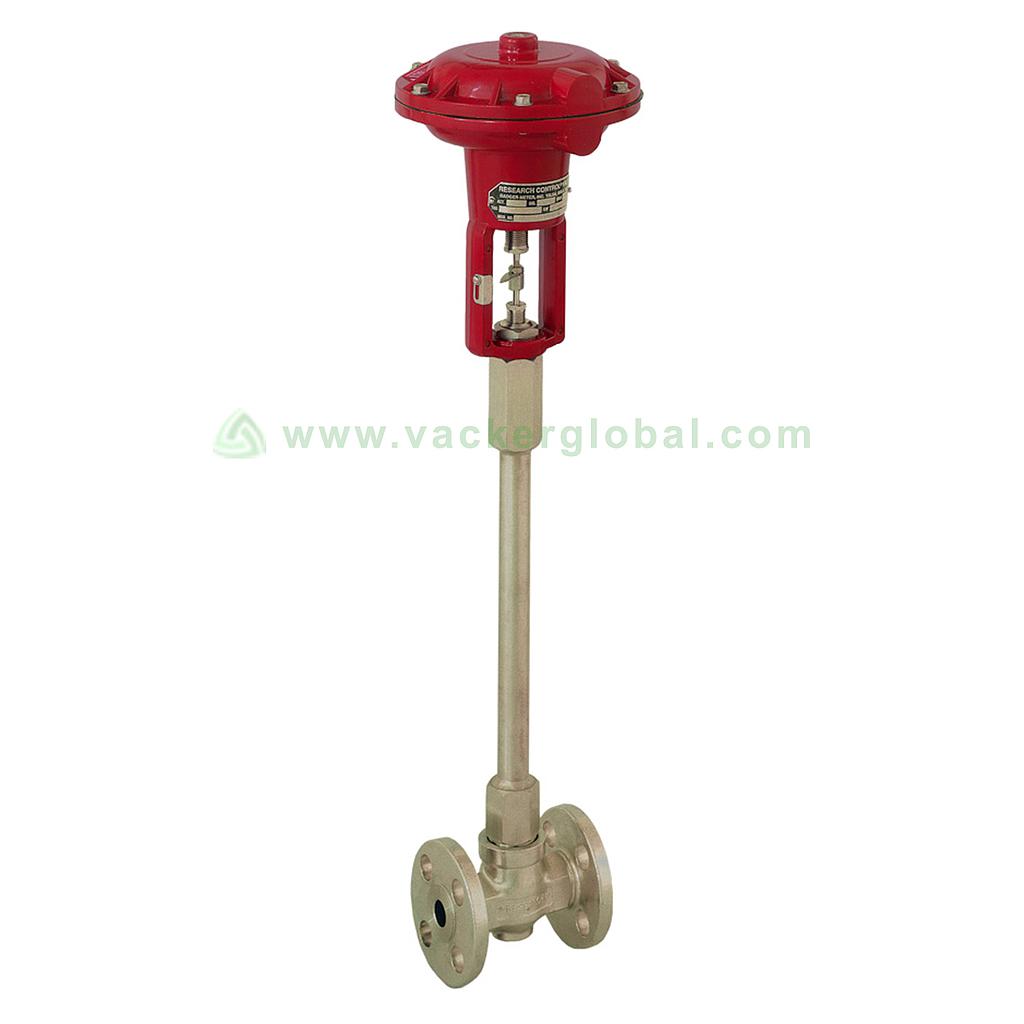

Type 884 Extended Bonnet (14 inch) Globe Control Valve

Type 884 Extended Bonnet (14 inch) Globe Control Valve

Type 884 Extended Bonnet (14 inch) Globe Control Valve model no [VAC- Type 884- Extended Bonnet -(14 inch) Globe- Control -Valve]



Size 1/4 to 1 in.
Temperature Range -450 to 1000 °F
Flow Range 0.00008 to 6.0 cv
Pressure Range 2500 PSI

Days
Hours
Mins
Secs
1

VSKU:

    This combination does not exist.


    Contact Us

    Share :

    Introduction

    884 extended bonnet globe control valve is available in varying lengths for 1/4 in. through 1 in. line sizes. It is specifically designed for control of extremely cold or hot fluids and gases. In cryogenic applications, the bonnet length serves to extend the packing area, as well as allow room for insulation around the body and bonnet. The design also facilitates cold box mounting. A casing flange is available as an option if sealing to the cold box is required. Other models are available to facilitate removal of the inner valve and seat from outside the cold box (Type CBX). In hot applications, the extended bonnet allows the standard TFE packing to be isolated from high temperatures. The factory should be consulted when service temperature exceeds 800° F (426° C).

    Applications of Type 884 Extended Bonnet (14 inch) Globe Control Valve model no [VAC- Type 884- Extended Bonnet -(14 inch) Globe- Control -Valve]

    1. It can be used in petrochemical

    2. It can be used in refining

    3. It can be used in chemical metering

    Features of Type 884 Extended Bonnet (14 inch) Globe Control Valve model no [VAC- Type 884- Extended Bonnet -(14 inch) Globe- Control -Valve]

    • It has wide range of  interchangeable trims

    • It has choice of  linear or  equal percent on most trims

    • It has TFE chevron ring  packing

    • It has ANSI Class IV shutoff (size “o” and larger)

    • It has guided iner valve

    Specifications of Type 884 Extended Bonnet (14 inch) Globe Control Valve model no [VAC- Type 884- Extended Bonnet -(14 inch) Globe- Control -Valve]

    • Its size is 1/4 to 1 in.

    • Its working temperature range is -450 to 1000 °F

    • Its flow range is 0.00008 to6.0 cv

    • Its pressure range is 2500 PSI

    We supply Type 884 Extended Bonnet (14 inch) Globe Control Valve that can be used in various industries and applications in the United Arab Emirates. Contact us for this Type 884 Extended Bonnet (14 inch) Globe Control Valve in the Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman and Fujairah too.
