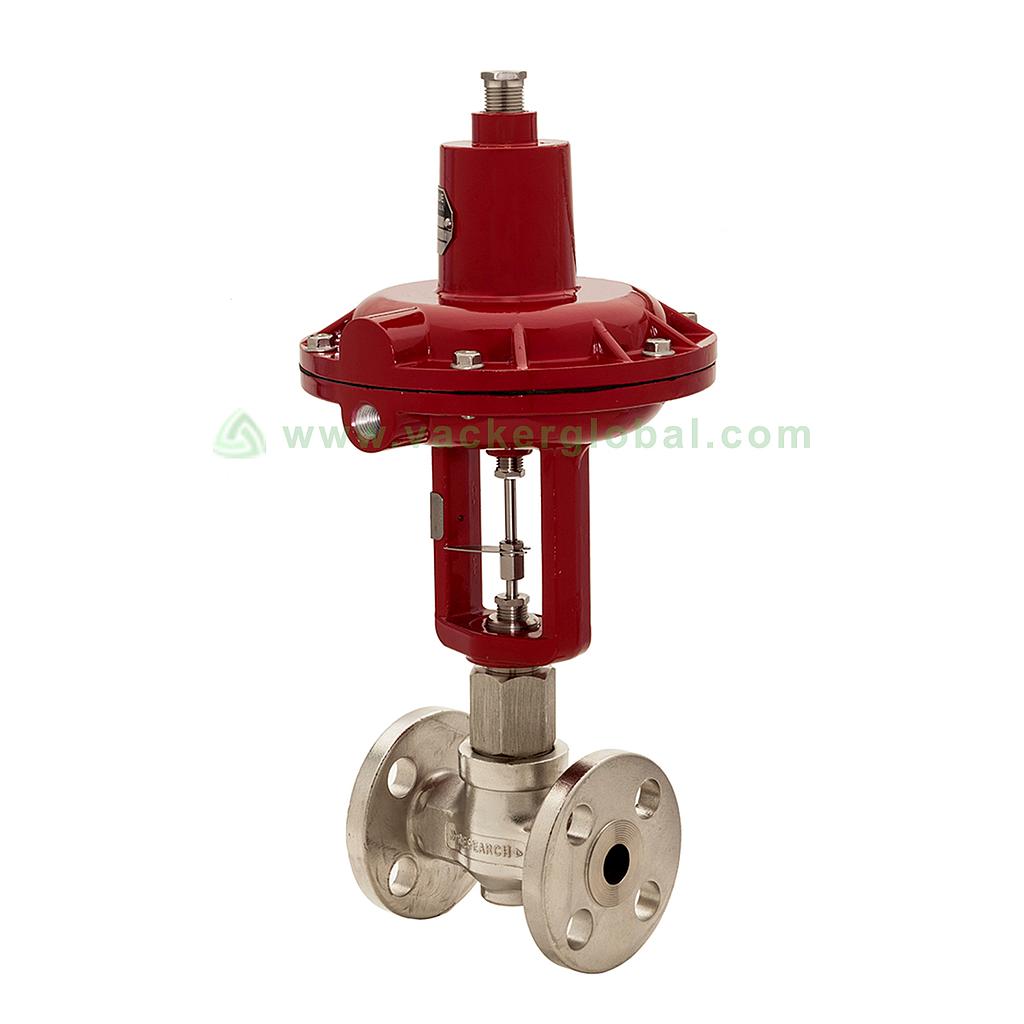

Types 860 & 809 Standard Flange Globe Control Valve
Types 860 & 809 Standard Flange Globe Control Valve model no [VAC- Types -860 & 809 Standard-Flange Globe -Control Valve]
Size 1/2 in.
Temperature Range 70 to 1000 °F
Flow Range 0 to 2.5 cv
Pressure Range Up to 5,000 PSI
VSKU:
This product is no longer available.
Introduction
The U.S. Type 860 globe control valve consist of a 1/2 in. (12.7 mm) body with 150 lb ANSI raised face flanges. It is designed to fit directly into pipelines of the same flange size and rating. Its compact size and light weight make it especially suited to modulating control of medium to low flow rates in the pressure range of 150 lb flanges. Its welded construction makes it readily available in a variety of materials. Other flange sizes and pressure ratings are available in the Type 809 valve assembly.
Applications of Types 860 & 809 Standard Flange Globe Control Valve model no [VAC- Types -860 & 809 Standard-Flange Globe -Control Valve]
It can be used in petrochemical
It can be used in refining
It can be used in chemical metering
Features of Types 860 & 809 Standard Flange Globe Control Valve model no [VAC- Types -860 & 809 Standard-Flange Globe -Control Valve]
It has interchangeable trim sets
It has class 150 raised face flanges
It has trim characteristics: Linear, equal percent, quick open or double taper
It has TFE chevron packing
It has ANSI Class IV shutoff (size J trim and larger)
It has threaded bonnet for quick disassembly
Specifications of Types 860 & 809 Standard Flange Globe Control Valve model no [VAC- Types -860 & 809 Standard-Flange Globe -Control Valve]
Its size is 1/2 in.
Its working temperature range is 70 to 1000 °F
Its flow range is 0 to 2.5 cv
Its pressure range is Up to 5,000 PSI
We supply Types 860 & 809 Standard Flange Globe Control Valve that can be used in various industries and applications in the United Arab Emirates. Contact us for this Types 860 & 809 Standard Flange Globe Control Valve in Dubai, Abu Dhabi, Sharjah, RAK, UAQ, Ajman & Fujairah too.
