Ultrasonic Diffuse Reflection Sensor
lectrical design PNP
Output function normally open / closed; (configurable)
Sensing range [mm] 6000
Communication interface IO-Link
Housing Threaded type
Operating voltage [V] 10...30 DC
Current consumption [mA] < 30
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 0.3
Converter frequency [kHz] 75
Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Total number of outputs 2
Electrical design PNP
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2.2
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 1
Number of analog outputs 1
VSKU: UIT504
More from this Category
CONTOUR SENSOR WAVELENGTH (650MM)
1,036.28 USD
Door Contact Switch
194.39 USD
Door Sensor
185.82 USD
Door Sensor
12.30 USD
Duct Air Temp Sensor TT-D-CVO
280.15 USD
Exceptionally fast temperature probe (TC Type K)
159.19 USD
Head Type Thermocouple TK-301-P-6-50
65.75 USD
Humidity/Temperature Probe with Cable (Saveris 2-H2)
337.32 USD
Humidity & Temperature Transmitter E2218
377.35 USD
Hygro-transducer
308.74 USD
JKWIRE-RTD PT100 TEFL
5.15 USD
Optical distance sensor O1D100
697.53 USD
Penetration Probe NTC with Ribbon Cable (2 meters)
330.53 USD
Photoelectric Smoke Detector 541NCSXT
128.65 USD
Portable Air Quality Monitor Series 500
1,949.63 USD
Power Failure Detector
100.05 USD
Programmable relay
242.99 USD
Programmable relay
244.42 USD

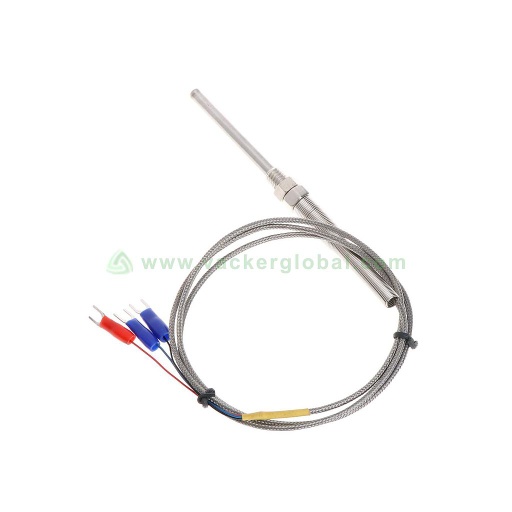

PT100 sensor 5mm, 50mm probe
