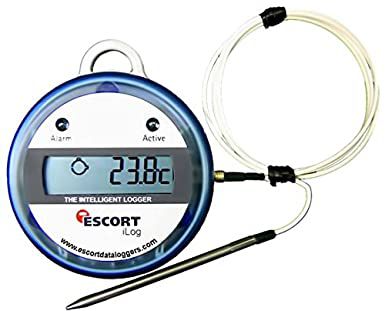

iLog Temperature Logger, One Internal & One External Sensor Probe EI-1E-DN-32-L

427.37 USD 427.37 USD 427.37 USD

1,495.00 AED

iLog Temperature Logger, One Internal & One External Sensor Probe EI-1E-DN-32-L

iLog Temperature Data Logger EI-1E-DN-32-L
with (1) internal & (1) external sensor probe
Temperature Range: Internal Sensor -40 to +70 °C
External Sensor -100 to +40°C
Memory Options : 32K; 32,064 readings (with one sensor)
16,032 readings each sensor (with two sensors)
Program Interval: 5 seconds to 10 days
Time Accuracy: ±1 minute per month at ambient temperatures
Sensors: Internal and/or external
Resolution: 0.1 °C / 0.1 °F / 0.1%
Alarm Configuration: High alarm; low alarm
Battery Life: 1-2 years (depending on usage)

VSKU: 1000000024

427.37 USD 427.37 USD 427.37 USD

1,495.00 AED

This combination does not exist.

Add to Cart Buy Now

Category:

Temperature Data Logger

Description
Ratings and Reviews

32000 readings Temperature data logger upto -100°C, with 1 each internal and external sensor & alarm

Multiple use, Temperature data logger with 1 each internal and external sensor for reading upto -100°C. It has memory capacity of 32000 readings. It has visual and audible alarms. Also it can be connected to a high volume hooter to generate alarms when excursions happen.

This is our iLog series temperature data logger for measuring upto -100°C. It has an internal and external sensor. Measuring range is -100°C to +40°C. It can generate pdf and Excel reports using our free software. It has a memory capacity of 32000 readings. This means it can record for more than 55 days if the sampling interval is 5 minutes.

This cryo temperature data logger with internal sensor and external sensor probe can measure upto -100°C. It requires our free software for programming and downloading the data. It has a dock to connect the device to the computer. The user can reuse this temperature data logger any number of times after downloading the data. The user can see the current readings on the screen of the logger.

Features

This is a high accuracy model of cryo data logger.
The audible beep alarm within the dry ice data logger alerts on excursions.
The probe sensor and internal sensor can record simultaneously.

Specifications

PRODUCT CODE VD-DL-TMP-CP-00116
MODEL EI-1E-DN-32-L
FREE SHIPPING No
MEASUREMENT PARAMETERS Temperature
UNIT OF MEASUREMENT °C or °F
MEMORY CAPACITY 32K; 32,064 readings
DURATION OF RECORDING 360 days
MEMORY TYPE Electronic
PROGRAM INTERVAL 5 seconds to 10 days
SENSORS Internal - 1 External sensor - 1
MEASURING RANGE (PARAMETER 1) -100 °C to +40 °C (-148 to +104°F)
ACCURACY (PARAMETER 1) ±0.35 °C
RESOLUTION 0.1 °C / 0.1 °F
SENSOR RESPONSE TIME Internal sensor – T90 of 12 minutes in moving air External sensor – T90 of 5 minutes
DISPLAY Yes
SPECIAL SOFTWARE REQUIRED FOR DATA DOWNLOAD? Yes
REMOTE MONITORING No
LCD OPERATING RANGE -20 °C to +70 °C (-4 °F to +158 °F)
ALARM THRESHOLDS Two
ALARM CONFIGURATION High & low
ALARM TYPE On screen
BOOKMARK Yes
PREPROGRAM OPTION User programmable
START OPTION Magnetic key
AUTO START No
START DELAY Yes
STOP OPTION After pre-defined readings or timer
DIMENSION Diameter 76mm, height 18mm
WEIGHT (KG) 0.0680
CASE MATERIAL Polycarbonate/ABS
POWER 3.6V ½AA lithium battery, user replaceable
IP RATING IP67
WARRANTY 24 months, excluding battery
CALIBRATION Upon request at extra charge
TEST CERTIFICATE Yes
OTHER CERTIFICATION ISO9001:2008, CE, RoHS, EN12830
BATTERY LIFE 1-2 years (depending on usage)
COMMUNICATION USB dock (to be separately purchased)
SOFTWARE Console Pro (Free)
DEFAULT FILE FORMAT PDF & LRF
DATA EXPORT TXT, CSV, SYLK & LCF
SECURITY Password protected (programmable using Console Pro Software) encrypted binary file is generated along with PDF
PLUG & PLAY DOWNLOAD OF DATA No
PACKAGE INCLUDES Data logger with battery
DETAILED MANUAL Read Manual / Download Manual
MANUFACTURER Cryopak, USA
