High Temperature Pasteurization Data Logger HJ-FP-V-16-CI

686.66 USD 686.66 USD 686.66 USD

2,402.00 AED

High Temperature Pasteurization Data Logger HJ-FP-V-16-CI

Food Pasteurization Logger HJ-FP-V-16-CI by Cryopak, USA.
This high-temperature data logger has an M6 type Thread Axial Probe of length 60mm.
It can measure temperature from 0°C to 125°C (32 °F to 257 °F).
This pasteurization temperature recorder can record 16,000 or 40,000 readings depending on the model.
You can program the data logger and download the data using our free Console Pro software.
The data recording frequency is programmable from 5 seconds to 255 minutes.
The battery life is between 1 to 2 years based on usage. Customer can replace the battery.


VSKU: 1000000046

686.66 USD 686.66 USD 686.66 USD

2,402.00 AED

    This combination does not exist.

    Add to Cart Buy Now

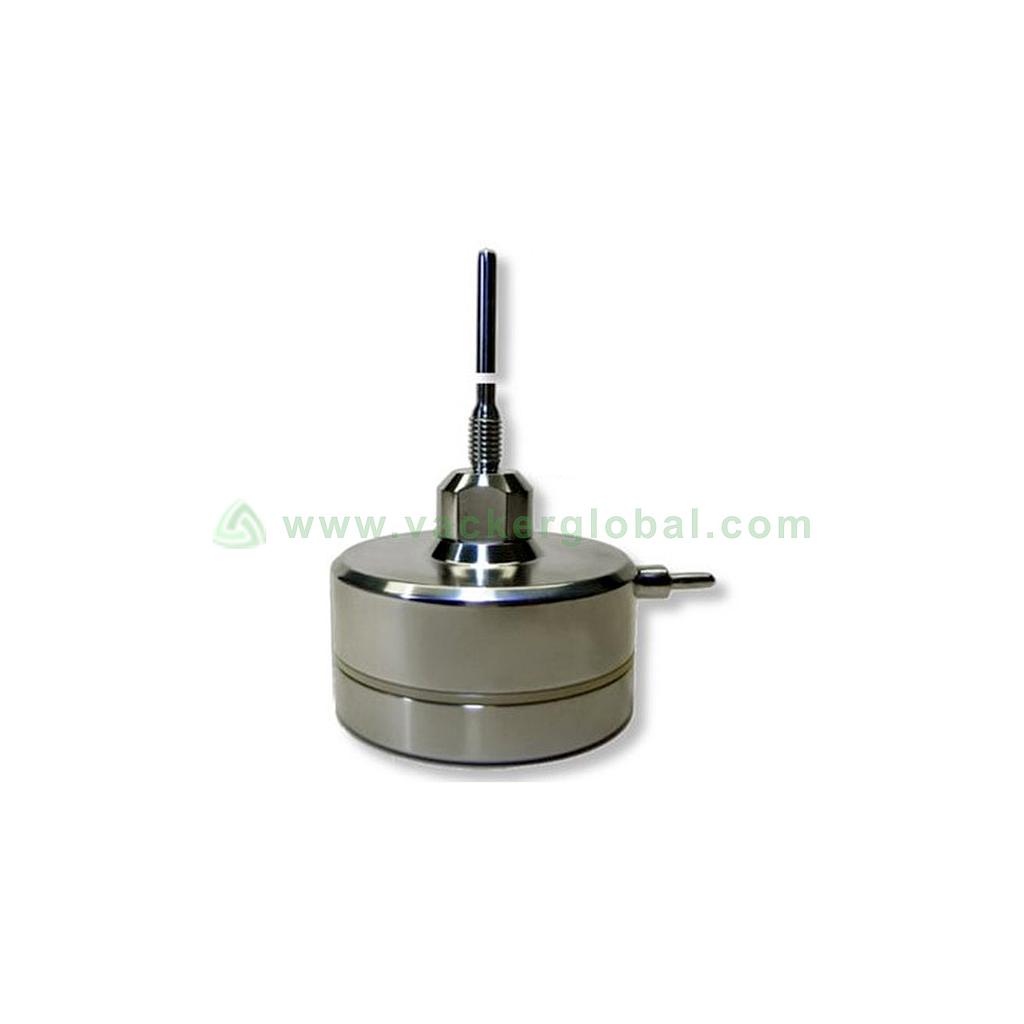

    Food pasteurization data logger with a stainless steel probe

    Multiple-use, Food pasteurization Temperature data logger with a memory capacity of 16000 readings. It is waterproof with IP68 rating. Different probe sizes can be ordered.

    Suitable for breweries, diaries, beverages, food, distilleries etc.

    This Food pasteurization temperature data logger has a stainless steel external sensor. It requires our free software for programming and downloading the data. It has a dock to connect the device to the computer. The user can reuse this temperature data logger any number of times after downloading the data.

    Specifications of High-temperature pasteurization temperature recorder

    1. Product code of this pasteurization recorder is VD-DL-TMP-CP-00131.

    2. Model number is HJ-FP-V-16-CI.

    3. The measuring parameter is temperature only.

    4. The measurement is programmable in °C or °F.

    5. The recording capacity is 16,000 readings or 40,000 readings.

    6. Based on programming interval, it can record upto 360 days.

    7. The memory type is electronic.

    8. Program interval is from 5 seconds to 255 minutes.

    9. The sensors type is one external sensor.

    10. The measuring range of temperature is from 0 °C to +125 °C or from 32 to 257 °F.

    11. Accuracy from 0 °C to +70 °C  is ± 0.35 °C.

    12. Accuracy from +70 °C to +100 °C ± 0.40 °C.

    13. Accuracy from +100 °C to +125 °C is ± 0.55 °C.

    14. Resolution of measurement is 0.5 °C or 1.0 °F.

    15. The response time for the external Sensor is T90 of 5 minutes in moving air.

    16. It doesn’t have a display.

    17. It requires our software Console pro for programming and downloading the data.

    18. There is no remote monitoring facility.

    19. It has two alarm thresholds.

    20. One each of High and Low alarm configurations are possible.

    21. The reports indicate the alarms.

    22. This pasteurization recorder is user programmable.

    23. The starting is either by a Magnetic key or is programmable for starting automatically.

    24. It is also possible to set a start delay.

    25. The stopping is by a timer or it stops after pre-defined number of readings. You can program this during the initial programming.

    26. The dimension of this pasteurization data logger is 49mm diameter and 28mm height without the stainless probe.

    27. Weight of this high temperature pasteurization logger is 0.250 kg.

    28. The body of this data logger is stainless Steel.

    29. It operates with a user replaceable high temperature lithium battery

    30. The ingress protection rating is IP68.

    31. The warranty is 24 months, excluding battery.

    32. We provide calibration at extra charges.

    33. We provide a standard test certificate as part of every device.

    34. Other certifications available for this high temperature recorder are ISO9001:2008, CE, RoHS and EN12830.

    35. The battery can last for 1-2 years depending on usage.

    36. The programming and data transfer is using a USB. You will need to purchase this dock separately. You can use one dock for many data loggers.

    37. The software generates reports in PDF & LRF formats.

    38. The software can export data in TXT, CSV, SYLK & LCF formats.

    39. You can provide added security with a password during the programming.

    40. The package includes one data logger with battery.

    41. This pasteurization data logger is manufactured by Cryopak, USA.
