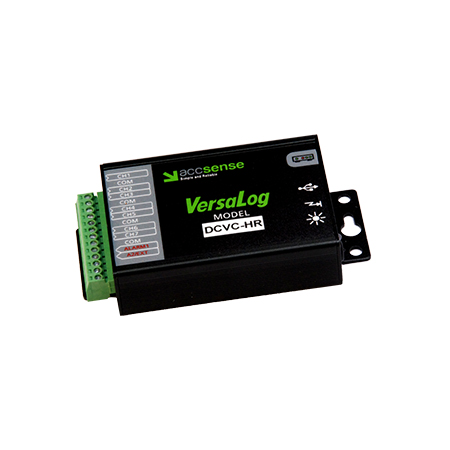

Voltage & Current Recording Data Logger DCVC-HR
1,133.48 USD 1,133.48 USD 1133.48 USD
3,965.00 AED
Voltage & Current Recording Data Logger DCVC-HR
Voltage & Current recorder, Data Logger model DCVC-HR.
Channels CH1 to CH4 (voltage): programmable range for each: 0 ~ 20 V,
0 to 2 V, CH5 to CH7 (current) programmable range for each:
0 to 20 mA
Accuracy Thermistor channel: reference temperature 0.36°F
Voltage channels: +/- 0.05% FSR @ 25°C for 20V channels,
+/- 0.1% FSR @ 25°C for 2V channels
Current channels: +/- 0.15% FSR @ 25°C
Load Resistor For current channel: 12 Ohms
Protection Voltage channel: +/- 40 VDC, Current channel: +/-100 mA
VSKU: 1000000090
/shop/product/1000000090-voltage-current-recording-data-logger-dcvc-hr-7229Voltage and Current Recording Data Logger DCVC-HR
The DCVC-HR is a self-contained, battery operated data logger for 8 channels of DC voltage and current. It can store up to 4MB of data in flash memory, equivalent to 2 million measurements. It accepts input signals from various sources like transmitters, sensors, and transducers.
With a 16-bit ADC, it provides precise readings for critical measurements. This data recorder is a built-in rugged aluminium enclosure with PCB coating, ensuring top-notch performance in challenging industrial environments.
Features
4 input channels for DC voltage
3 input channels for current
1 internal temperature thermistor
Sampling interval ranging from 20 milliseconds to 12 hours
Features fast sampling mode, alarm, and excitation output
Applications
Industrial process monitoring
Energy management
Quality control
Renewable energy
HVAC systems
Specifications
Channels CH1 to CH4 (voltage) programmable range for each 0~20 V
0 to 2V, CH5 to CH7 (current) programmable range for each 0 to 20 mA
Accuracy thermistor channel reference temperature 0.36 °F
Voltage channels +/- 0.05% FSR @25 °C for 20V channels, +/- 0.1% FSR @25 °C for 2V channels
Current channels +/- 0.15% FSR @25 °C
Load resistor for current channel 12 Ohms
Protection voltage channel +/- 40 VDC
Current channel +/- 100 mA
Voltage and Current Recording Data Logger DCVC-HR
The DCVC-HR is a self-contained, battery operated data logger for 8 channels of DC voltage and current. It can store up to 4MB of data in flash memory, equivalent to 2 million measurements. It accepts input signals from various sources like transmitters, sensors, and transducers.
With a 16-bit ADC, it provides precise readings for critical measurements. This data recorder is a built-in rugged aluminium enclosure with PCB coating, ensuring top-notch performance in challenging industrial environments.
Features
4 input channels for DC voltage
3 input channels for current
1 internal temperature thermistor
Sampling interval ranging from 20 milliseconds to 12 hours
Features fast sampling mode, alarm, and excitation output
Applications
Industrial process monitoring
Energy management
Quality control
Renewable energy
HVAC systems
Specifications
Channels CH1 to CH4 (voltage) programmable range for each 0~20 V
0 to 2V, CH5 to CH7 (current) programmable range for each 0 to 20 mA
Accuracy thermistor channel reference temperature 0.36 °F
Voltage channels +/- 0.05% FSR @25 °C for 20V channels, +/- 0.1% FSR @25 °C for 2V channels
Current channels +/- 0.15% FSR @25 °C
Load resistor for current channel 12 Ohms
Protection voltage channel +/- 40 VDC
Current channel +/- 100 mA
