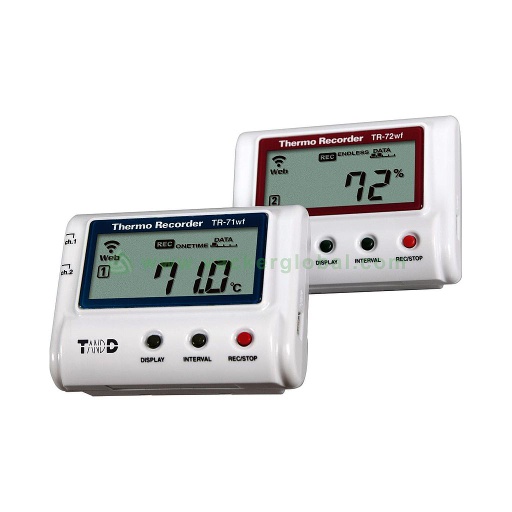

Wireless LAN Temperature & Humidity Logger TR72wf

800.44 USD 800.44 USD 800.44 USD

2,800.00 AED

Wireless LAN Temperature & Humidity Logger TR72wf

Wireless LAN Temperature & Humidity Logger TR72wf
Measurement Channels Temperature 1ch, Humidity 1ch (External)

Measurement Range:
Temperature: 0 to 55°C
Humidity: 10 to 95%RH
Accuracy: ±0.5°C, ±5%RH
LCD Display: Measurements, Battery Life Warning, etc.
Logging Capacity: 8,000 data sets
Recording Intervals: 15 choices from 1 sec. to 60 min.

Days
Hours
Mins
Secs
1

VSKU: 1005000009

800.44 USD 800.44 USD 800.44 USD

2,800.00 AED

    This combination does not exist.


    Add to Cart

    Share :

    Real Time, WiFi temperature & humidity monitoring system with alert

    This real time monitoring system can record temperature and humidity. Customer can connect many of such devices to a single WiFi router. It can generate alerts for both temperature and humidity separately. The device has a memory of 8000 readings. User can configure data recording frequency and daa transmission frequency separately.

    Real time temperature & humidity monitoring system with free email alert. It has one external sensor combined for temperature and humidity. It can generate SMS and phone call alerts through a third party software. This model works on WiFi transmission. The recorded data is transmitted through WiFi to a free cloud based server. It operates on battery as well as on a power source.


    This internet cloud based WiFi humidity monitoring system has one external sensor extended upto 1 meter. The temperature and humidity sensors is combined into one sensor. The current temperature and humidity is displayed on the screen alternately. High and low alarms can be programmed separately for temperature and humidity. If any of the values go beyond the programmed limits, it will generate an email alert.

    Advantages

    1. This system has free software and there are no recurring charges.

    2. If you opt for phone call & SMS alerts, the charge is only for the number of calls or messages generated.

    Specifications

    1. Product Code: VD-CM-TNH-TD-00450

    2. Model:     TR-72WF

    3. Measurement Parameters: Temperature, Humidity

    4. Unit Of Measurement: °C Or °F, %RH

    5. Memory Capacity: 8000 Readings In The Device. Unlimited Over The Internet

    6. Duration Of Recording: Unlimited

    7. Memory Type: Electronic

    8. Program Interval: 1 Second To 90 Minutes

    9. Sensors: 1 External Sensor

    10. Measuring Range (Parameter 1): 0 To 55°

    11. Measuring Range (Parameter 2): 10 To 95%Rh

    12. Measuring Range (Parameter 3): NA

    13. Measuring Range (Parameter 4): NA

    14. Measuring Range (Parameter 5): NA

    15. Accuracy (Parameter 1): Temperature: ±0.5°C

    16. Accuracy (Parameter 2): Humidity: ±5%RH

    17. Accuracy (Parameter 3): NA

    18. Accuracy (Parameter 4): NA

    19. Accuracy (Parameter 5): NA

    20. Resolution: 0.1°C

    21. Sensor Response Time: Thermal Time Constant: Approx. 75 Sec. Response Time (90%): Approx. 190 Sec.

    22. Display: Yes

    23. Special Software Required For Data Download?:  Yes

    24. Remote Monitoring: Yes

    25. Lcd Operating Range: -10 To 60°C

    26. Alarm Thresholds: 2 Upper And 2 Lower Alert

    27. Alarm Configuration: High And Low For Each Sensor Separately

    28. Alarm Type: Email Alert & On Screen. Sms & Phone Call Alerts Can Be Configured Through 3rd Party Applictions

    29. Bookmark: Na

    30. Preprogram Option: User Programmable

    31. Start Option: Start Upon Switching On

    32. Auto Start: NA

    33. Start Delay: No

    34. Stop Option: Yes

    35. Dimension: H 58mm × W 78mm × D 26mm

    36. Weight (Kg): 0.0550

    37. Case Material: Polycarbonate/ABS

    38. Power Battery: Battery: AA Alkaline × 2 (AA Ni-MH batteries may also be used) External: USB Bus (5V 200mA), AC Adaptor (AD-05A2 or AD-05C2), PoE IEEE 802.3af (TR-7nw only)

    39. Ip Rating: IP4X

    40. Warranty: 1 Year, Excluding Battery

    41. Calibration: Upon Request At Extra Charge

    42. Test Certificate:     Yes

    43. Other Certification: CE

    44. Battery Life: If working only on Battery power: With LAN communication: Approx. 10 days to 1.5 years *6 Without LAN communication: Approx. 1.5 years

    45. Communication Wifi Standard:  WiFi Standard: IEEE 802.11b Security *2: WEP (64bit/128bit), WPA-PSK(TKIP), WPA2-PSK(AES) WPS 2.0: Push Button Configuration Protocol: HTTP *3, DHCP, DNS

    46. Software:  Pc Software: PC Software: TR-7wf/nw for Windows, T&D Graph, T&D Data Server Mobile App: T&D Thermo

    47. Default File Format Excel

    48. Data Export Excel, Image,Pdf

    49. Security Password Protected, Programmable Using Software

    50. Plug & Play Download Of Data No. Software Required

    51. Package Includes Data Logger, Dc Adaptor

    52. Detailed Manual Read Manual / Download Manual

    53. Video Link Watch Product Video

    54. Manufacturer Tandd, Japan

    55. Price AED1,800.00
