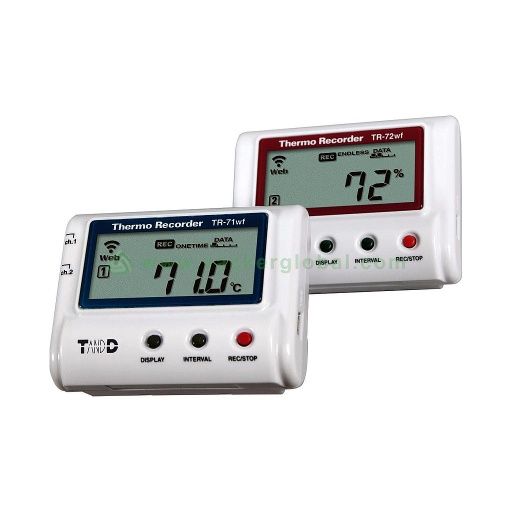

Real Time Temperature Data Loggers – Wired LAN with E-mail alert TR72-WB

886.20 USD 886.20 USD 886.2 USD

3,100.00 AED

Real Time Temperature Data Loggers – Wired LAN with E-mail alert TR72-WB

Real Time Temperature Data Loggers – Wireless LAN with E-mail alert TR72-WB-S
T+H, Wide Range, Wireless LAN with Data Logging and Email alerts to the authorized email address.
Measurement Channels: Temperature 1ch, Humidity 1ch (High-Precision Type)
Sensor: Thermistor
Measurement Units: °C, °F
External Sensor: -25 to 70 °C
Accuracy: ±0.3°C at 10 to 40 °C
±0.5°C all other temperatures
Measurement Resolution: 0.1 °C
Responsiveness: Response Time (90%):
Approx. 7 min.

Days
Hours
Mins
Secs
1

VSKU: 1005000068

886.20 USD 886.20 USD 886.2 USD

3,100.00 AED

    This combination does not exist.


    Add to Cart

    Share :

    Real Time, Wired LAN temperature & humidity monitoring system with alert

    Real time temperature & humidity monitoring system with free email alert. It has one external sensor combined for temperature and humidity. It can generate SMS and phone call alerts through a third party software. This model works on wired LAN transmission. The recorded data is transmitted through LAN to a free cloud based server. It operates on battery as well as on a power source.

    This real time monitoring system can record temperature and humidity. It can generate alerts for both temperature and humidity separately. The device has a memory of 8000 readings. User can configure data recording frequency and data transmission frequency separately.

    This internet cloud based wired LAN Temperature & humidity monitoring system has one external sensor extended upto 1 meter. The temperature and humidity sensors is combined into one sensor. The current temperature and humidity is displayed on the screen alternately. High and low alarms can be programmed separately for temperature and humidity. If any of the values go beyond the programmed limits, it will generate an email alert.

    Advantages

    1. This system has free software and there are no recurring charges.

    2. If you opt for phone call & SMS alerts, the charge is only for the number of calls or messages generated.

    Specifications

    1. Product Code VD-CM-TNH-TD-00451

    2. Model   TR-72NW

    3. Measurement Parameters Temperature, Humidity

    4. Unit Of Measurement °C Or °F, %RH

    5. Memory Capacity 8000 Readings In The Device. Unlimited Over The Internet

    6. Duration Of Recording Unlimited

    7. Memory Type Electronic

    8. Program Interval 1 Second To 90 Minutes

    9. Sensors 1 External Sensor

    10. Measuring Range (Parameter 1) 0 To 55°

    11. Measuring Range (Parameter 2) 10 To 95%RH

    12. Measuring Range (Parameter 3) NA

    13. Measuring Range (Parameter 4) NA

    14. Measuring Range (Parameter 5) NA

    15. Accuracy (Parameter 1) Temperature: ±0.5°C

    16. Accuracy (Parameter 2) Humidity: ±5%RH

    17. Accuracy (Parameter 3) NA

    18. Accuracy (Parameter 4) NA

    19. Accuracy (Parameter 5) NA

    20. Resolution 0.1°C

    21. Sensor Response Time   Thermal Time Constant: Approx. 75 Sec. Response Time (90%): Approx. 190 Sec.

    22. Display Yes

    23. Special Software Required For Data Download? Yes

    24. Remote Monitoring Yes

    25. Lcd Operating Range -10 To 60°C

    26. Alarm Thresholds 2 Upper And 2 Lower Alert

    27. Alarm Configuration High And Low For Each Sensor Separately

    28. Alarm Type Email Alert & On Screen. Sms & Phone Call Alerts Can Be Configured Through 3rd Party Applictions

    29. Bookmark NA

    30. Preprogram Option User Programmable

    31. Start Option Start Upon Switching On

    32. Auto Start NA

    33. Start Delay No

    34. Stop Option Yes

    35. Dimension H 58mm × W 78mm × D 26mm

    36. Weight (Kg) 0.0550

    37. Case Material Polycarbonate/Abs

    38. Power Battery: AA Alkaline × 2 (AA Ni-MH batteries may also be used) External: USB Bus (5V 200mA), AC Adaptor (AD-05A2 or AD-05C2), PoE IEEE 802.3af (TR-7nw only)

    39. Ip Rating Ip4x

    40. Warranty 1 Year, Excluding Battery

    41. Calibration Upon Request At Extra Charge

    42. Test Certificate Yes

    43. Other Certification Ce

    44. Battery Life If working only on Battery power: With LAN communication: Approx. 10 days to 1.5 years *6 Without LAN communication: Approx. 1.5 years

    45. Communication   DNS Wired LAN Communication for TR-7nw 100BASE-TX/10BASE-T ( RJ45 Connector ) Protocol: HTTP (*4) , DHCP, DNS USB Communication USB 2.0 ( Mini-B connector )

    46. Software PC Software: TR-7wf/nw for Windows, T&D Graph, T&D Data Server Mobile App: T&D Thermo

    47. Default File Format Excel

    48. Data Export Excel, Image,Pdf

    49. Security Password Protected, Programmable Using Software

    50. Plug & Play Download Of Data No. Software Required

    51. Package Includes Data Logger, Dc Adaptor

    52. Detailed Manual Read Manual / Download Manual

    53. Video Link Watch Product Video

    54. Manufacturer Tandd, Japan

    55. Price AED1,800.00
