Differential, Positive & Negative Room Pressure Sensor Monitoring System with a sound alert for upto 4 isolation rooms (a combination of 1 Display & 4 sensors)

2,286.95 USD 2,286.95 USD 2286.9500000000003 USD

8,000.00 AED

Differential, Positive & Negative Room Pressure Sensor Monitoring System with a sound alert for upto 4 isolation rooms (a combination of 1 Display & 4 sensors)

Differential, Positive & Negative Room Pressure Sensor Monitoring System with a sound alert for up to 4 nearby isolation rooms (a combination of 1 Display + 4 transmitters).
The combination consists of one common display and 4 transmitters for 4 rooms.
You can easily install this system. The sensor has to be placed near the room and a pipe to be inserted into the desired room. Thereafter connect the signal from the sensor to the display unit.

Days
Hours
Mins
Secs
1

VSKU: 1008000050

2,286.95 USD 2,286.95 USD 2286.9500000000003 USD

8,000.00 AED

    This combination does not exist.


    Add to Cart Buy Now

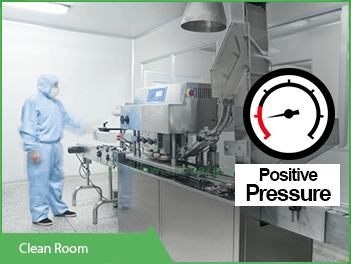

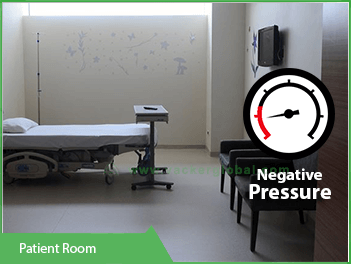

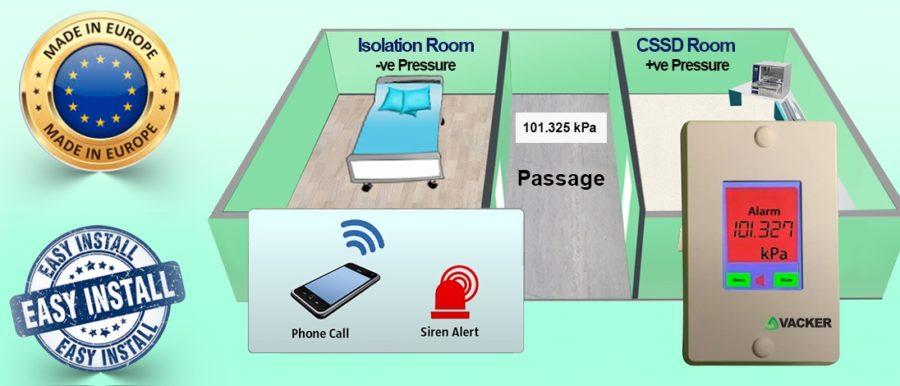

    These room pressure sensors are for differential pressure monitoring, positive pressure monitoring, and negative pressure monitoring. The typical applications of negative pressure monitoring are for Airborne infection isolation rooms. Examples of positive pressure rooms include operations theatres, clean rooms, CSSD rooms, etc.

    The system consists of one display unit and four sensors. One display can take up to 4 sensors.

    If you are looking for a monitoring system for a maximum of 2 nearby rooms, please check our Room pressure monitoring system for 2 rooms.

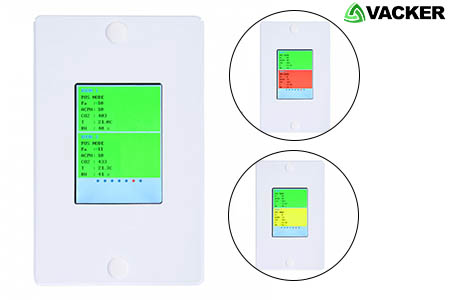

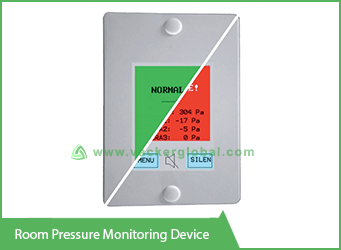

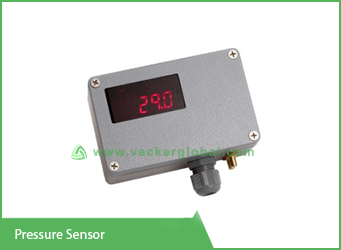

    Each room sensor has two small pressure vent connections. You have to connect a connector to the room and the other vent is open to the atmosphere. Thus the sensor is continuously monitoring the pressure inside the room and that of the atmosphere. You can program the desired pressure of the room. If the pressure difference is as per the programming, the screen will show green. If the pressure difference is not adequate, it will show a red indication. Upon reaching the trigger value, it will start generating a sound alert.

    Differential Room Pressure Sensor Monitoring System with a sound alert for up to 2 nearby isolation rooms (a combination of Display + transmitter)

    Technical Specification of Room pressure monitoring system with an alert for a maximum of 4 rooms (Suitable for AIIR, Isolation rooms, operation theatres, CSSD, Cleanrooms, negative pressure rooms & positive pressure rooms)

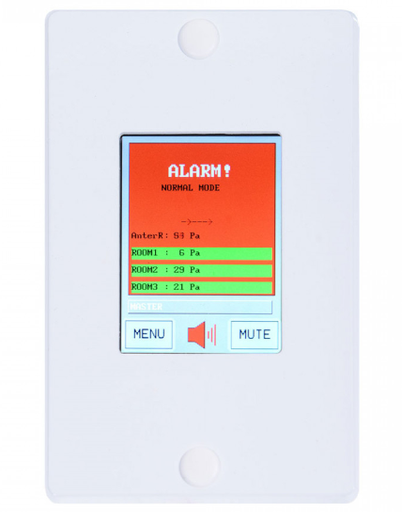

    1. One unit of Pressure Monitoring Display.

    2. The display is suitable for Flush in-wall mounting as well as mounting in a bracket or box.

    3. Dimension of the display is150x100x5 (45 Mounting box) mm.

    4. The display is LCD type Color Touchscreen having a dimension of 65x49 mm.

    5. The standard panel color is white. We can provide custom colors at an additional price.

    6. Internal communication is through RS485 Modbus.

    7. External communication is through RS485 Modbus RTU.

    8. Power supply is 24 V DC @ 54 mA/ CPS 6020/40.

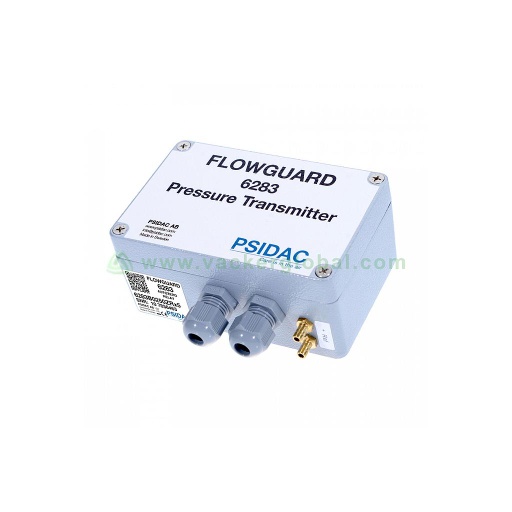

    9. This set suitable for a maximum of 4 rooms come with 4 nos. of pressure Transmitter.

    10. Non linearity is ± 0,3 pascal +0,1% of reading, typical.

    11. Stability is ± 0,2 % typ.(1 year) Typical.

    12. The time constant is 0.1 - 20 seconds.

    13. Output is 0-5, 1-5, 0-10, 1-10, 2-10 V or 4-20mA, 0-20 mA.

    14. Resolution is a 10-bit digital output.

    15. The power supply of the transmitter is 18-24 V AC/DC, 50 mA.

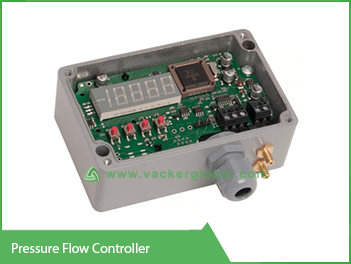

    16. The dimension of the transmitter unit with the sensor is 125x90x60 mm.
