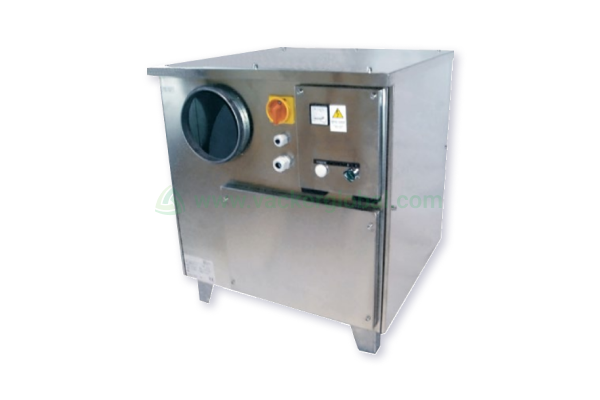

DFRB-090-E Desiccant Dehumidifier
DFRB-090-E Desiccant Dehumidifier
Process/Dry Air Flow: 950/700 Nm3/h
Available Pressure for Ducting: 200 Pa
Reactivation Air Flow: 250 Nm3/h
Available Pressure for Ducting: 50 Pa
Nominal Drying Capacity (*): 4.2 kg/h
Total Power Supply: 4.8 Kw
Electrical Supply: 400V/III+N/50Hz
VSKU: 1001000367
DRFB-090-E Desiccant Dehumidifier
The DRFB-090-E Desiccant Dehumidifier meets the current technical demands by providing operational safety, user comfort, and cost effectiveness as its key attributes. Equipped with a high-performance desiccant rotor, it ensures rapid and effective dehumidification even in a challenging environment.
The unit boasts user-friendly controls, enabling precise humidity level adjustments and offers low maintenance operation. Its energy-efficient design not only provides cost savings but also reduces environmental impact.
Features
Self-supporting stainless steel sheet housing that is easily serviceable
Air intake equipped with a G4 filter mat and a centrifugal air fan with a direct motor drive
Rotary desiccant element driven by a gear motor, teeth pulley, and transmission belt, divided into three sections for handling dry, heat recovery, and wet water streams
Incorporates partition and peripheral contact-type air seals
Utilizes a PTC-type desiccant reactivation air heater with self-limited operation temperature
Applications
Food industry
Pharmaceutical industry
Data centres
Automotive industry
Fertilizer and chemical industry
Specifications
Process/dry air flow 950/700 Nm³/h
Available pressure for ducting 200 Pa
Reactivation air flow 250 Nm³/h
Available pressure for ducting 50 Pa
Nominal drying capacity(*) 4,2 kg/h
Total power supply 4,8 Kw
Motors power 0,29 Kw
Reactivation heater power 4,5(Nominal) Kw, 7,2(Maxim)Kw
Electrical supply 400V/|||+N/50Hz
