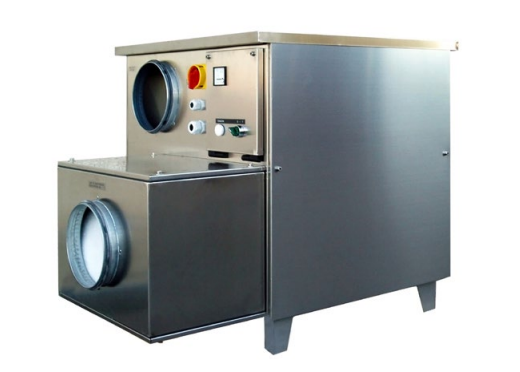

DFRD-090-E Desiccant Dehumidifier (50Hz)

8,673.28 USD 8,673.28 USD 8673.28 USD

30,340.00 AED

DFRD-090-E Desiccant Dehumidifier (50Hz)

DFRD-090-E Desiccant Dehumidifier

Process/Dry Air Flow 700 Nm3/h
Available Pressure For Ducting 470 Pa
Reactivation Air Flow 210 Nm3/h
Available Pressure For Ducting 320 Pa
Nominal Drying Capacity (*) 4.2 kg/h
Total Power Supply 7 Kw
Motors Power 0,5 Kw
Reactivation Heater Power 6.5 (nominal)
9.3 (maxim) Kw
Electrical Supply 400V/III+N/50Hz

VSKU: 1001000371

8,673.28 USD 8,673.28 USD 8673.28 USD

30,340.00 AED

This combination does not exist.

Add to Cart Buy Now

Categories:

Dehumidifier ,

Desiccant dehumidifiers

Description
Ratings and Reviews

DFRD-090-E Desiccant Dehumidifier

The DFRD-090-E desiccant air dehumidifiers are the perfect choice when dealing with challenging air-drying conditions. Equipped with dual fans, these dehumidifiers avoid mixing the process air with the surrounding high-humidity or damp air, a necessary under such conditions. Consequently, these two separate fans effectively keep the process and reactivation airflows separate.

These compact DFRD-090-E desiccant air dehumidifiers feature a stainless-steel design and come ready for immediate use. Additionally, they are engineered to achieve remarkably low dew points, making them particularly suitable for deployment and application in specific industries.

Features

Closure joints for both the sector and perimeter featuring friction mechanisms
Utilization of a self-limiting PTC type heater for material reactivation, ensuring it does not exceed maximum temperature
Circular connectors equipped with sealing gaskets for air intake (during the process and reactivation) and air discharge (both dry and wet)
An on-off switch with an accompanying pilot light
An operating ammeter to monitor performance

Applications

Plastic forming industry
Seed conservation
Libraries
Museums
Archives

Specifications

Process/Dry air flow 700 Nm3/h
Available pressure for ducting 470 Pa
Reactivation air flow 210 Nm3/h
Available pressure for ducting 320 Pa
Nominal drying capacity (*) 4.2 Kg/h
Total power supply 7 Kw
Motors power 0,5 kw
Reactivation heater power 6.5(nominal), 9.3 (maxim) Kw
Electrical supply 400V/III+N/50Hz
