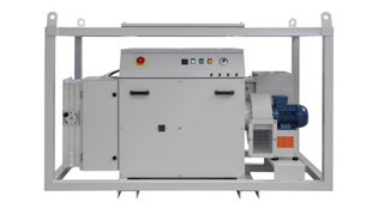

DFRC-0300 Desiccant Dehumidifier

The DFRC-0300 desiccant dehumidifiers are the perfect solution for demanding air-drying situations. They feature two fans since it''s impractical to mix the process air with the nearby high-humidity or moist air in such circumstances. As a result, these distinct fans efficiently separate the process and reactivation airflows.

These compact DFRC-0300 desiccant air dehumidifiers are designed with stainless steel and are ready for immediate operation. Additionally, they are designed to achieve exceptionally low dew points, making them particularly suitable for use in specific industries and applications.

Features

1. Drying capacities range from 9 to 106 kg/h

2. Dry air flow rates range from 1200 to 15000 m3/h

3. Designed for durability in harsh environments

4. Weather resistant construction

5. Reliable and easy-to-use operation

Applications

1. Plastic forming industry

2. Seed conservation

3. Libraries

4. Museums

5. Archives

Specifications

1. Process/Dry air flow  2100m3/h

2. Available pressure for ducting   700 Pa

3. Reactivation air flow   630 m3/h

4. Available pressure for ducting   400 Pa

5. Nominal drying capacity (*)   14,3 kg/h

6. Total power supply   25,8 Kw

7. Motors power   3,3 Kw

8. Reactivation heater power 22,5 Kw

9. Nominal current  40,0 A

10. Electrical supply   400V ± 5% /|||/50Hz
