Testo 770-1

142.94 USD 142.94 USD 142.94 USD

500.00 AED

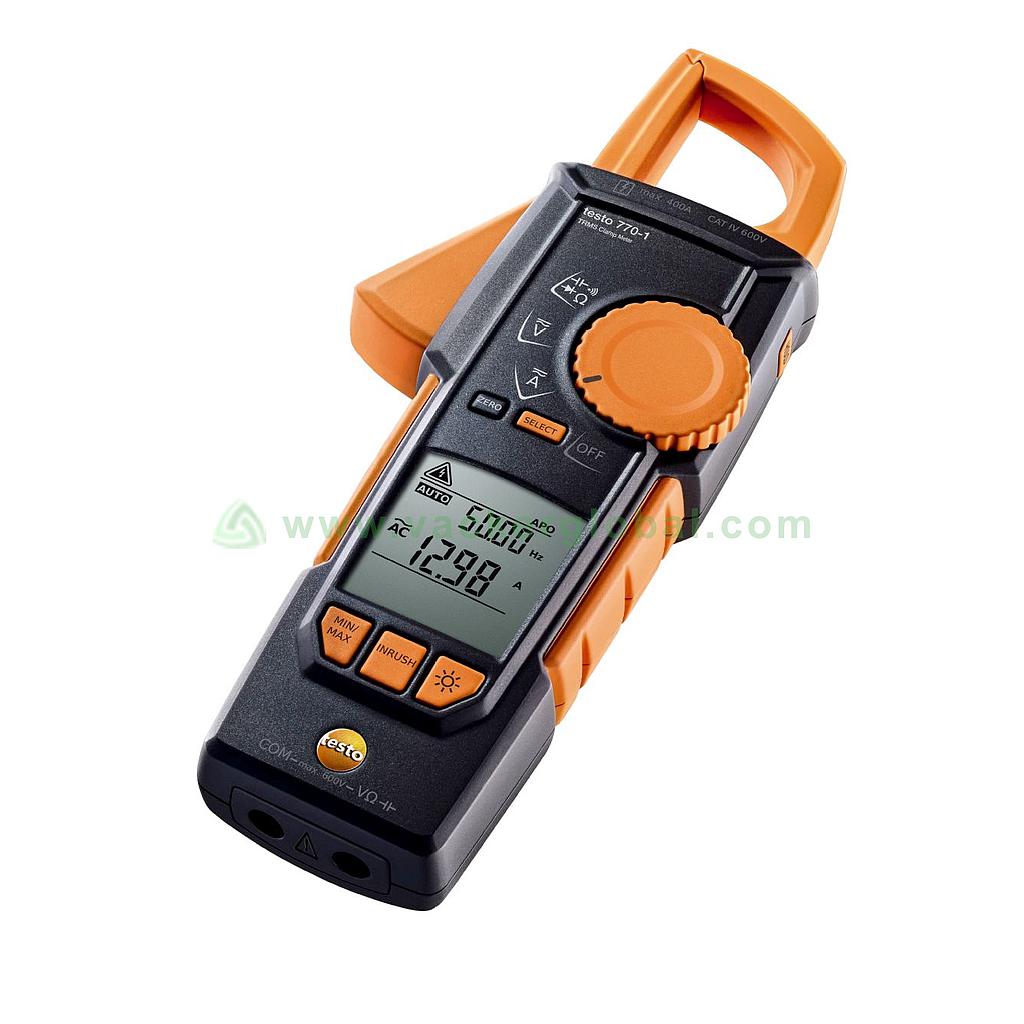

Testo 770-1

Clamp meter for the measurement of electrical parameters, model
no [VAC- 770-1]
Operating humidity: 0 to 80%RH.
Operating temperature: -10 to +50 0 C.
Storage temperature: -15 to +60 0 C.

Days
Hours
Mins
Secs
1

VSKU: 1010000136

142.94 USD 142.94 USD 142.94 USD

500.00 AED

    This combination does not exist.


    Add to Cart Buy Now

    Category:

  • Meter

  • Clamp meter for the measurement of electrical parameters

    The Clamp meter for the measurement of electrical parameters is used for the non-contact current measurement on tightly packed power cables or conductors with small diameters. It has a unique grab mechanism which helps us in grabbing each individual cable easily and safely. The operation of the clamp meter is very easy. It automatically detects and selects AC/DC and other electrical parameters such as resistance, continuity, diode and capacitance. It can be also used for the measurement of starting current. It has 2 line-display which presents the readings clearly and distinctly.

    Applications

    1. It is used for the measurement of the electrical parameter.

    2. It is used for the non-contact current measurement.

    3. It is used for the current consumption measurement.

    4. It is used for the testing of voltage in the live wire.

    5. It is used for the measurement of ionization flow of heating systems.

    6. It is used for the continuity tests on switching components.

    7. It is used for the resistance measurement of sensors or motor windings.

    8. It helps in maintaining electric circuits.

    9. It helps in servicing electric systems.

    10. It is used to measurement of capacitance.

    11. It is used to measure continuity of a circuit.

    12. It is used to measure starting current.

    Features

    1. It is very easy to operate.

    2. It is a very safe equipment.

    3. It has a high resolution.

    4. It has a very wide measuring range.

    5. It gives precise readings.

    6. It has a good display.

    7. It has good battery life.

    8. It allows us to grab each individual cable easily and safely as it has a unique grab

    mechanism.

    9. It has a large 2-line display.

    10. It has a fully retractable pincer arm which gives maximum flexibility.

    11. It automatically identifies if a system is AC/DC.

    12. It has a retractable pincer arm which gives maximum flexibility.

    Specifications

    1. It has a measuring range of 1.0 to 600.o V for DC voltage and 1.0mV to 600.0 V

    for AC voltage.

    2. It has a resolution of maximum 1mV for DC and AC voltage.

    3. It has an accuracy of +/-(0.8% of mv + 3digits) for DC voltage and +/_(1.0% of mv

    + 3digits) for AC voltage.

    4. It has a measuring range of 0.1 to 400 A for AC and DC current with a resolution

    of maximum 0.1.

    5. It has an accuracy of +/- (2% of mv +5digits) for AC and DC current.

    6. It has a measuring range of 0.1 to 40.00MOhm for the measurement of

    resistance with an accuracy and resolution of +/- (1.5 % of mv +3digit) and max.

    0.1 ohm respectively.

    7. It has a measuring range of 10nF to 100microF for the measurement of

    capacitance with an accuracy and resolution of +/- (1.5 % of mv +5digit) and max.

    0.01nF respectively.

    8. It has a measuring range of 10nF to 100microF for the measurement of

    frequency with an accuracy of +/- (0.1 % of +1digit).

    9. It requires an operating humidity form 0 to 80%RH.

    10. It weighs 378g.

    11. Its dimensions are 249 x 96 x 43 mm.

    12. It requires an operating temperature from -10 to +50 0 C.

    13. It requires 3 AAA micro batteries.

    14. It has an LCD display.

    15. It has a 2-line display.

    16. It has 2 measuring jacks as an interface.

    17. It requires a storage temperature form -15 to +60 0 C.

    18. It has a diode test, continuity tests, display lighting, automatic parameter

    measurement.

    19. It has 4,000 display counts.

    We supply Clamp meter for the measurement of electrical parameters, model no. VAC 770-1 for the non-contact current measurement on tightly packed power cables or conductors with small diameters in the USA, UK, Germany, France, Netherlands, Spain, Switzerland, Sweden and other European countries. Also, we supply these Clamp meter for the measurement of electrical parameters, model no. VAC 770-1 for the non-contact current measurement on tightly packed power cables or conductors with small diameters in the Middle East and other Asian countries including India, Pakistan, Afghanistan, Bangladesh, Singapore etc.

    Our African offices supply these Clamp meter for the measurement of electrical parameters, modelno. VAC 770-1 for the non-contact current measurement on tightly packed power cables or conductors with small diameters across all African countries covering South Africa, Kenya, Nigeria, Tanzania, Rwanda, Djibouti, Morocco, Ghana, Ethiopia, Uganda, Morocco, Tunisia, Cameroon, Mauritius, Gabon, Seychelles etc.

    Our Middle East offices supply these Clamp meter for the measurement of electrical parameters,model no. VAC 770-1 for the non-contact measurement on tightly packed power cables or conductors with small diameters in the United Arab Emirates, Kingdom of Saudi Arabia, Qatar, Oman, Kuwait, Egypt, Lebanon, Bahrain, Libya, Iraq, Erbil, Jordan etc.
