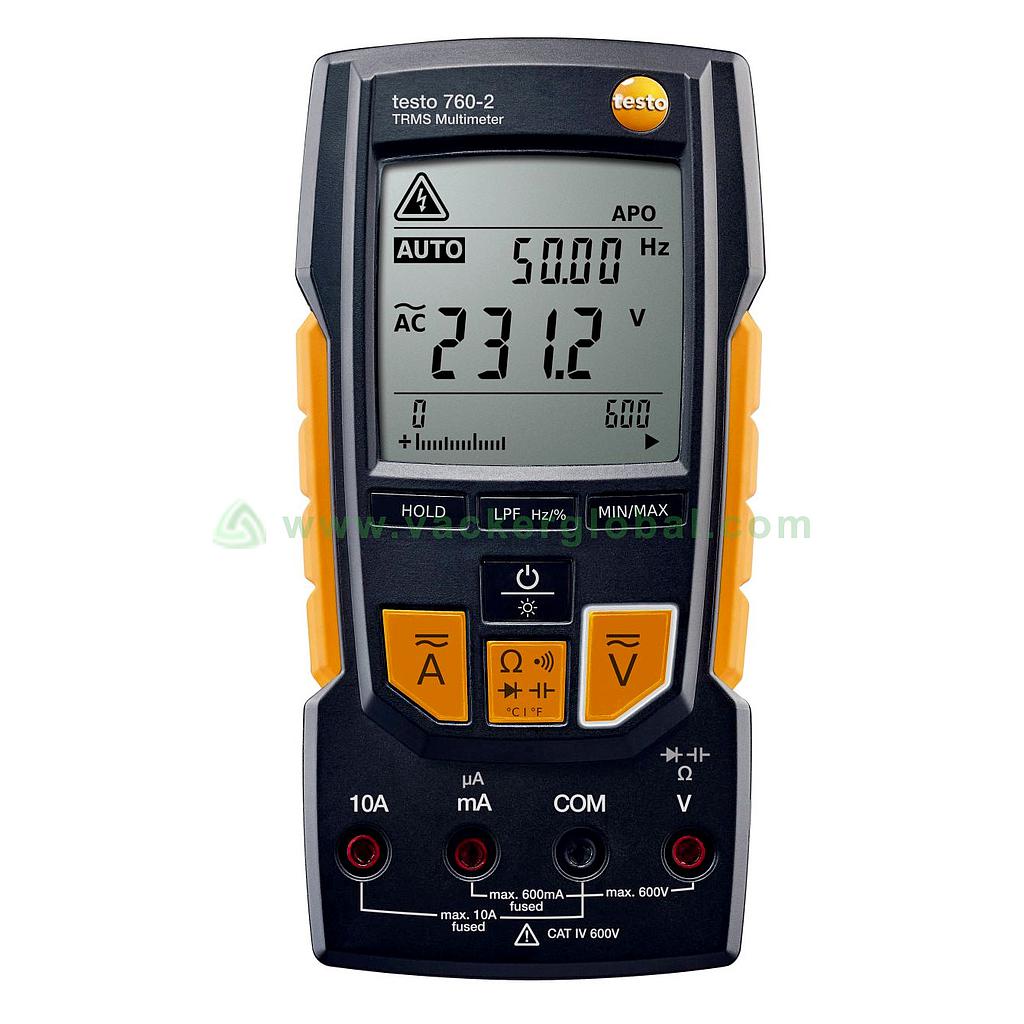

Testo 760-2 Digital multimeter
Digital multimeter, model no. VAC 760-2
Operating temperature: -10 to +50 °C
Storage temperature: -15 to +60 °C
Internal resistance: 11 Mohm
Digital multimeter for measuring electrical parameters
The multimeter is one of the most essential tools for any engineer. Digital multimeter comes with a most advanced technology to read AC and DC currents in its more minute μA range. Apart from these, it comes with a 2-line digital LCD display and function keys for easy access to users. It uses a low pass filter for more accurate measurements. It also offers an option to measure the root mean squared value of the parameters. Unlike conventional rotary selector multimeters, it comes with an automatic parameter selector which detects the parameter to be measured automatically when the probes are connected.
1. It is used to measure AC voltage.
2. It is used to measure DC voltage.
3. It is used to measure AC current in μA range.
4. It is used to measure DC current in μA range.
5. It is used to measure the resistance of a component.
6. It is used to measure the capacitance of a component.
7. It is used to measure the temperature of a component.
8. It is used for diode testing.
9. It is used for continuity testing.
10. It is used for duty-cycle measurement.
11. It is used for frequency measurements.
12. It is used to obtain true root mean square measurements.
1. It has a 2-line user-friendly LCD display.
2. It is approved by EN 61326-1; EN 61010-2-033; EN 61140 standards.
3. It is powered by 3 AAA micro batteries.
4. It has a 2-line LCD display.
5. It belongs to the overvoltage category of CAT III 1000V; CAT IV 600V.
6. It has CSA;CSA; CE authorizations.
7. It allows diode testing.
8. It supports continuity testing.
9. It has display lighting which makes it easily visible in poor lighting conditions.
10. It has the feature of hold and min/max functions.
11. It shows the true RMS value of parameters.
12. It has a low pass filter for accurate measurements.
13. It possesses 6000 display counts.
14. It has current measuring capacity in μA range.
15. It has an automatic parameter detection system.
16. It has a low pass filter for accurate measurements.
17. It has operable illuminated function keys.
18. It has a temperature measuring range of -20 to +500 °C.
19. It provides a temperature resolution of 0.2 °C.
20. It provides a DC voltage resolution of 0.1mV.
21. It provides an AC voltage resolution of 0.1mV.
22. It provides a DC current resolution of 0.1.
23. It provides an AC current resolution of 0.1 μA.
24. It provides a resistance resolution of 0.01 ohm.
25. It provides a capacitance resolution of 0.01nF.
26. It provides a frequency resolution of 0.1 Hz.
1. It has an operating humidity of 0 to 80 %RH.
2. It has a product weight of 340 grams.
3. It has a product dimension of 167 x 85 x 45 mm.
4. It has an operating temperature ranging from -10 °C to +50 °C.
5. It comes with IP64 waterproofing.
6. It is powered by 3 AAA batteries.
7. It has a 2-line LCD display.
8. It is interfaced with 4 measuring jacks.
9. It has an internal resistance of 11Mohm.
10. It has a storage temperature ranging from -15 °C to +60 °C.
11. Its temperature measuring ranges from -20 to +500 °C.
12. Its DC voltage measuring ranges from 0.1 to 600 V.
13. Its AC voltage measuring ranges from 0.1 mV to 600 V.
14. Its DC current measuring ranges from 0.1 μA to 10 A.
15. Its AC current measuring ranges from 0.1 μA to 10 A.
16. Its resistance measuring ranges from 0.01 to 60.00 MOhm.
17. Its capacitance measuring ranges from 2 nF to 30.00 mF.
18. Its frequency measuring ranges from 2 Hz to 60.00 MHz.
19. Its temperature accuracy is ±1 °C for 0 to 100 °C.
20. Its DC voltage accuracy is ± (0.8 % of mv + 3 Digit).
21. Its AC voltage accuracy is ± (1.0 % of mv + 3 Digit).
22. Its DC current accuracy is ± (1.5 % of mv + 5 Digit).
23. Its AC current accuracy is ± (1.5 % of mv + 5 Digit).
24. Its resistance accuracy is ± (1.5 % of mv + 3 Digit).
25. Its capacitance accuracy is ± (1.5 % of mv + 5 Digit).
26. It has a temperature resolution of 0.2 °C.
27. It has a DC voltage resolution of 0.1mV.
28. It has an AC voltage resolution of 0.1mV.
29. It has a DC current resolution of 0.1.
30. It has an AC current resolution of 0.1 μA.
31. It has a resistance resolution of 0.01 ohm.
32. It has a capacitance resolution of 0.01nF.
33. It has a frequency resolution of 0.1 Hz.
34. It is approved by EN 61326-1; EN 61010-2-033; EN 61140 standards.
35. It belongs to the overvoltage category of CAT III 1000V; CAT IV 600V.
36. It has CSA;CSA; CE authorizations.
37. It allows diode testing.
We supply these Digital multimeters for measuring electrical parameters in the USA, UK, Germany, France, Netherlands, Spain, Switzerland, Sweden, and other European countries. Also, we supply these for diode testing in the Middle East and other Asian countries including India, Pakistan, Afghanistan, Bangladesh, Singapore, etc.
Our African offices supply these Digital multimeters for testing electrical components across all African countries covering South Africa, Kenya, Nigeria, Tanzania, Rwanda, Djibouti, Morocco, Ghana, Ethiopia, Uganda, Morocco, Tunisia,Cameroon, Mauritius, Gabon, Seychelles, etc.
Our Middle East offices supply these Digital multimeters for duty cycle measurement in the United Arab Emirates,Kingdom of Saudi Arabia, Qatar, Oman, Kuwait, Egypt, Lebanon, Bahrain, Libya, Iraq, Erbil, Jordan, etc.
