324 Pressure/Gas Leak Detector
Pressure/gas leak detector, Model no. [VAC-324]
Measurement range: 300 to 1200 hPa
Accuracy: ± 3 hPa ± 1 Digit
Resolution: 0.1 hPa
Measurement rate: 2 measurements per sec
Pressure/gas leak detector for detecting gas leaks
Pressure/gas leak detector [VAC-324] is a versatile instrument capable of measuring a multitude of different quantities. It is primarily used for leakage detection gas pipes and pressure measurement in water pipes but can also measure temperature and pipe volume. It has a high-resolution colour display that can plot the measurement curves. It has USB, IRDA and Bluetooth(optional) interfaces for data transfer and measurement results can be stored and analysed on a PC with the Easy Heat software. It is IP40 certified.
It is used to perform leakage tests on gas pipes.
It can be used to test the material of gas pipes for stability and estimate the service life of the connections.
It is used to test the leakage of gas pipes in the boiler room.
It is used to measure the pressure on burners like nozzle pressure, gas flow pressure, etc.
It used to measure the temperature of radiators.
It is used to do pressure tests on drinking and wastewater pipes.
It can do a variety of measurements using appropriate probes.
It is easy to set up.
It has inbuilt measurement menus setup according to legal measuring standards.
It is highly accurate.
It can carry out measurements without the formation of harmful air-gas mixture.
It is suitable for data storage and analysis with the help of USB and IRDA interfaces and Easy Heat PC software.
It has an IP40 protection class certificate according to EN 60529.
It has a high-resolution graphical display to show colourful graphic curves.
It can do leak-tight checks of gas pipes according to TRGI 2008 and liquid gas pipes according to TRF 2012.
It is IP40 certified according to EN 60526.
It is ideal to store the instrument between -20 °C and +50 °C.
It can be powered by battery as well as from the mains.
It provides approximately 5 hours of measurement time.
It can measure temperature in the range of -20 °C to +100 °C with the NTC probe.
The DVGW permit according to G 5952 is instrument class L up to a volume of 200 litres.
It supports IRDA, USB and Bluetooth (optional) for data transfer.
It can do measurements with an accuracy of ± 3 hPa ± 1 digit and a resolution of 0.1 hPa.
It can do absolute pressure measurement in the range of 600 to 1150 hPa with an accuracy of ± 3 hPa and overload value of 1200 hPa.
It can measure temperature in the -40 °C to +600 °C using the TC type K (NiCr-Ni) probe with an accuracy of ± 0.5 °C or ± 0.5 %.
It is operated between 0 °C and +50 °C.
Pressure measurement range using an external probe is from 0 to 25 bar with accuracy of ±0.6 % fsv.
It has a leakage measurement range of 0 to 10 l/h with an accuracy of ± 0.2 l/h or ± 5 % of mv and a resolution of 0.1 l/h.
It does pressure measurements of 0 to 1000 hPa with an accuracy of ±0.5 hPa or ±3 % of mv using the internal sensor.
It has a high-resolution graphic display for presentation of various graphic curves.
It weighs about 1070 g.
It can do pipe volume calculations up to 1200 l with an accuracy of ± 0.2 l or 5 % of mv (1 to 200 l).
It has two additional Hirschmann sockets for connecting pressure and temperature probes.
It has 2 DN 5 pressure connections for gas connections.
We supply these pressure/gas leak detectors for gas pipe leakage detection in the USA, UK, Germany, France, Netherlands, Spain, Switzerland, Sweden, and other European countries. Also, we supply these for measuring radiator temperature in the Middle East and other Asian countries including India, Pakistan, Afghanistan, Bangladesh, Singapore, etc.
Our African offices supply these pressure/gas leak detectors for pressure measurement of water pipes across all African countries covering South Africa, Kenya, Nigeria, Tanzania, Rwanda, Djibouti, Morocco, Ghana, Ethiopia, Uganda, Morocco, Tunisia, Cameroon, Mauritius, Gabon, Seychelles, etc.
Our Middle East offices supply these pressure/gas leak detectors for testing leakage of gas pipes in boiler rooms in the United Arab Emirates, Kingdom of Saudi Arabia, Qatar, Oman, Kuwait, Egypt, Lebanon, Bahrain, Libya, Iraq, Erbil, Jordan, etc.
More from this Category
300- Flue Gas Analyzer5,148.21 USD

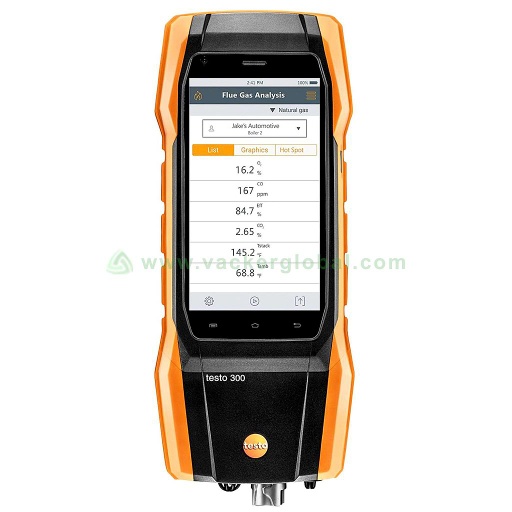

300- Flue Gas Analyzer(O2, CO up to 4000ppm),3,063.60 USD

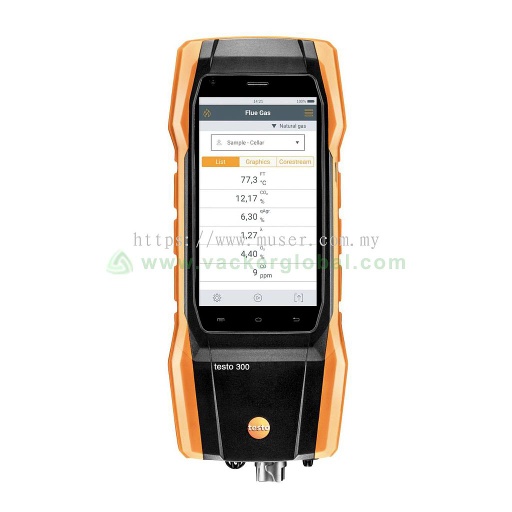

300- Longlife AnalyzerFlue Gas Analyzer (O2, CO up to 4,000 ppm, NO - can be Retrofitted)4,411.97 USD

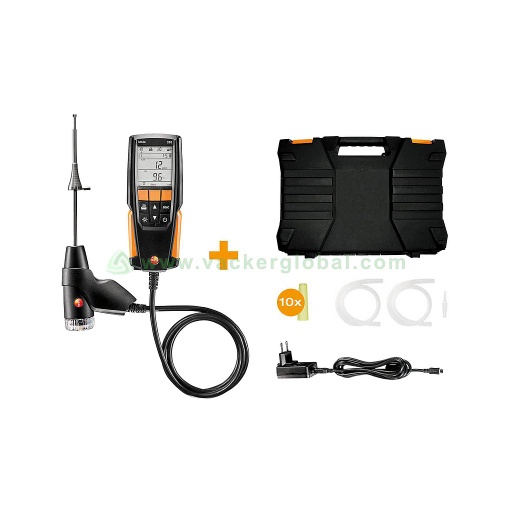

310 Entry-level Combustion Analyzer1,313.50 USD

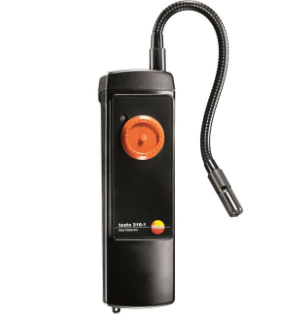

316-1 Gas Leak Detector525.80 USD

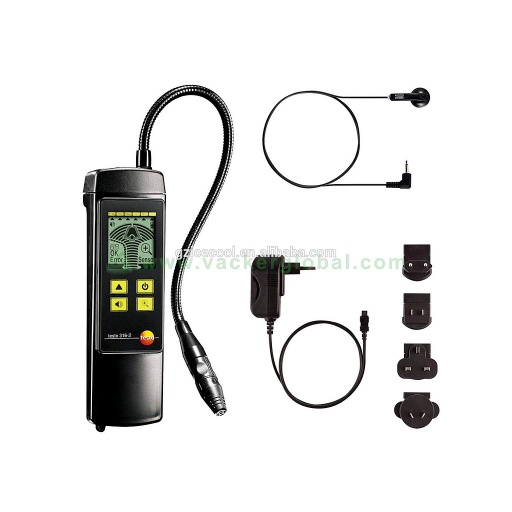

316-2 Multiple gas leak detector406.00 USD

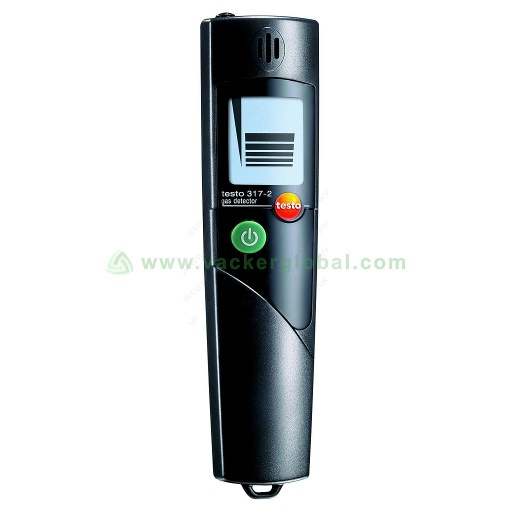

317-2 Gas Leak Detector342.24 USD

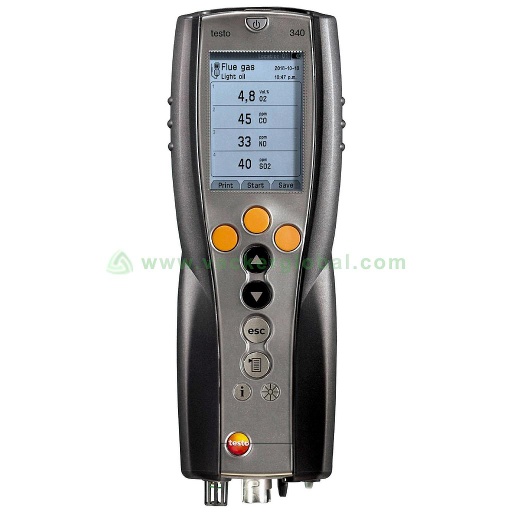

340 Flue gas analyzer for industry emission measurement3,366.67 USD

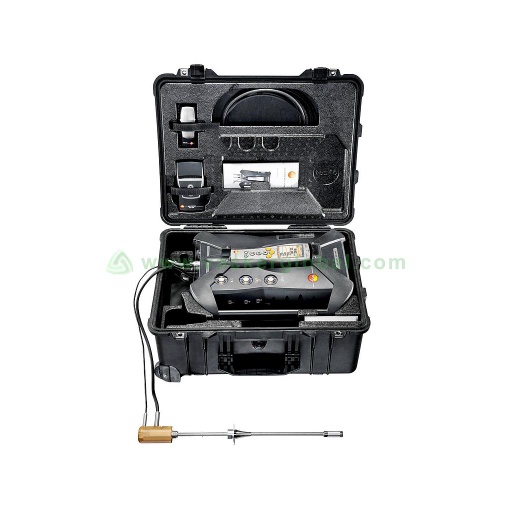

350 MARITIME Exhaust Gas Analyzer44,507.20 USD
Carbon monoxide detector-transmitter300.22 USD
Chlorine Detector-Transmitter E2638-CL2753.39 USD
Combustible Gas Detector-Transmitter (LPG) E2638-LEL-LPG359.97 USD
Combustible Gases Detector263.05 USD
CO-NO2 Transmitter571.26 USD
Control and Monitoring Panel ( 8 Channel) For Fixed Gas Detectors3,802.69 USD
Ethylene C2H4 Transmitter With Display1,000.71 USD
Ethylene Detector-Transmitter E2608-C2H41,058.46 USD
Fixed Gas Detector-Hydrogen1,329.51 USD
Flameproof Combustible Gas Detector-Transmitter E2658-LEL-R-24VDC755.97 USD

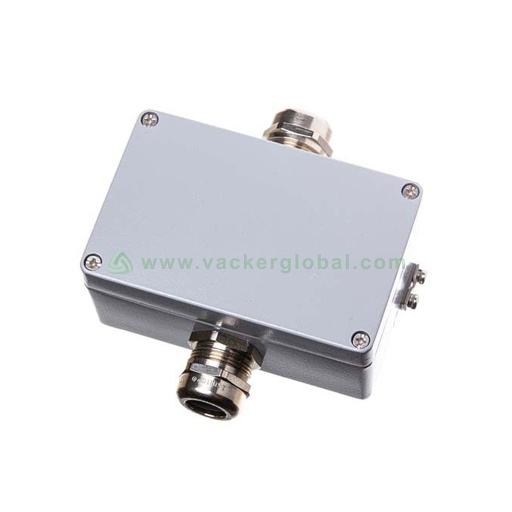

Flameproof Solvent Vapors Detector-Transmitter E2658-PID-2001,807.56 USD

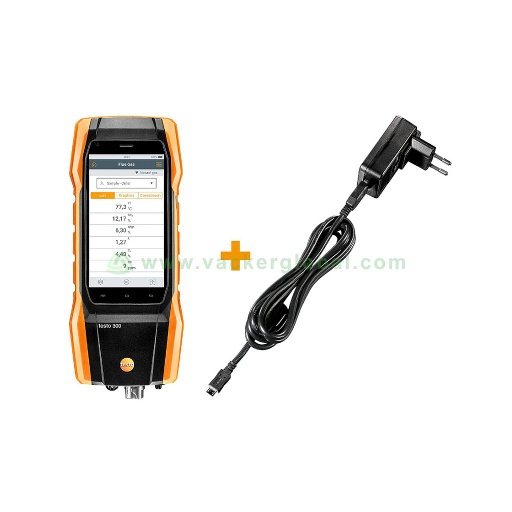

Flue Gas Analyzer(O2, CO H2- Compensated up to 8000ppm),3,674.88 USD

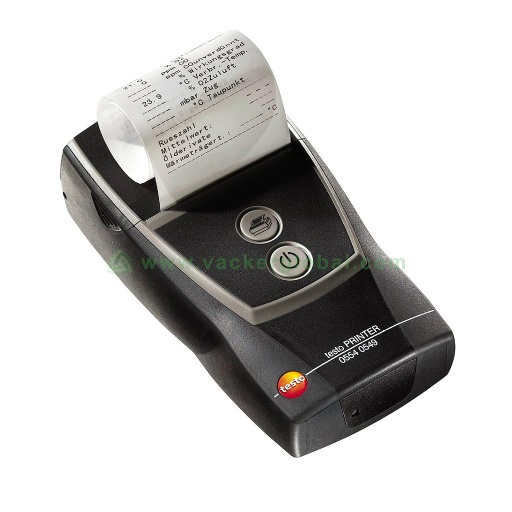

Flue gas analyzer Testo 310 set with printer930.01 USD
Gas Detector857.75 USD
GAS DETECTOR DOMESTIC52.90 USD
Gas Leak detector1,881.33 USD

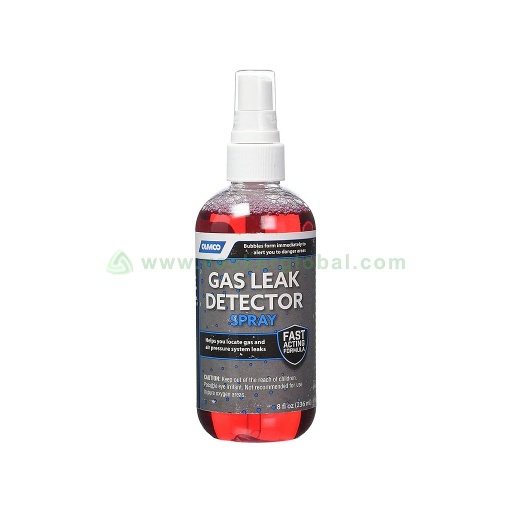

Gas Leak Detector with Sprayer Camco 103247.15 USD
Gas Sampling Hose with Spindle (Plummet) for RX-8000580.41 USD
GT-07 with sounder flasher600.42 USD

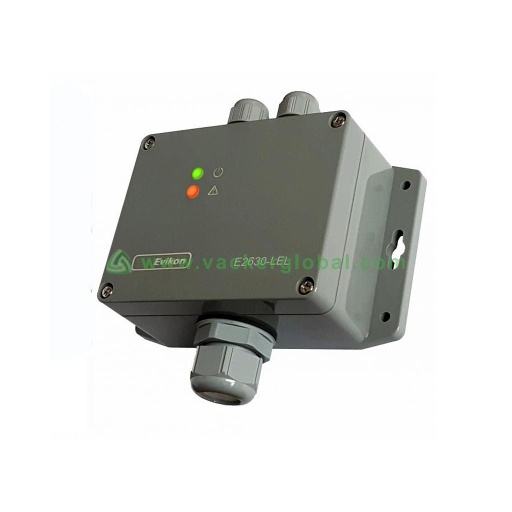

Hydrogen Combustible Gases Detector-Transmitter E2638-LEL457.46 USD

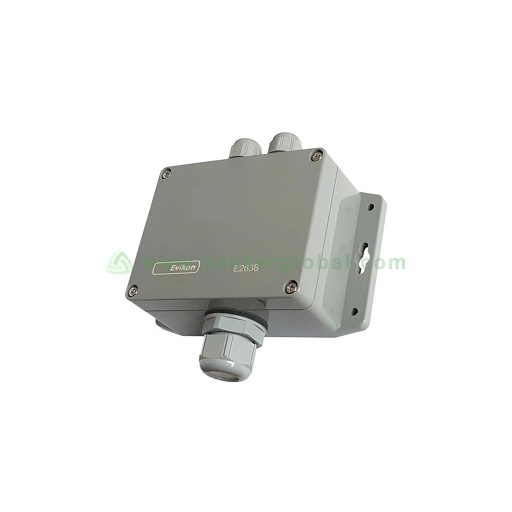

Nitric Oxide Detector-Transmitter (E2638-NO)523.80 USD
Nitrogen Dioxide Detector-Transmitter557.54 USD
Nitrogen Dioxide Detector-Transmitter E2638-NO2-R532.95 USD
O2 Digital Monitoring System3,059.31 USD
Opera 6000 Series600.42 USD
Opera 6004-A Ammonia (NH3) Gas Detector932.09 USD
OX-600 Oxygen Monitor-(Indoor)1,481.05 USD
Ozone Detector-Transmitter E2608-O3814.86 USD

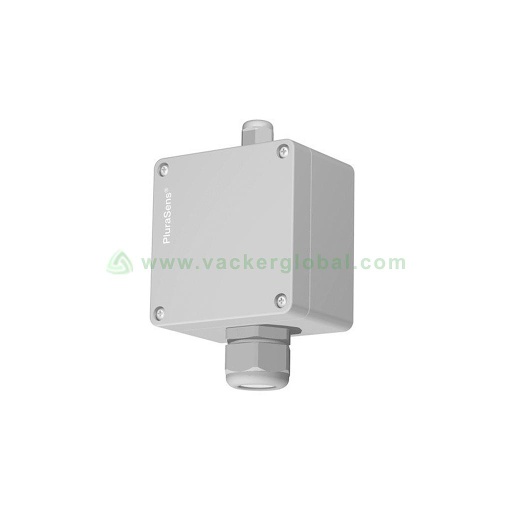

Ozone Leakage Gas Detector E2618-O3759.11 USD
Ozone Leakage Gas Detector E2618-O3 (0..50 ppm)777.13 USD
Pro-OX 100 handheld digital oxygen monitor kits1,092.20 USD

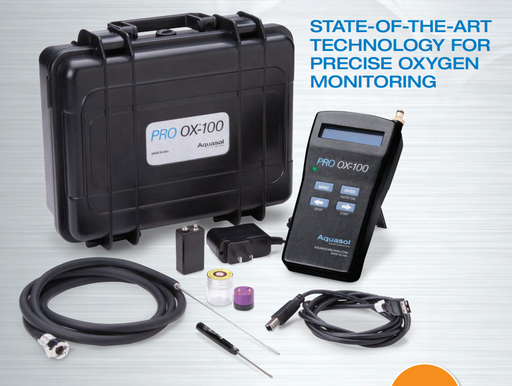

PRO OX-100 Oxygen Monitor & Accessories Kit1,858.46 USD
Refrigerants Detector-Transmitter328.81 USD
RGDGP5MP10SE GAS DETECTOR DOMESTIC50.03 USD
RX-8000(Iso- butane)2,521.79 USD
Sampling Hose with Connector for GX-8000300.22 USD
SD-1 GP (Diffusion Type) LEL Detector1,320.93 USD
Solvent Vapors Detector-Transmitter E2638-VOC369.12 USD
SP-220 Type SC Natural Gas Leak Detector1,921.36 USD
Sulfur Dioxide Detector E2608-SO2834.88 USD
S VALVE TCN NC AUTO ALUM203.00 USD

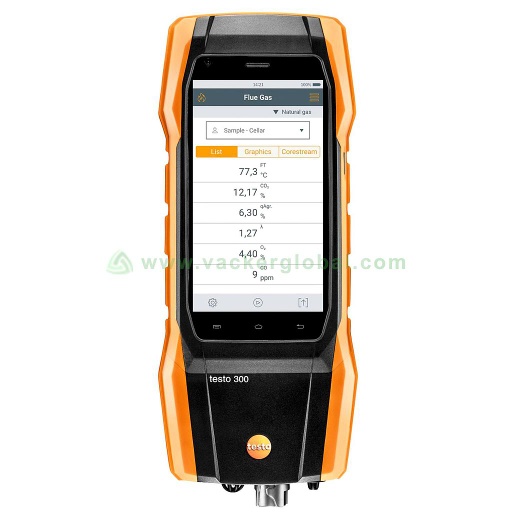

Testo 300 Longlife - Flue gas analyzer1,579.12 USD

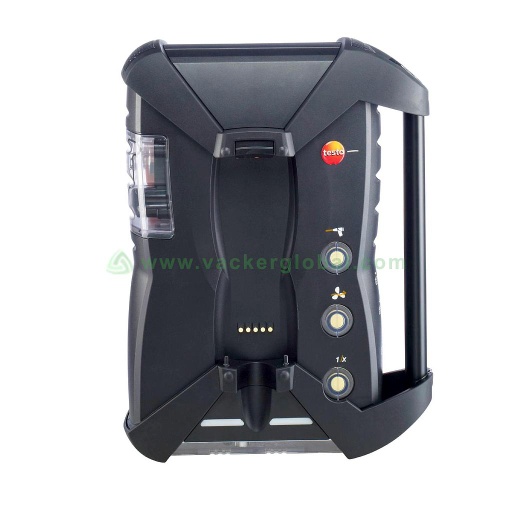

Testo-350 Analysis Box for exhaust gas analysis systems1,555.03 USD

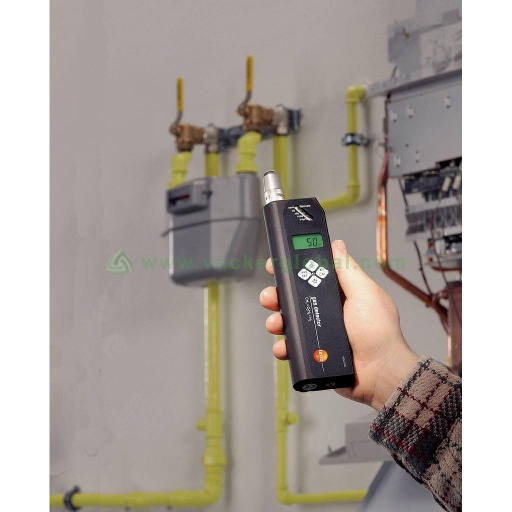

Testo Gas Detector1,374.41 USD
