300- Flue Gas Analyzer

5,147.36 USD 5,147.36 USD 5147.36 USD

18,006.00 AED

300- Flue Gas Analyzer

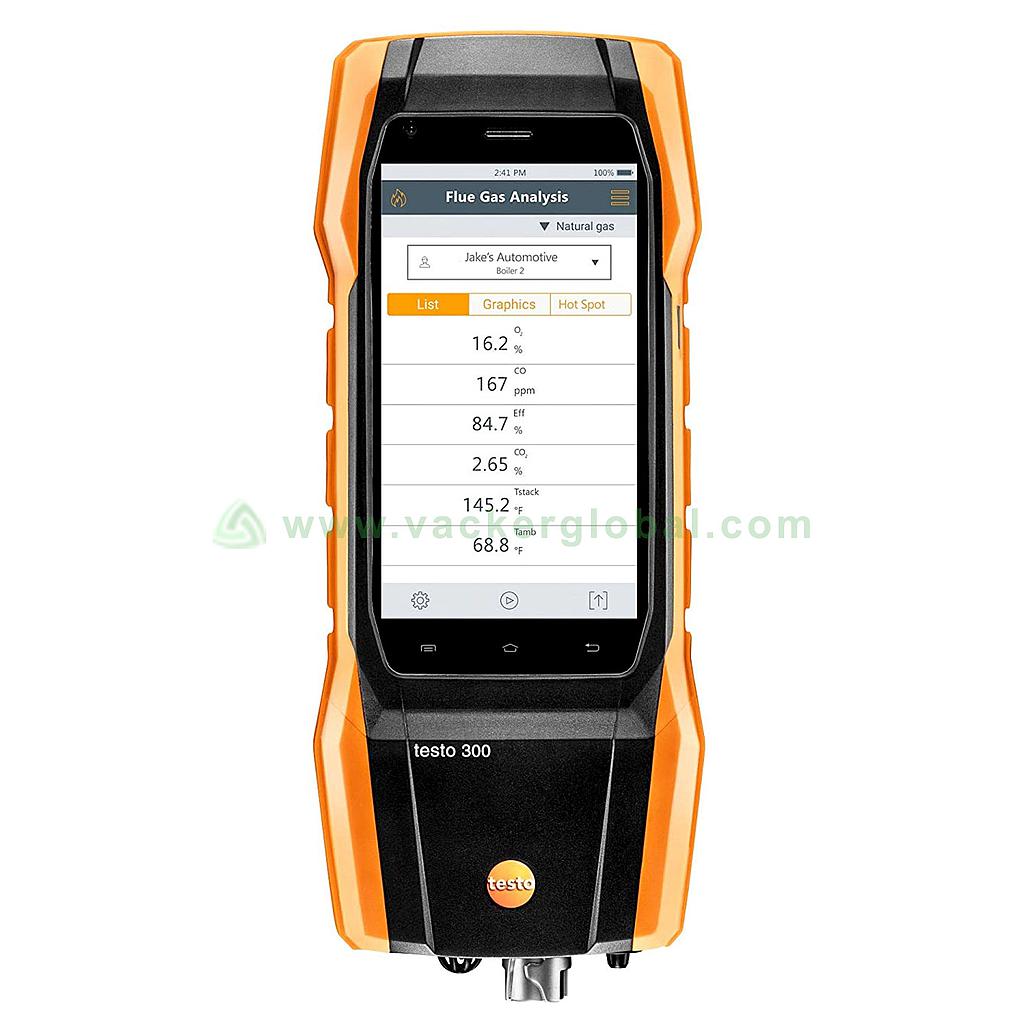

Flue gas analyzer, model no [VAC-300]
Operating humidity: 15 to 90%RH non-condensing
Storage temperature : -20 to +50 degree Celsius
Charging temperature : 0 to +40 degree Celsius.
Protection Class: IP 40

Days
Hours
Mins
Secs
1

VSKU: 1014000045

5,147.36 USD 5,147.36 USD 5147.36 USD

18,006.00 AED

    This combination does not exist.


    Add to Cart Buy Now

    Category:

  • Gas Detector

  • Flue gas analyzer for the measurement of flue gases

    Flue gas analyzer for measurement of flue gases, model no. VAC 300 is used for the measurement of flue gases, draught, pressure, ambient CO and differential temperature. It has high-quality sensors, intuitive operation with smart-touch technology and smart features, such as efficient documentation and e-mailing of reports. It ha O2 sensor and CO sensor up to 15,000 ppm and it also has an integrated fresh-air dilutor. It has 5 years of Manufacturer’s warranty. It has high-quality sensor technology with up to 6 years’ service life.

    Applications

    1. It is used for the measurement of flue gases.

    2. It is used for the measurement of draught.

    3. It is used for the measurement of pressure.

    4. It is used for the measurement of ambient CO.

    5. It is used for the measurement of differential temperature.

    6. It can be operated easily via smart-touch.

    7. It is an ideal instrument for the measurements involving heating systems.

    8. It has NO sensors which can be retrofitted.

    9. It can be used for intensive daily use as it has high-quality Long-life sensors for O2 and CO with a service life up to 6 years.

    10. It saves measurement reports directly in the instrument and will be available always.

    11. It gives the measurement results very fast.

    Features

    1. It has a smart-touch display.

    2. It has a large 5 inch HD display.

    3. It has an integrated Bluetooth interface which can be used for an immediate printout of the measuring value.

    4. It has 10 hours of rechargeable battery life.

    5. It has integrated extra-strong magnets for easy fixing during the measuring process.

    6. It e-mails the measurement reports directly to the office or the customers with the help of WLAN.

    7. It has an excellent resolution.

    8. It has long battery life.

    9. It has an easy configuration.

    10. It has a wide measurement range.

    11. It has precise reading.

    Specifications

    1. It has a measuring range of 0 to 21 vol% for the measurement of O2.

    2. It has an accuracy of +/- 0.2vol% and resolution of 0.1vol % for the measurement of O2.

    3. It has a measuring range of 0 to 4,000 ppm for the measurement of CO without H2 compensation and a measuring range of 0 to 8,000 ppm with H2 compensation.

    4. It has a resolution of 1 ppm for the measurement of CO.

    5. It has a measuring range of 0 to 30,000 ppm without H2 compensation and dilution and a measuring range of 0 to 15,000 ppm with H2 compensation and dilution.

    6. It has a measuring range of 0 to 3,000 ppm for the measurement of NO and an accuracy of 1 ppm.

    7. It has Efficiency testing (Eta) of measuring range 0 to 120% and an accuracy of 0.1%.

    8. It has the measuring range of -100 to +200 hPa for the measurement of pressure with an accuracy of 0.01 hPa.

    9. It has a measuring range of -40 to +1,200 degree Celsius for the measurement of temperature with an accuracy of 0.10C (-40 to +999.90C) and 10C (remaining measuring range).

    10. The ambient CO measurement with internal/flue gas probe has a measuring range of 0 to 2,000 ppm with an accuracy of 1 ppm.

    11. The ambient CO measurement with external CO probe has a measuring range of 0 to 500 ppm with an accuracy of 1 ppm.

    12. It is TUV-tested according to 1st German Federal Immission Control Ordinance (BlmSchV) EN 50379, Parts 1-3.

    13. It has a storage temperature of -20 to +500C and an operating temperature of -5 to +450C.

    14. It has a charging temperature of 0 to +450C.

    15. It has a humidity application range of 15 to 90%RH without condensing.

    16. It has a rechargeable battery and can also use the mains supply with the help of USB.

    17. It has a rechargeable battery life of 10 hours.

    18. It has IP 40 protection class.

    19. It has a memory capacity of 1 million measured values.

    20. It has a 5.0” touch display.

    21. It weighs 800g (approx.).

    22. It has dimensions 244 (including probe connection) x 59 x 98 mm

    We supply Flue gas analyzer for measurement of flue gases, model no. VAC-300 for measurement of flue gases, draught, pressure, ambient CO and differential temperature in the USA, UK, Germany, France, Netherlands, Spain, Switzerland, Sweden and other European countries. Also, we supply these Flue gas analyzer for the measurement of flue gases, model no. VAC-300 for measurement of flue gases, draught, pressure, ambient CO and differential temperature in the Middle East and other Asian countries including India, Pakistan, Afghanistan, Bangladesh, Singapore etc.

    Our African offices supply these Flue gas analyzer for measurement of flue gases, model no. VAC-300 for measurement of flue gases, draught, pressure, ambient CO and differential temperature across all African countries covering South Africa, Kenya, Nigeria, Tanzania, Rwanda, Djibouti, Morocco, Ghana, Ethiopia, Uganda, Morocco, Tunisia, Cameroon, Mauritius, Gabon, Seychelles etc.

    Our Middle East offices supply these Flue gas analyzer for measurement of flue gases, model no. VAC-300 for measurement of flue gases, draught, pressure, ambient CO and differential temperature in the United Arab Emirates, Kingdom of Saudi Arabia, Qatar, Oman, Kuwait, Egypt, Lebanon, Bahrain, Libya, Iraq, Erbil, Jordan etc.
