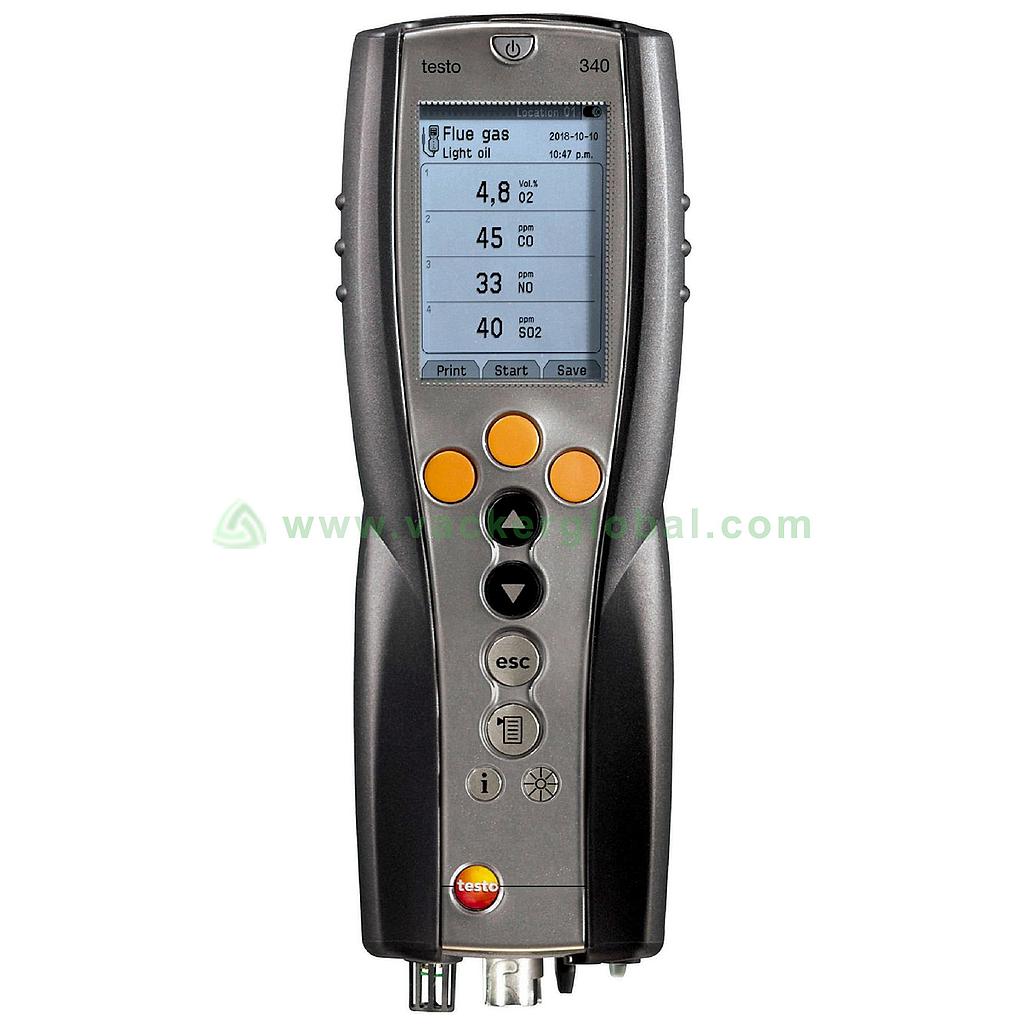

340 Flue gas analyzer for industry emission measurement

3,366.11 USD 3,366.11 USD 3366.11 USD

11,775.00 AED

340 Flue gas analyzer for industry emission measurement

Flue gas analyzer for industry emission measurement, model no
[VAC-340]
Operating temperature : -5 to +50 0 C
Storage temperature : -20 to +50 0 C
Protection class: IP 40

Days
Hours
Mins
Secs
1

VSKU: 1014000011

3,366.11 USD 3,366.11 USD 3366.11 USD

11,775.00 AED

    This combination does not exist.


    Add to Cart Buy Now

    Category:

  • Gas Detector

                          1. Flue gas analyzer for industry emission measurement

                            Flue gas analyzer for industry emission VAC-340 is used for the analysis of industrial emission and for carrying out checks on firing plants and energy production systems. It can measure CO, CO low ,NO, NO low , NO 2 and SO 2 . It comes with a standard-fitted O 2 sensor. It has an extended measurement ranges which enable us to carry out measurements even when the gases are at higher concentration. It has precalibrated gas sensors which help us to change the sensors quickly and very easily. It has an integrated pressure difference and air flow measurements for mass flow calculations.

                            Applications

                            1. It is used to measure CO and CO low .
                            2. It is used to measure NO and NO low .
                            3. It is used for checking the emissions in industries.
                            4. It is used for carrying out checks on firing plants and energy production systems.
                            5. It is used for the analysis of the gas atmosphere.
                            6. It is ideal for measurement at higher concentrations.
                            7. It is used for the thermal manufacturing processes.
                            8. It is used for the setting and optimization of the combustion system.
                            9. It is used for service measurement on industrial engines.
                            10. It is used for the service measurements on industrial burners.
                            11. it saves our time as the instrument has helpful pre-settings.
                            12. It is always ready for use.
                            13. It has a robust housing which protects the measuring instrument from knocks.

                            Features

                             1. It can be fitted up to 4 4 different gas sensors.

                            2. It has precalibrated gas sensors.

                            3. It has a very extended measuring range.

                            4. It has a high resolution.

                            5. It requires only very less reaction time.

                            6. The measurements are very accurate.

                            7. It has a good memory capacity.

                            8. It uses a Bluetooth interface.

                            9. It has a very good display size.

                            10. It has a good battery life(>6 hours).

                            Specifications

                            1. It has a measuring range of 0 to 25Vol.% and resolution of 0.01Vol.% for the

                            measurement of O 2 .

                            2. It has an adjustment time <20 sec for the measurement of O­ 2 .

                            3. It has a measuring range of 0 to 10,000 ppm for the measurement of H 2

                            compensated CO and a measuring range of 0 to 500 ppm for CO low measurement.

                            4. It has a resolution of 1 ppm and 0.1 ppm for the measurement of CO and CO low .

                            5. It has an adjustment time <40 sec for the measurement of CO.

                            6. It has a measuring range of 0 to 4,000 ppm and 0 to 300 ppm for the

                            measurement of NO and NO low with a resolution of 1 ppm and 0.1 ppm respectively.

                            7. It has an adjustment time <30 sec and <40 sec for the measurement of NO and

                            NO low .

                            8. It has a measuring range of 0 to 5,000 ppm for the measurement of SO 2­ with a

                            resolution of 1 ppm and an adjustment time <40 sec.

                            9. It has a measurement range of -40 to +1,200 0 C for the measurement of

                            temperature with a resolution of 0.1 0 C.

                            10. It has a measurement range of -40 to +40 hPa for the measurement of Draught

                            with a resolution of 0.01 hPa.

                            11. It has a measurement range of 600 to +1,150 hPa for the measurement of

                            absolute pressure measurement with a resolution of 1 hPa.

                            12. It has a weight of 960g.

                            13. It has dimensions 283 x 103 x 65 mm.

                            14. It has an operating temperature of -5 to +50 0 C.

                            15. It uses TPE PC as product-/housing material.

                            16. It has IP 40 protection class.

                            17. It has a battery life of >6h.

                            18. It has a graphic type of display.

                            19. It has a display size of 160 x 240 pixels.

                            20. It has a maximum memory of 100 folders and can store a maximum of 10 sites

                            per folder and a maximum of 200 logs per site.

                            21. It requires a storage temperature of -20 to +50 0 C.

                            We supply Flue gas analyzer for industry emission measurement model no. VAC 340 for checking the emissions in industries and carrying out checks on firing plants and energy production system in the USA, UK, Germany, France, Netherlands, Spain, Switzerland, Sweden and other European countries. Also, we supply these Flue gas analyzer for industry emission measurement model no. VAC 340 for checking the emissions in industries and carrying out checks on firing plants and energy production system in the Middle East and other Asian countries including India, Pakistan, Afghanistan, Bangladesh, Singapore etc.

                            Our African offices supply these Flue gas analyzer for industry emission measurement model no. VAC 340 for checking the emissions in industries and carrying out checks on firing plants and energy production system across all African countries covering South Africa, Kenya, Nigeria, Tanzania, Rwanda, Djibouti, Morocco, Ghana, Ethiopia, Uganda, Morocco, Tunisia, Cameroon, Mauritius, Gabon, Seychelles etc.

                            Our Middle East offices supply these Flue gas analyzer for industry emission measurement model no. VAC 340 for checking the emissions in industries and carrying out checks on firing plants and energy production system in the United Arab Emirates, Kingdom of Saudi Arabia, Qatar, Oman, Kuwait, Egypt, Lebanon, Bahrain, Libya, Iraq, Erbil, Jordan etc.
