300- Flue Gas Analyzer(O2, CO up to 4000ppm),

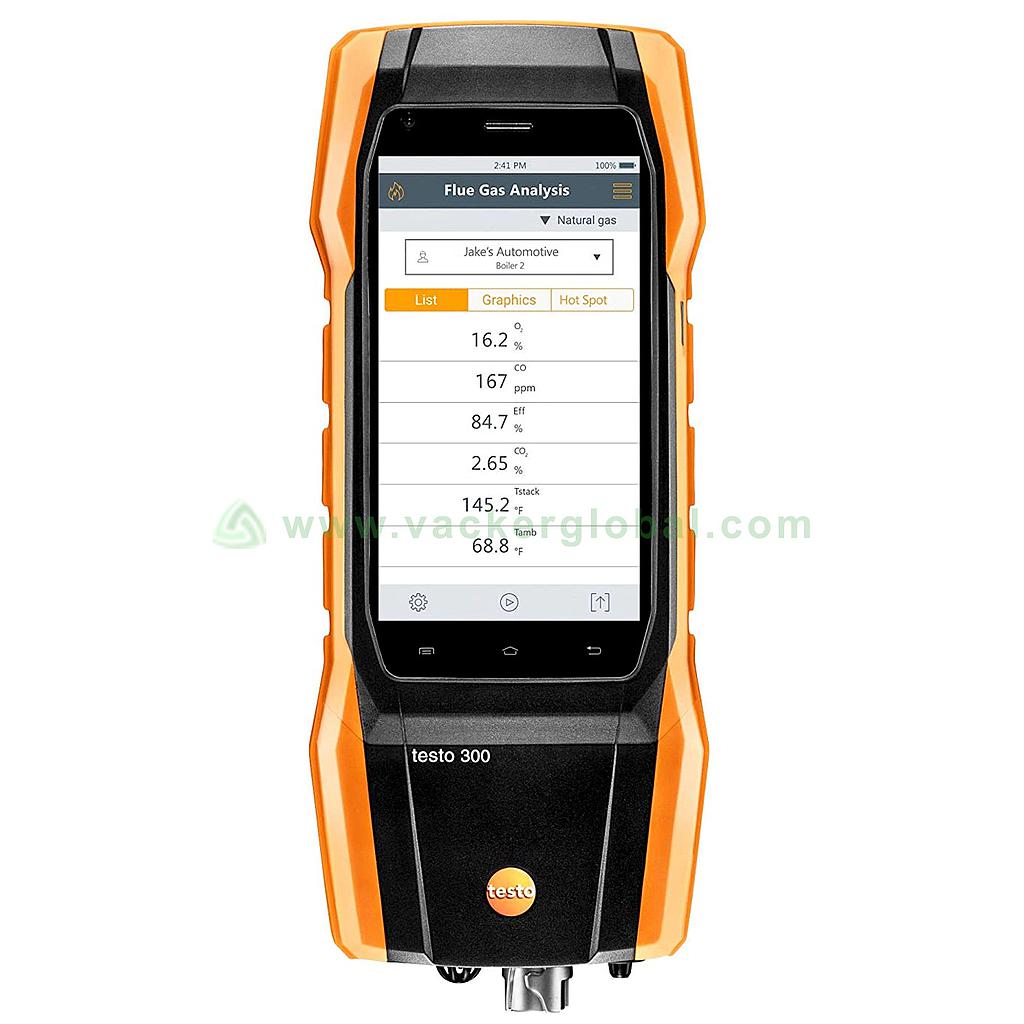

Flue gas analyzer(O2, CO up to 4000ppm), Model no. VAC- 300
Temperature measuring range: -40 to +1200 °C.
Accuracy: ±0.5 °C
Battery: lithium-ion battery
Battery life: 10 hr
Flue gas analyzer to measure CO, O2 concentrations
The flue gas analzer us integrated with temperature, pressure and gas sensor to measure temperature, had flow pressure and detect CO and O2 concentrations. The device has a differential temperature measurement function and is ideal for monitoring heating systems. The gas analyser can detect up to a value of 4000 ppm. It is provided with a displayinterface similar to smartphones. The report is generated and emailed to the recipient on site.
The flue gas analyser is ideal to monitor and measure heating systems.
It can measure flue gas, draught, pressure, ambient CO and differential temperature.
It can measure gas flow pressure.
Gas pipes are tested with the device.
The device facilitates differential temperature measurement (flow and return temperature on heating systems).
It can measure ambient CO concentrations.
It measures flue and draught on heating systems.
The flue gas analyser has fast-response.
The Smart-Touch display assures easy operation identical to a smartphone.
The O2 and CO sensor can measure up to 4,000 ppm.
It has a large 5 inch HD display.
All system measurements can be observed in a glance.
The report documentation is created and can be emailed directly.
The automatic sensor protection ensures a longer sensor life.
Integrated fine pressure
Versatile probes are provided permitting fast probe changes.
The additional probes and accessories for measuring gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement are optional with the device package.
The PDF reports can be directly stored in the instrument is always readily available.
The device has a significant function which enables the customer to sign the reports directly on the instrument.
The reports are directly sent to the office e-mail via WLAN.
It has a large 5-inch HD display.
The interface function assists direct data transfer of measurement reports to industry/customer-specific software.
The devices ready to use straight away.
Integrated Bluetooth® interface is provided with the device.
With the aid of an appropriate printer, immediate printout of measured values are obtained.
It has a 10-hour rechargeable battery life duration.
Extra-strong magnets are used for easy fixing during the measuring process
4 strong rubber coated magnets are used for material friendly mounting.
The Operating humidity ranges from 15 to 90 %RH non-condensing.
The dimension of the instrument is 244 (including probe connection) x 98 x 59 mm.
The Operating temperature is -5 to +45 °C.
The storage temperature ranges from-20 to +50 °C.
The Charging temperature varies from0 to +45 °C.
It weighs approximately 800 g.
It has a class IP40 protection.
The product colour is available in black/orange.
It has a 5-inch touch screen HD display( 1280*720 pixels, IPS (160 k)).
It has a memory capacity for 1,000,000 measuring values.
The Storage battery is a Lithium-ion cell.
The battery serves up to a duration of 10 hours.
The instrument has a USB mains unit power supply with a rechargeable battery.
The guarantee of the Gas sensors (O₂, CO) is 24 months; Thermocouple is 12 months; rechargeable battery is12months.
The instrument is TÜV-tested abiding to the 1st German Federal Immission Control Ordinance (BImSchV) EN50379, Parts 1-3 authorization.
The TC Type K (NiCr-Ni) temperature measuring ranges from -40 to +1200 °C.
The accuracy of TC Type K (NiCr-Ni) temperature is ±0.5 °C (0.0 to +100.0 °C); ±0.5 % of mv (Remaining Range).
It has a TC Type K (NiCr-Ni) temperature resolution of 0.1 °C (-40 to +999.9 °C); 1 °C (Remaining Range).
The piezoresistive differential pressure has a measuring range of -100 to +200 hPa, ±0.5 hPa (0 to +50.0 hPa); ±1% of mv (+50.1 to +100.0 hPa); ±1.5 % of mv (+100.1 to +200 hPa) accuracy and 0.01 hPa resolution.
The Flue gas O₂ has a measuring range of 0 to 21 Vol.%, ±0.2 Vol.% accuracy and 0.1 Vol.% resolution.
The Flue gas CO (with H₂-compensation) has a measuring range of 0 to 4000 ppm, ±10 ppm or ±10 % of mv (0 to200 ppm); ±20 ppm or ±5 % of mv (201 to 2000 ppm); ±10 % of mv (2001 to 4000 ppm) accuracy and 1 ppmresolution.
The Piezoresistive differential pressure flue gas Draught has a measuring range of -9.99 to +40 hPa, ±0.005 hPa(0 to 0.1 hPa); ±0.02 hPa (0.1 to +3.00 hPa); ±1.5 % of mv (+3.01 to +40 hPa) accuracy and 0.001 hPa (0 to 0.1hPa); 0.01 hPa (Remaining Range) resolution
The degree of reflectivity of flue gas by calculated Eta has a measuring range of 0 to 120 % and 0.1% resolution.
The calculated flue gas loss ranges from 0 to 99.9 % and 0.1 % resolution.
The calculated Flue gas CO₂ (calculated from O₂) has a measuring range from 0 to maximum CO₂, ±0.2 Vol.%accuracy and 0.1 Vol.% resolution.
The ambient CO has a measuring range of 0 to 2000 ppm,±10 ppm (0 to 100 ppm); ±10 % of mv (101 to 2000ppm) accuracy and 1 ppm resolution.
The piezoresistive differential pressure (4 Pa measurement) has a measuring range of -50 to +50 Pa, ±0.3 Pa (< 10 Pa); ±3% of mv (Remaining Range) accuracy and 0.1 Pa resolution.
